Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

23 part groups · 2 illustrations

Illustrations

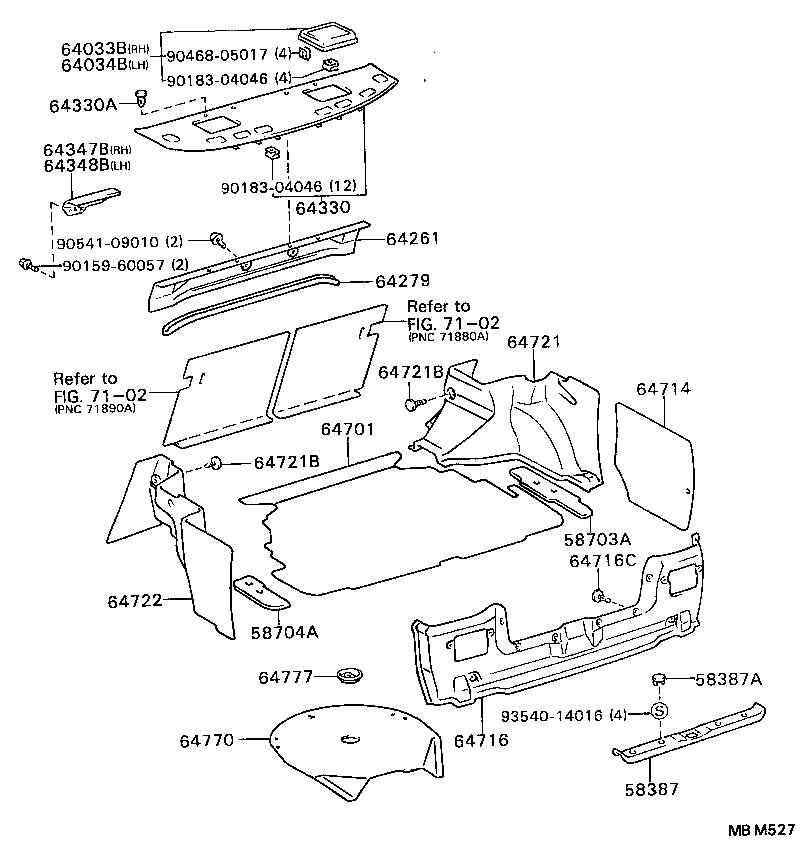

Figure MBL297 MBL297 1986-10 → — Figure MBM527 MBM527 1987-10 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58387A Plug, Hole(FOR REAR FLOOR FINISH PLATE)
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64261 Garnish, Room Partition
64271 Board, Room Partition, NO.1
64279 Protector, Room Partition
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64347B Bracket, Package Tray Reinforcement, RH
64348B Bracket, Package Tray Reinforcement, LH
64701 Mat Sub-assy, Luggage Compartment
64714 Cover, Luggage Compartment, RH
64716 Cover, Luggage Compartment, Rear Center
64716C Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64717A Cover, Luggage Compartment Trim, Front
64721 Cover, Luggage Compartment Trim, Inner RH
64721B Cover, Luggage Compartment Trim, NO.1
64722 Cover, Luggage Compartment Trim, Inner LH
64770 Cover Assy, Spare Wheel
64777 Clamp, Spare Wheel Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
