Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04

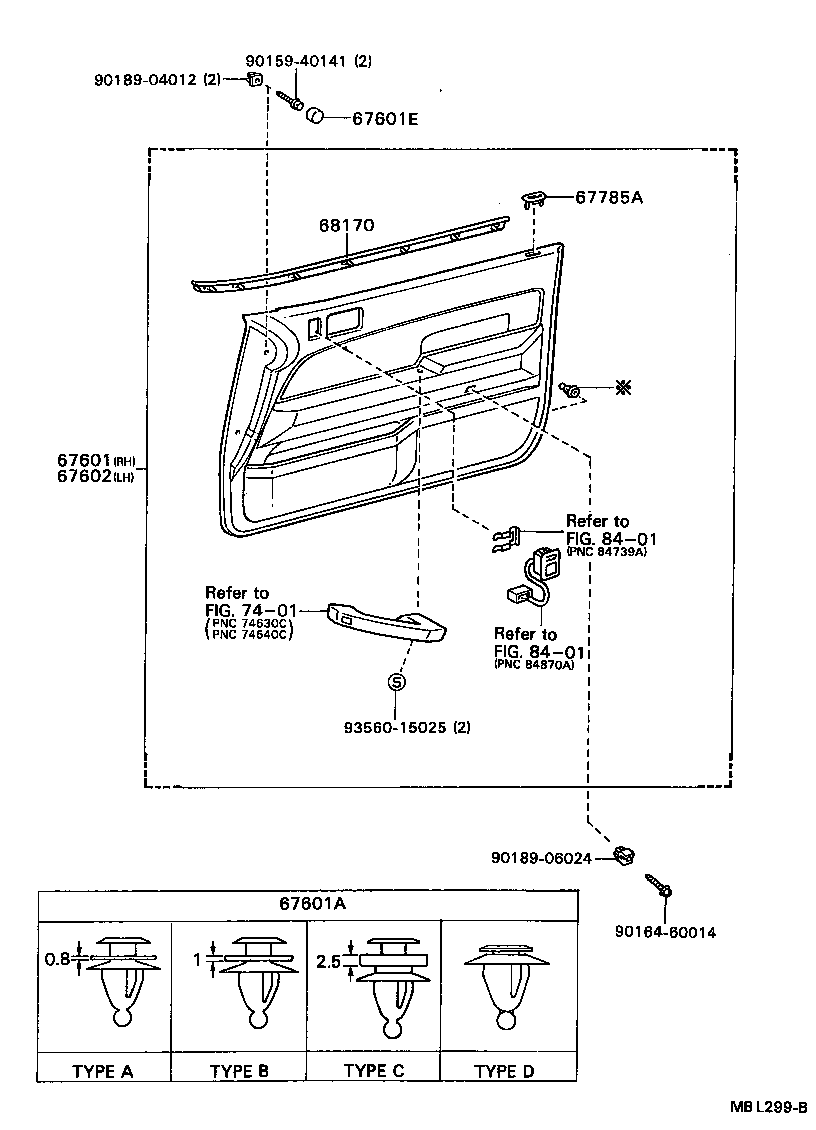

Front Door Panel & Glass

36 part groups · 2 illustrations

PNC	Description
67001	Panel Sub-assy, Front Door, RH
67001A	Cushion, Front Door Panel
67002	Panel Sub-assy, Front Door, LH
67111	Panel, Front Door, Outer RH
67112	Panel, Front Door, Outer LH
67401F	Frame Sub-assy, Front Door, Front Lower RH
67402F	Frame Sub-assy, Front Door, Front Lower LH
67407	Frame Sub-assy, Front Door, Rear Lower RH
67408	Frame Sub-assy, Front Door, Rear Lower LH
67491A	Garnish, Front Door Lower Frame Bracket, RH
67492A	Garnish, Front Door Lower Frame Bracket, LH
67495	Cover, Front Door Front Lower Frame, Upper
67499	Retainer, Front Door Lower Frame Bracket Garnish
67601	Board Sub-assy, Front Door Trim, RH
67601A	Retainer(FOR FRONT DOOR TRIM BOARD)
67601E	Cap(FOR FRONT DOOR TRIM BOARD)
67602	Board Sub-assy, Front Door Trim, LH
67785A	Holder, Door Locking Button Collar(FOR FRONT DOOR)
67811	Pad, Front Door Silencer
67831	Cover, Front Door Service Hole, RH
67832	Cover, Front Door Service Hole, LH
67855B	Protector, Front Door Panel, RH
67856B	Protector, Front Door Panel, LH
67861	Weatherstrip, Front Door, RH
67861A	Retainer(FOR FRONT DOOR WEATHERSTRIP)
67862	Weatherstrip, Front Door, LH
67863B	Weatherstrip, Front Door, NO.2 RH
67863D	Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864B	Weatherstrip, Front Door, NO.2 LH
68101	Glass Sub-assy, Front Door, RH
68102	Glass Sub-assy, Front Door, LH
68141	Run, Front Door Glass
68143	Run, Front Door Glass, Lower
68170	Weatherstrip Assy, Front Door Glass, Inner
68610	Check Assy, Front Door
68610A	Pin(FOR FRONT DOOR CHECK)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
