Toyota Camry
1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe
Discontinued model
Data version 1989-04
Switch & Relay & Computer
111 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 27790 | Relay Assy, Charge Lamp |
| 28371 | Relay, Ignition, NO.1 |
| 28521 | Timer, Preheating |
| 28529 | Bracket, Preheating Timer, NO.1 |

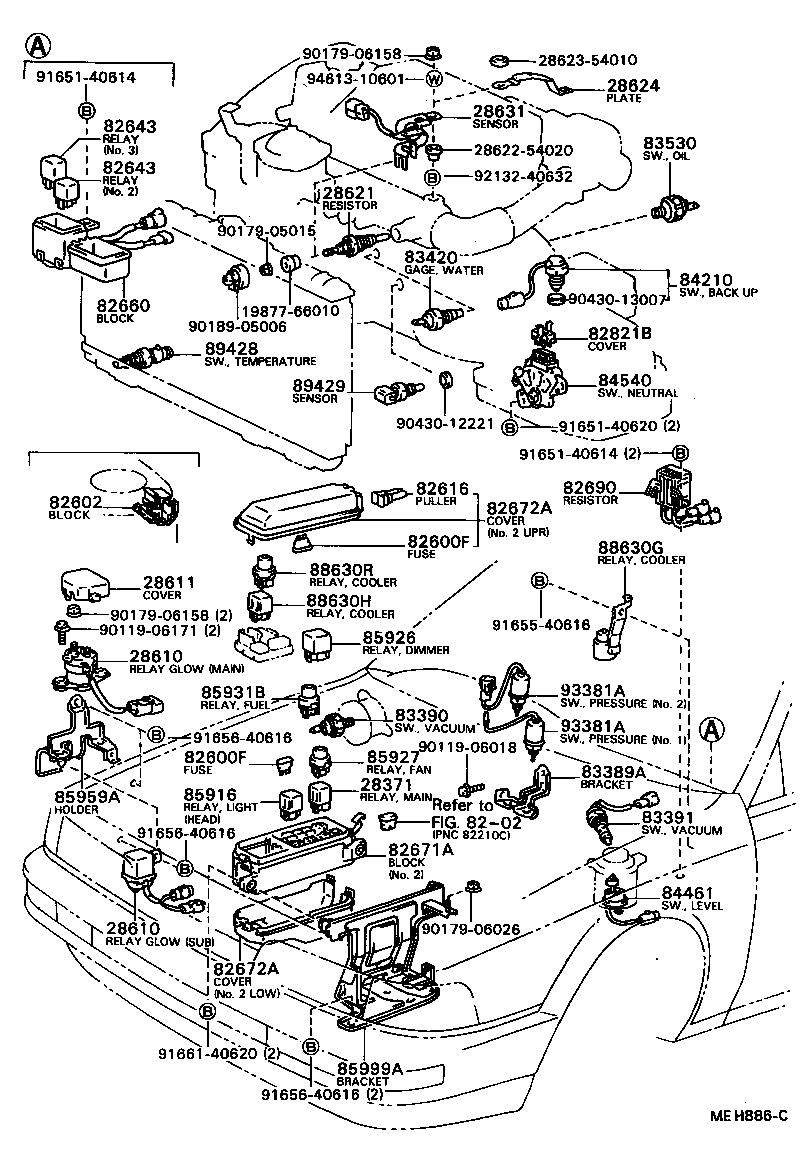

| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28611 | Cover, Glow Plug Relay |
| 28621 | Resistor, Glow Plug |
| 28624 | Plate, Current Sensor |
| 28631 | Sensor, Glow Plug Current |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82602 | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |

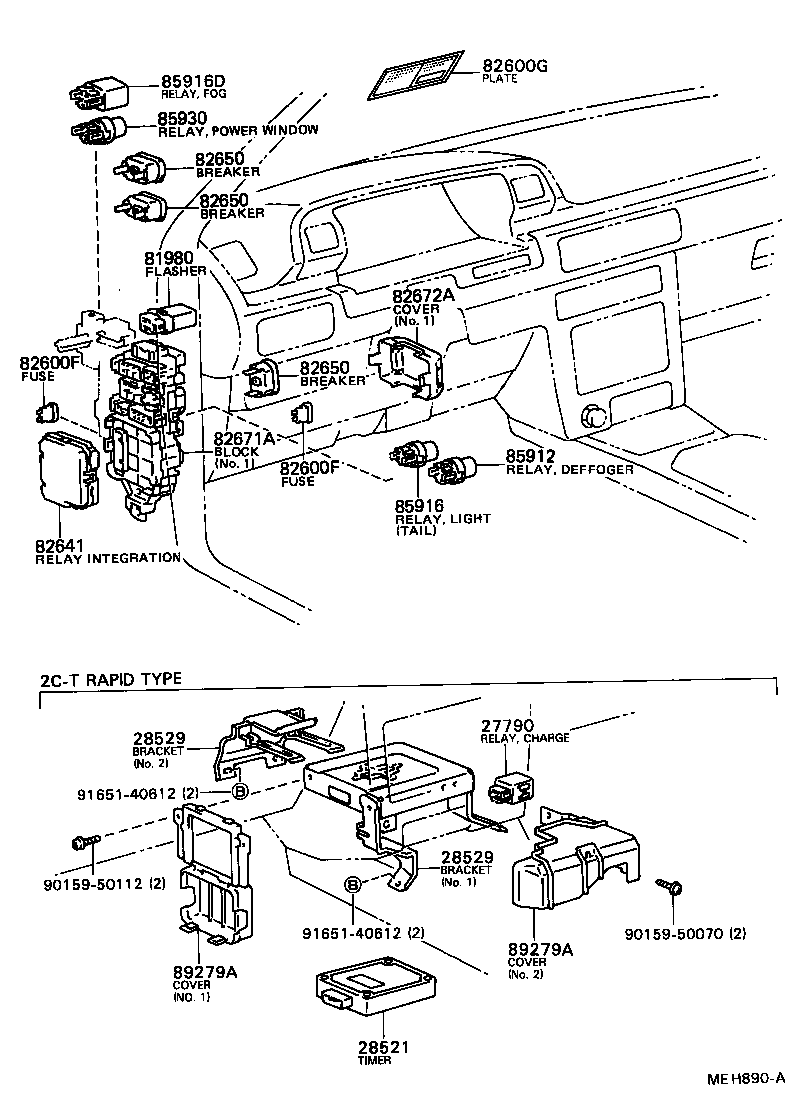

| 82641 | Relay, Integration NO.1 |

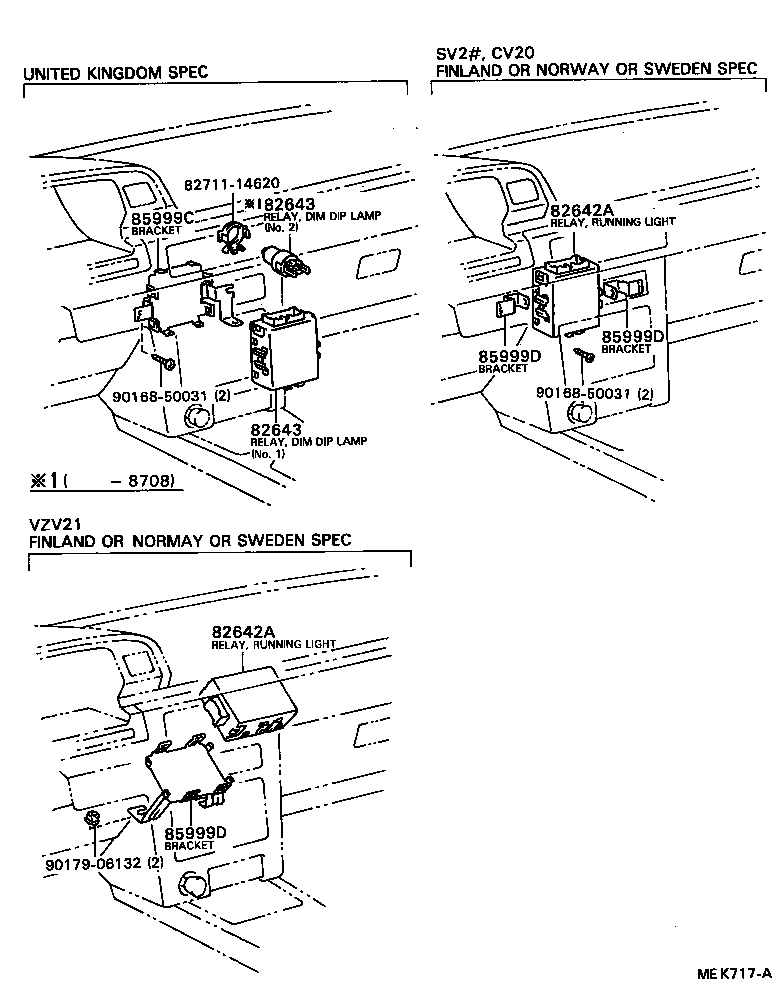

| 82642A | Relay, Running Light |
| 82643 | Relay, Dim-dip Lamp |
| 82650 | Breaker Assy, Wiring Circuit, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82690 | Resistor Assy, Dim Dip Lamp |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83381A | Switch, Pressure |
| 83389A | Bracket, Pressure Switch |
| 83390 | Switch Assy, Vacuum Warning |
| 83391 | Switch, Vacuum |
| 83399 | Bracket, Vacuum Switch |

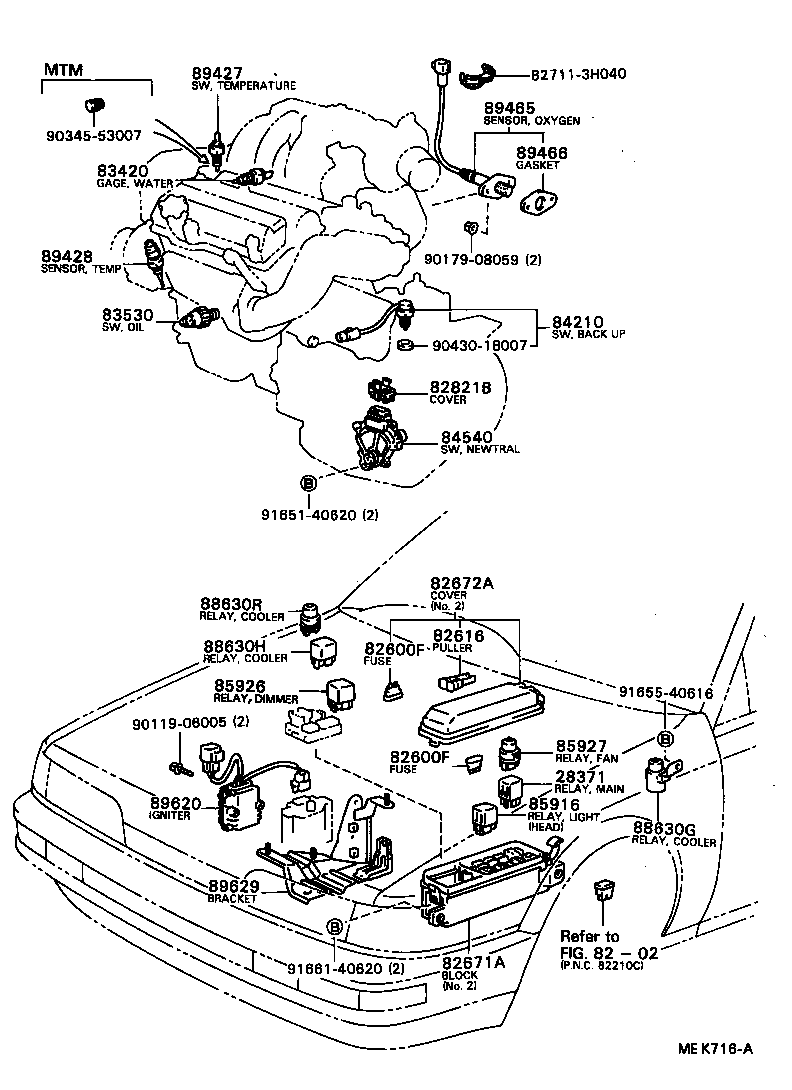

| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84119A | Bolt OR Nut, Rheostat Control Set |
| 84140 | Switch Assy, Headlamp Dimmer |

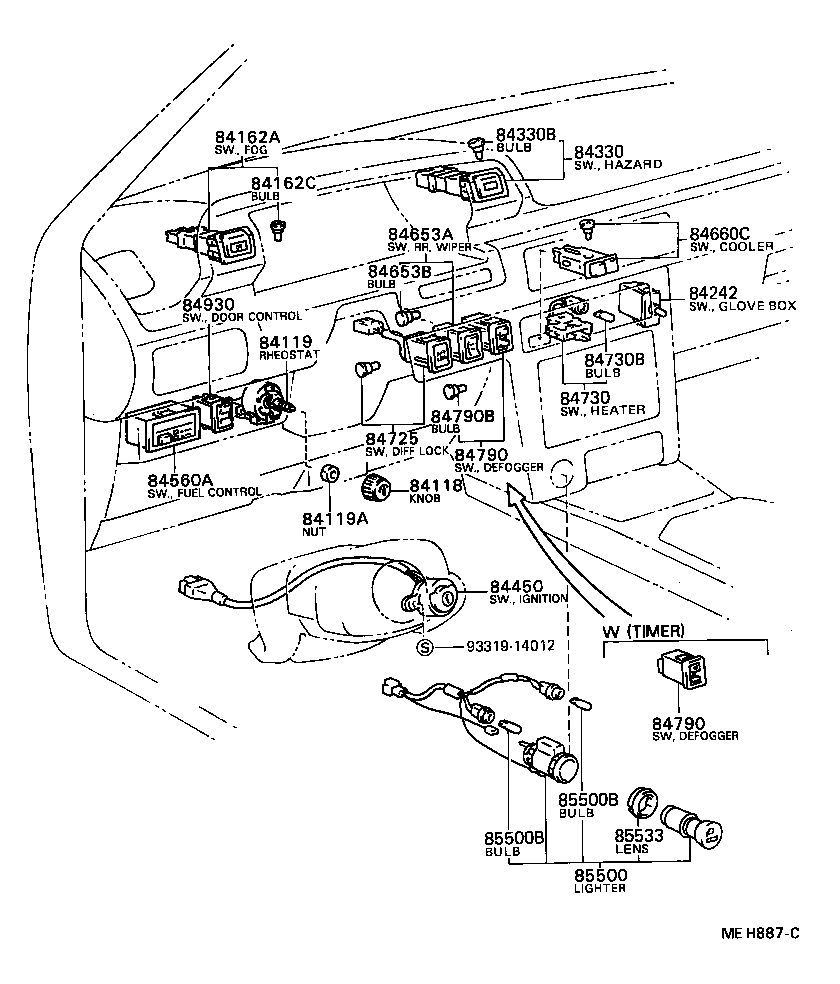

| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84560A | Switch Assy, Fuel Control |
| 84650 | Switch Assy, Windshield Wiper |
| 84653A | Switch, Rear Wiper |
| 84653B | Bulb, Rear Wiper Switch |
| 84660C | Switch, Cooler |
| 84725 | Switch, Center Differential Lock |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84739A | Retainer, Switch |
| 84742 | Switch, Slide Roof Limit |
| 84751 | Switch, Seat Heater |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |

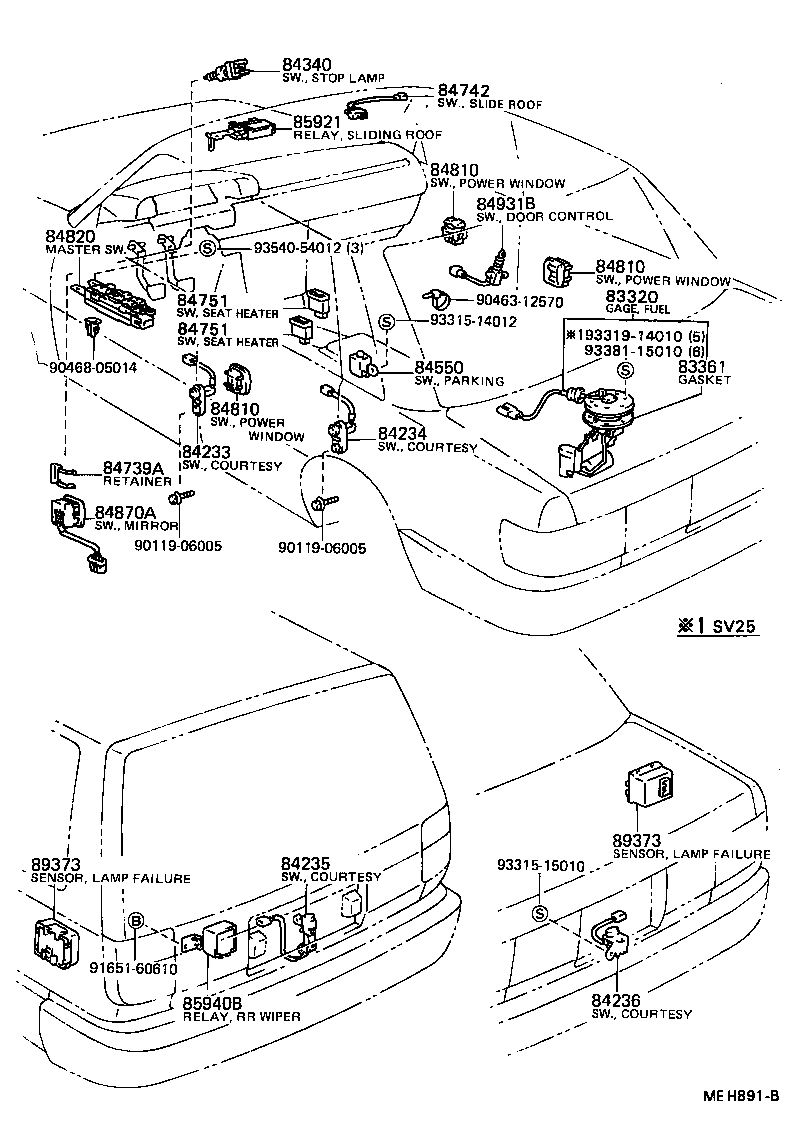

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84931B | Switch, Door Control |
| 85440A | Solenoid Assy, Four Wheel Drive Control |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85916 | Relay, Light Control |
| 85916D | Relay, Fog Lamp |
| 85921 | Relay, Sliding Roof Control |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85930 | Relay Assy, Power Window |
| 85931B | Relay, Fuel Heater |
| 85940B | Relay Assy, Rear Wiper |
| 85959A | Holder, Relay |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 85999C | Bracket, Relay, NO.3 |
| 85999D | Bracket, Relay, NO.4 |
| 85999H | Bracket, Relay |
| 86530 | Relay Assy, Horn |
| 88630G | Relay Assy, Cooler |
| 88630H | Relay Assy, Cooler |
| 88630R | Relay Assy, Cooler, NO.3 |
| 89279A | Cover, Computer |
| 89373 | Sensor, Lamp Failure Indicator |
| 89427 | Switch, Temperature Detect |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89429 | Sensor, Oil Temperature |
| 89437 | Cover, Sensor |
| 89439 | Bracket, Sensor |

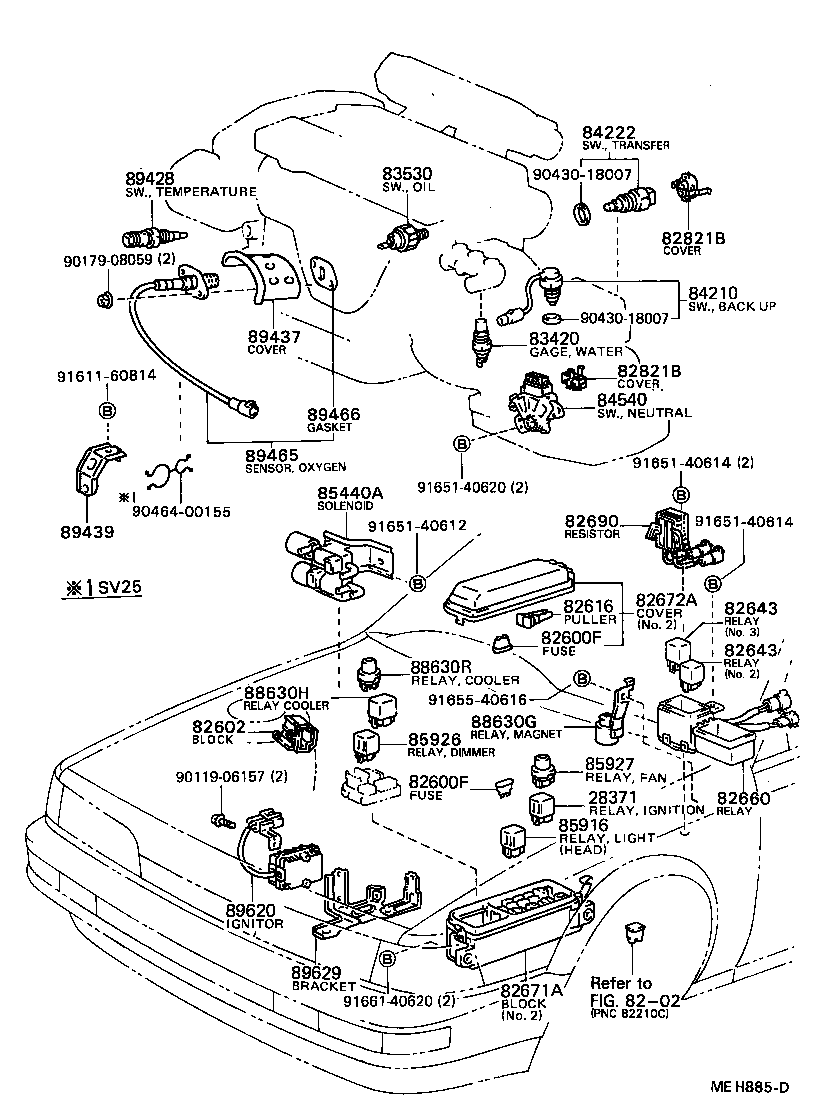

| 89465 | Sensor, Oxygen |
| 89466 | Gasket, Oxygen Sensor |

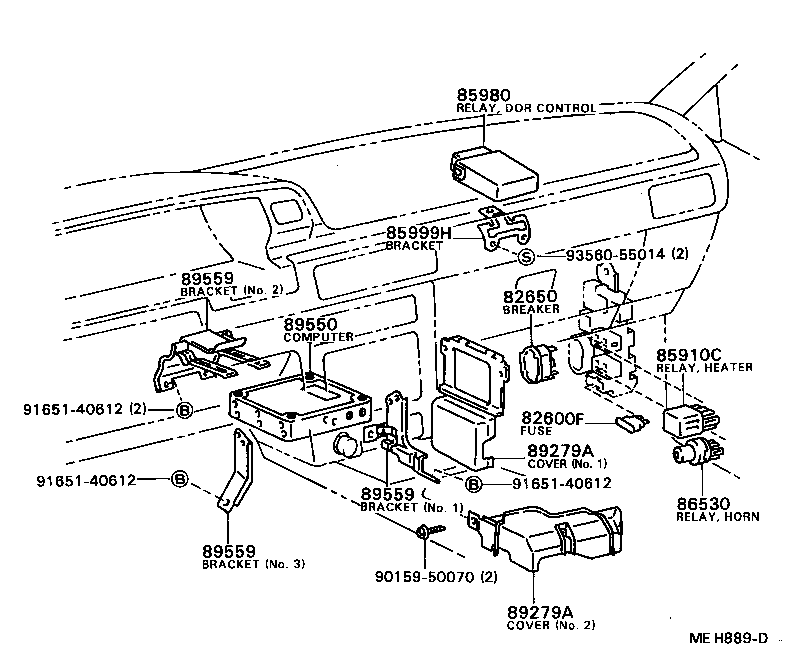

| 89550 | Computer Assy, Emission Control |
| 89559 | Bracket, Emission Control Computer |
| 89620 | Igniter Assy |
| 89629 | Bracket, Igniter Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
