Toyota Camry
1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe
Discontinued model
Data version 1989-04

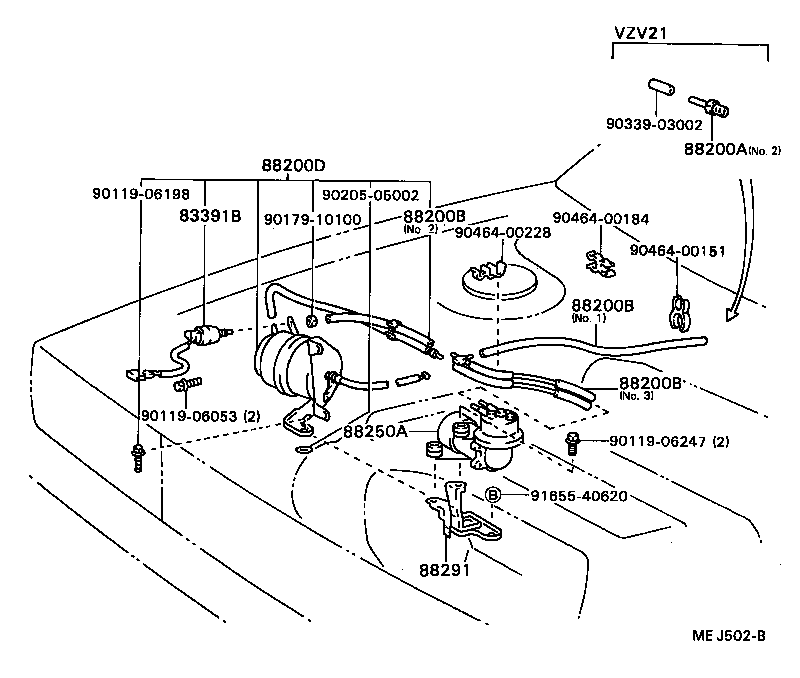

Cruise Control (AUTO DRIVE)
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 83391B | Switch, Auto Drive Vacuum |
| 84630 | Switch Assy, Cruise Control Main |
| 88200A | Union OR Way, Cruise Control Vacuum |
| 88200B | Hose, Cruise Control Vacuum |
| 88200D | Actuator Assy, Cruise Control |
| 88235 | Switch Assy, Cruise Control(AUTO DRIVE) Release |
| 88240 | Computer Assy, Cruise Control |
| 88250A | Pump Assy, Cruise Control |
| 88291 | Bracket, Cruise Control(AUTO DRIVE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
