Toyota Camry
1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe
Discontinued model
Data version 1989-04

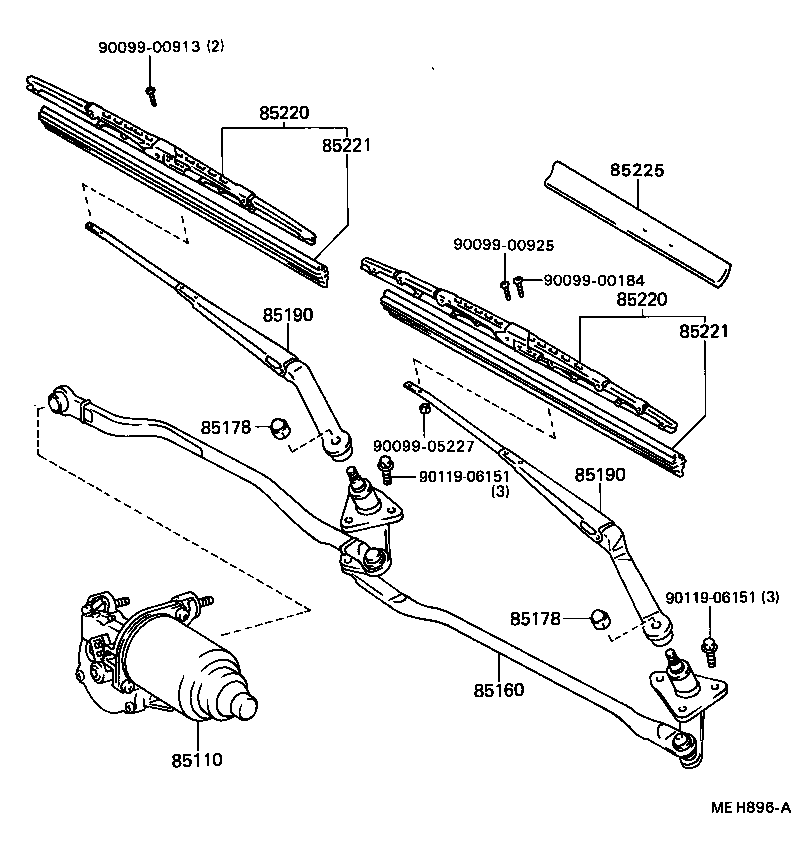

Windshield Wiper
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110 | Motor Assy, Windshield Wiper |
| 85160 | Link Assy, Windshield Wiper |
| 85178 | Nut (FOR FRONT WIPER ARM SETTING) |
| 85190 | Arm Assy, Windshield Wiper |
| 85220 | Blade Assy, Windshield Wiper |
| 85221 | Blade, Windshield Wiper |
| 85225 | Wing, Wiper Blade |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
