Factory parts data · Europe

Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 2 illustrations

Illustrations

Figure MEH431A

MEH431A 1986-10 → —

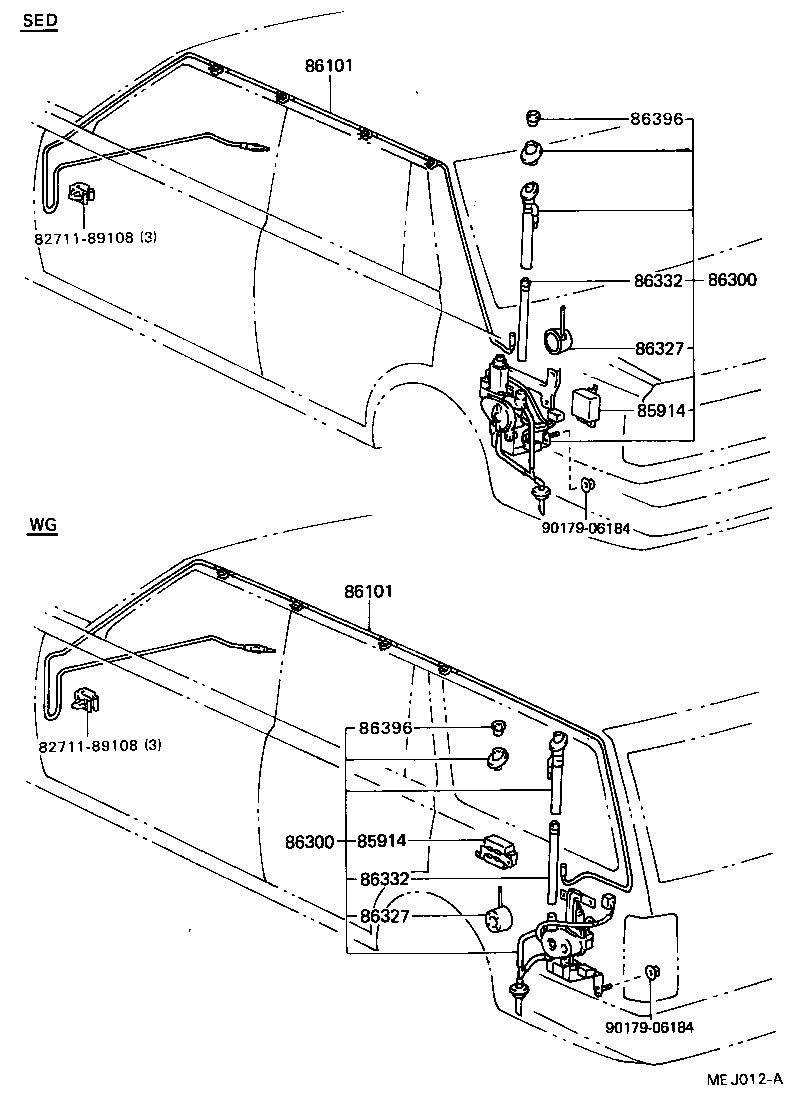

Figure MEJ012A

MEJ012A 1986-10 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86101	Cord Sub-assy, Antenna
86300	Antenna Assy, W/Holder
86327	Cable, W/Antenna Drum
86332	Rod, Antenna
86393	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
