Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

11 part groups · 2 illustrations

Illustrations

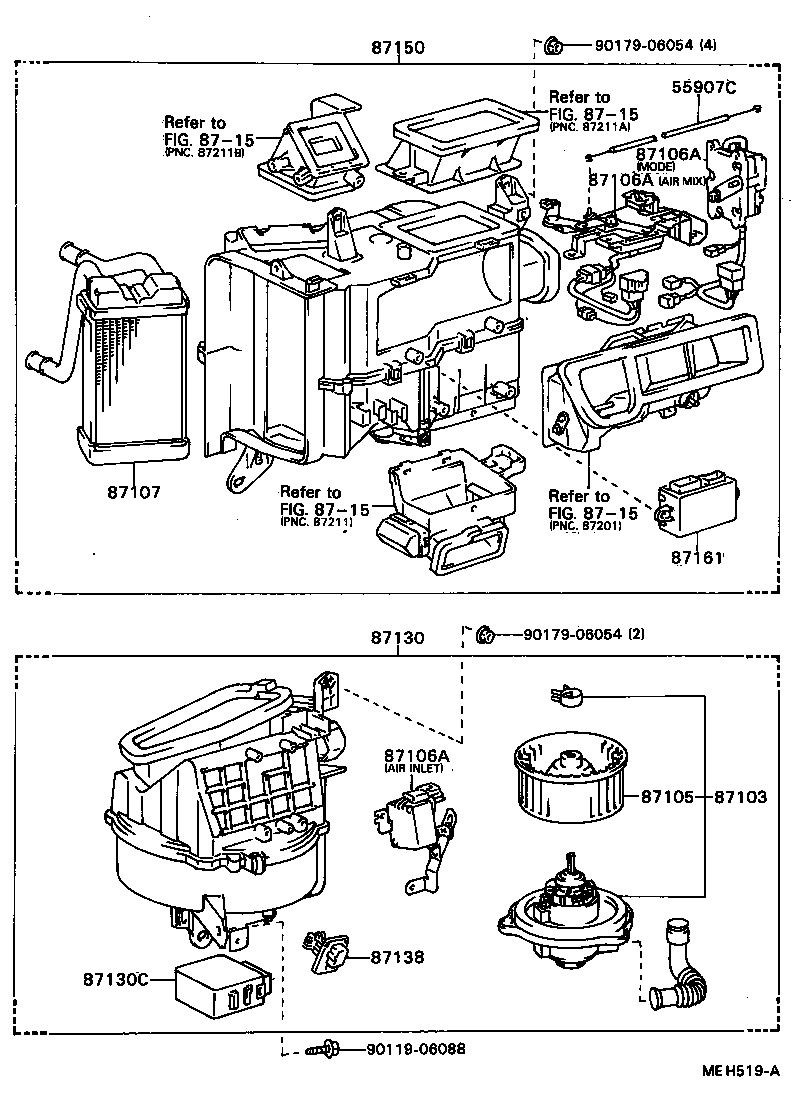

Figure MEH518B MEH518B 1986-10 → — Figure MEH519A MEH519A 1986-10 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
55909B Cable Sub-assy, Airmix Damper Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87130C Relay, Heater Blower Motor
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87161 Amplifier, Heater Servo Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
