Toyota Camry

1986-10 → 1988-08 · chassis SV2#,CV20,VZV21 · catalogue 281530 · Europe

Discontinued model Data version 1989-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 4 illustrations

Illustrations

Figure MEH910C

MEH910C 1986-10 → —

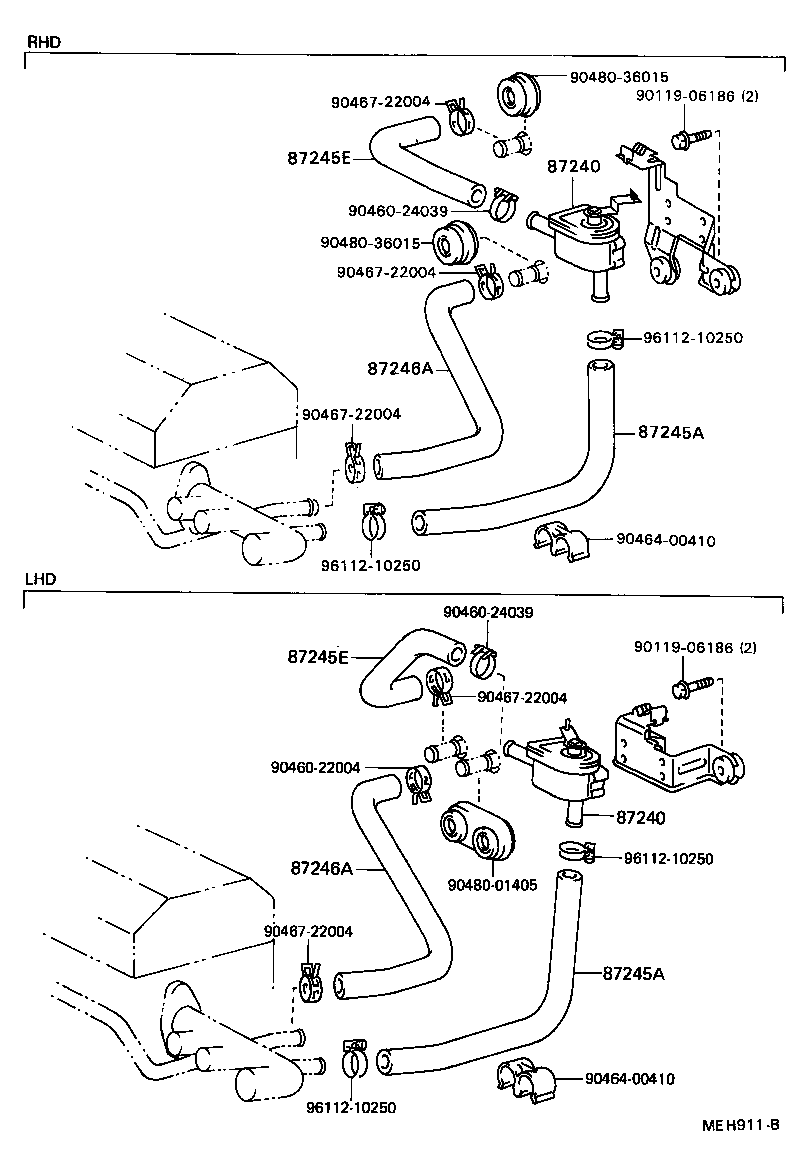

Figure MEH911B

MEH911B 1986-10 → —

Figure MEK726A

MEK726A 1988-02 → —

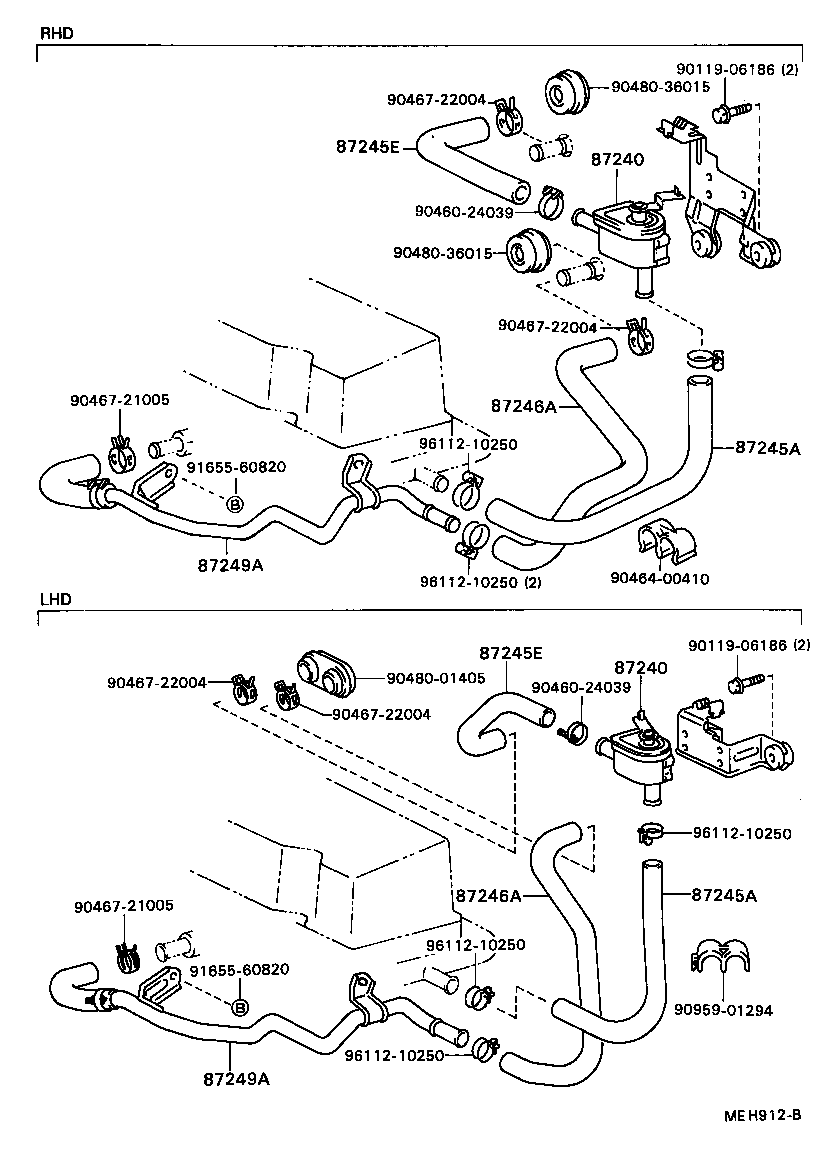

Figure MEH912B

MEH912B 1986-10 → —

Part groups

PNC	Description
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87249A	Pipe, Heater Water Outlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
