Heating & Air Conditioning - Cooler Piping

29 part groups · 7 illustrations

Illustrations

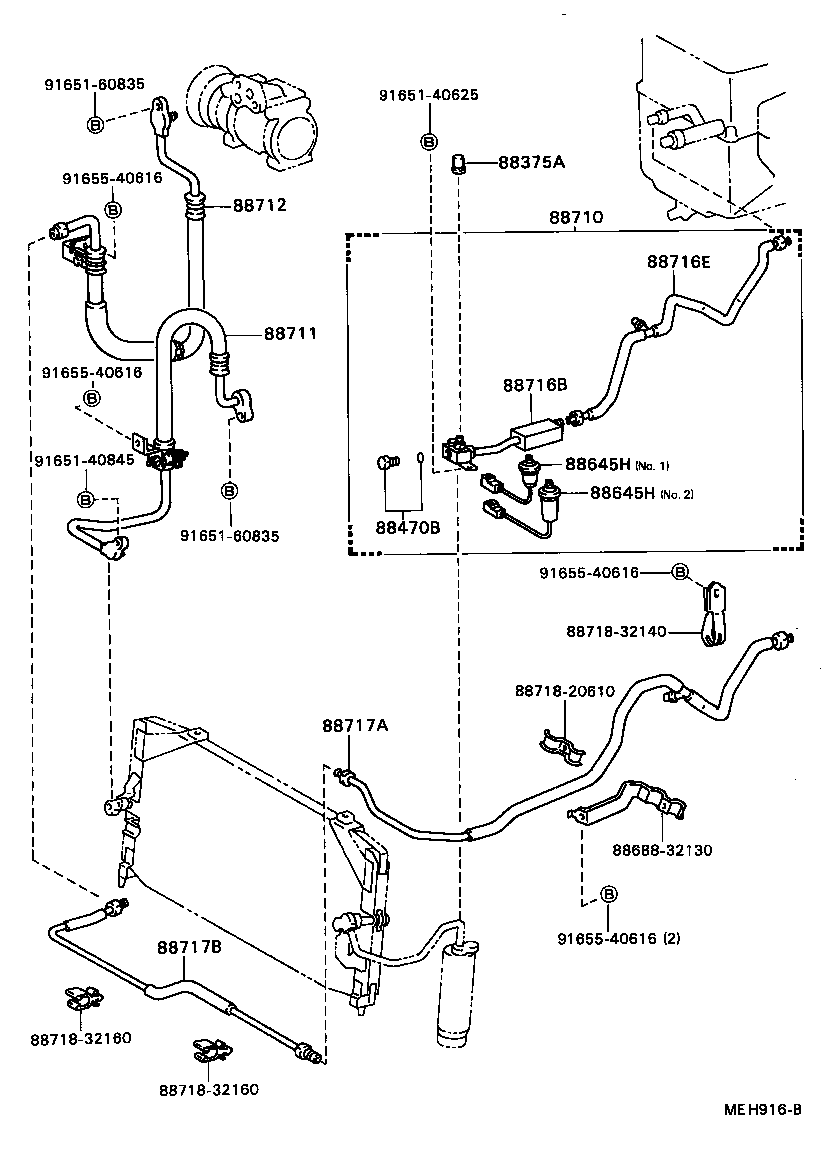

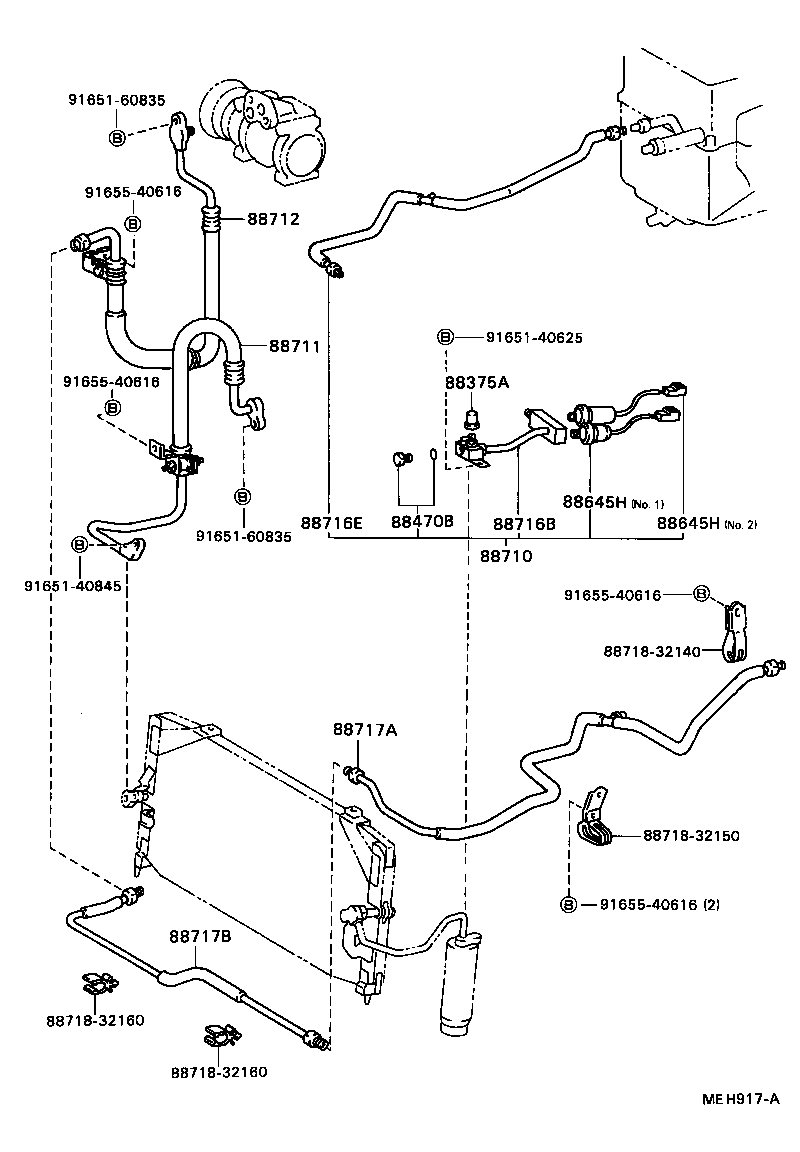

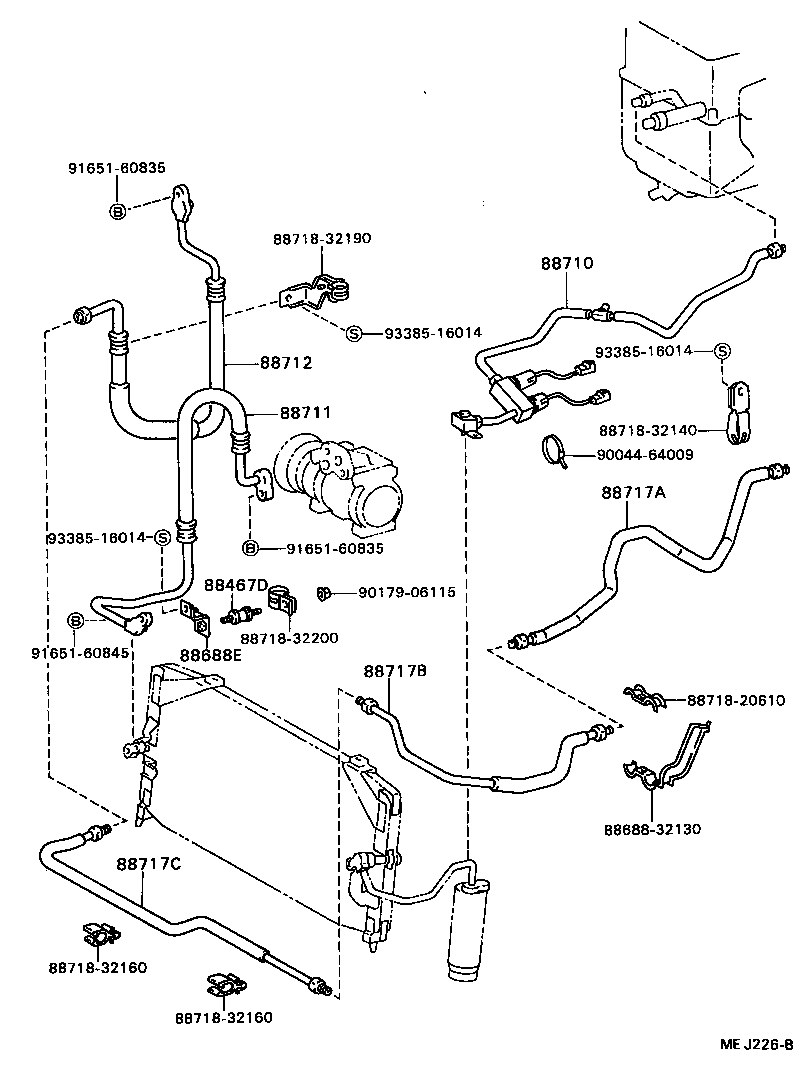

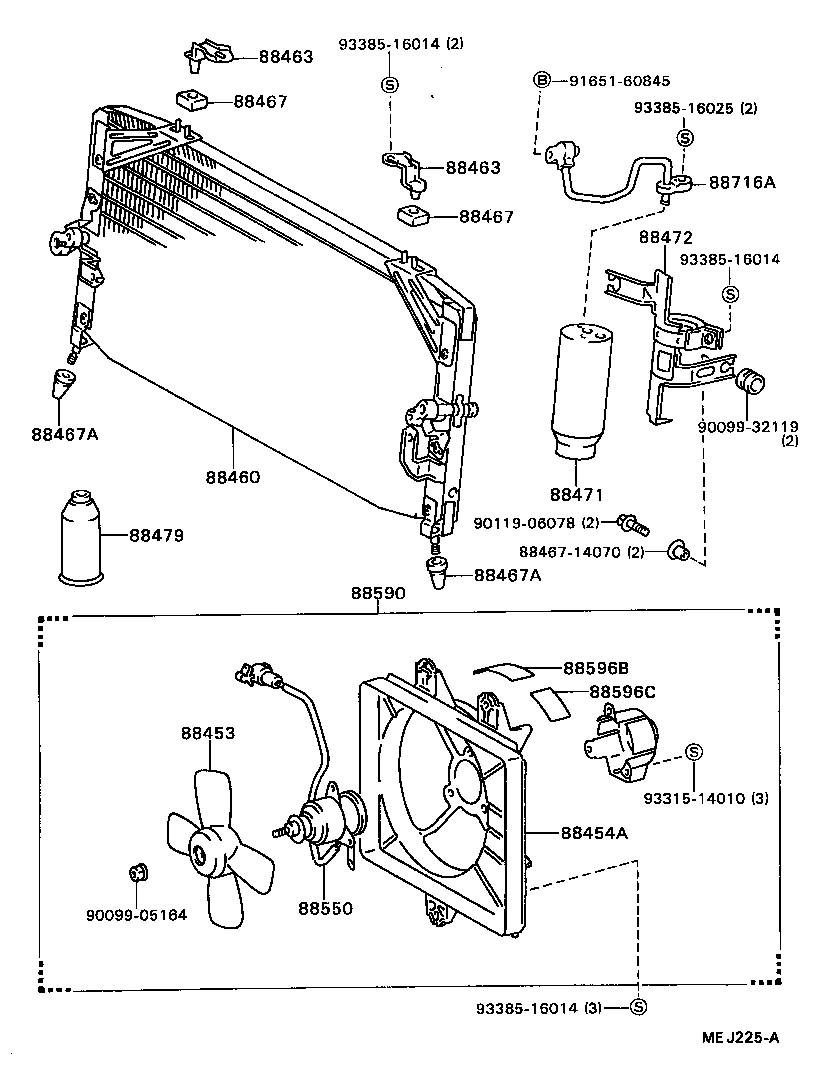

Figure MEH915B MEH915B 1986-10 → — Figure MEJ225A MEJ225A 1986-10 → — Figure MEH916B MEH916B 1986-10 → — Figure MEJ226B MEJ226B 1986-10 → — Figure MEH917A MEH917A 1986-10 → — Figure MEH444C MEH444C 1986-10 → — Figure MEK727 MEK727 1988-02 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88467D Cushion, Cooler Refrigerant Pipe Clamp
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88596C Plate, Caution, NO.2
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88720A Hose & Accessory, Air Conditioner
