Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

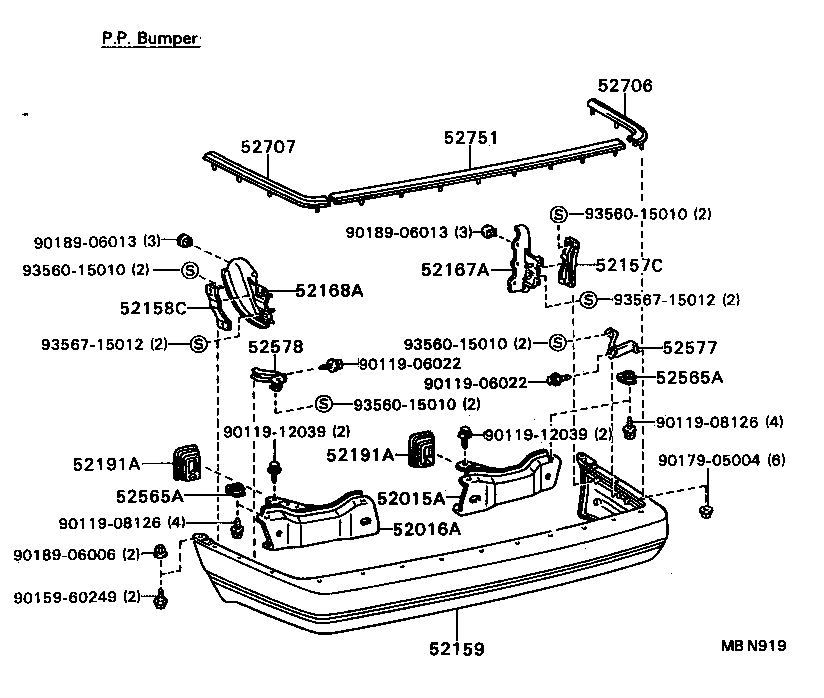

Exploded illustration MBN919 52706 — MOULDING SUB-ASSY, REAR BUMPER SIDE, RH (3 parts) 52751 — MOULDING, REAR BUMPER (3 parts) 52707 — MOULDING SUB-ASSY, REAR BUMPER SIDE, LH (3 parts) 9356015010 — not listed in this catalogue 9018906013 — not listed in this catalogue 9018906013 — not listed in this catalogue 52157C — SUPPORT, REAR BUMPER SIDE, NO.2 RH (4 parts) 52167A — SUPPORT, REAR BUMPER SIDE, NO.4 RH (4 parts) 9356015010 — not listed in this catalogue 52168A — SUPPORT, REAR BUMPER SIDE, NO.4 LH (4 parts) 9356715012 — not listed in this catalogue 52158C — SUPPORT, REAR BUMPER SIDE, NO.2 LH (4 parts) 9356015010 — not listed in this catalogue 9356715012 — not listed in this catalogue 52578 — RETAINER, REAR BUMPER SIDE, NO.2 LH (1 parts) 52577 — RETAINER, REAR BUMPER SIDE, NO.2 RH (1 parts) 9011906022 — not listed in this catalogue 52565A — RETAINER, REAR BUMPER, LOWER (5 parts) 9011906022 — not listed in this catalogue 9356015010 — not listed in this catalogue 9011908126 — not listed in this catalogue 9011912039 — not listed in this catalogue 9011912039 — not listed in this catalogue 52191A — SEAL, REAR BUMPER ARM (3 parts) 9017905004 — not listed in this catalogue 52191A — SEAL, REAR BUMPER ARM (3 parts) 52015A — ARM SUB-ASSY, REAR BUMPER, RH (2 parts) 52565A — RETAINER, REAR BUMPER, LOWER (5 parts) 9011908126 — not listed in this catalogue 52016A — ARM SUB-ASSY, REAR BUMPER, LH (2 parts) 9018906006 — not listed in this catalogue 9015960249 — not listed in this catalogue 52159 — COVER, REAR BUMPER (6 parts)
MBN919 · 16 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-32070 Arm Sub-assy, Rear Bumper, RH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52015-32090 Arm Sub-assy, Rear Bumper, RH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-32010 Arm Sub-assy, Rear Bumper, LH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52016-32020 Arm Sub-assy, Rear Bumper, LH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52157C — Support, Rear Bumper Side, NO.2 RH
52157-32050 Support, Rear Bumper Side, NO.2 RH
1988-08 → 1991-06 ended
CV20,SV21,VZV21 SED (GL,GLI,GXI) —
52157-32050 note Support, Rear Bumper Side, NO.2 RH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52157-32060 Support, Rear Bumper Side, NO.2 RH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52157-32070 Support, Rear Bumper Side, NO.2 RH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52158C — Support, Rear Bumper Side, NO.2 LH
52158-32030 Support, Rear Bumper Side, NO.2 LH
1988-08 → 1991-06 ended
CV20,SV21,VZV21 SED (GL,GLI,GXI) —
52158-32030 note Support, Rear Bumper Side, NO.2 LH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52158-32040 Support, Rear Bumper Side, NO.2 LH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52158-32050 Support, Rear Bumper Side, NO.2 LH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52159 — Cover, Rear Bumper
52159-32170 Cover, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52159-32200 Cover, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52159-32909 Cover, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED (GL,GLI,GXI) —
52159-32909 note Cover, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52159-32912 Cover, Rear Bumper
1988-08 → 1991-06 ended
SV21,VZV21 WG (GLI,GXI) —
52159-32912 note Cover, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52167A — Support, Rear Bumper Side, NO.4 RH
52167-32020 Support, Rear Bumper Side, NO.4 RH
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED —
52167-32030 Support, Rear Bumper Side, NO.4 RH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52167-32040 Support, Rear Bumper Side, NO.4 RH
1988-08 → 1991-06 ended
SV21,VZV21 WG (GLI,GXI) —
52167-32040 note Support, Rear Bumper Side, NO.4 RH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52168A — Support, Rear Bumper Side, NO.4 LH
52168-32020 Support, Rear Bumper Side, NO.4 LH
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED —
52168-32030 Support, Rear Bumper Side, NO.4 LH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52168-32040 Support, Rear Bumper Side, NO.4 LH
1988-08 → 1991-06 ended
SV21,VZV21 WG (GLI,GXI) —
52168-32040 note Support, Rear Bumper Side, NO.4 LH
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52191A — Seal, Rear Bumper Arm
52191-32010 Seal, Rear Bumper Arm
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52191-32020 Seal, Rear Bumper Arm
1988-08 → 1991-06 ended
SV21,VZV21 WG (GLI,GXI) —
52191-32020 note Seal, Rear Bumper Arm
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52565A — Retainer, Rear Bumper, Lower
52565-12040 Retainer, Rear Bumper, Lower
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
52565-32030 Retainer, Rear Bumper, Lower
1988-08 → 1991-06 ended
SV21,VZV21 WG (GLI,GXI) —
52565-32030 note Retainer, Rear Bumper, Lower
1988-08 → 1991-06 ended
CV20,SV21 WG (XL,XLI) —
52565-32040 Retainer, Rear Bumper, Lower
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED (GL,GLI,GXI) —
52565-32040 note Retainer, Rear Bumper, Lower
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52577 — Retainer, Rear Bumper Side, NO.2 RH
52577-32040 Retainer, Rear Bumper Side, NO.2 RH
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
52578 — Retainer, Rear Bumper Side, NO.2 LH
52578-32040 Retainer, Rear Bumper Side, NO.2 LH
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
52706 — Moulding Sub-assy, Rear Bumper Side, RH
52706-32030 Moulding Sub-assy, Rear Bumper Side, RH
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED (GL,GLI,GXI) —
52706-32030 note Moulding Sub-assy, Rear Bumper Side, RH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52706-32040 Moulding Sub-assy, Rear Bumper Side, RH
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
52707 — Moulding Sub-assy, Rear Bumper Side, LH
52707-32030 Moulding Sub-assy, Rear Bumper Side, LH
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED (GL,GLI,GXI) —
52707-32030 note Moulding Sub-assy, Rear Bumper Side, LH
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52707-32040 Moulding Sub-assy, Rear Bumper Side, LH
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
52751 — Moulding, Rear Bumper
52751-32030 Moulding, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 SED (GL,GLI,GXI) —
52751-32030 note Moulding, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 SED (XL,XLI) —
52751-32040 Moulding, Rear Bumper
1988-08 → 1991-06 ended
CV20,SV21 XL,XLI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
