Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

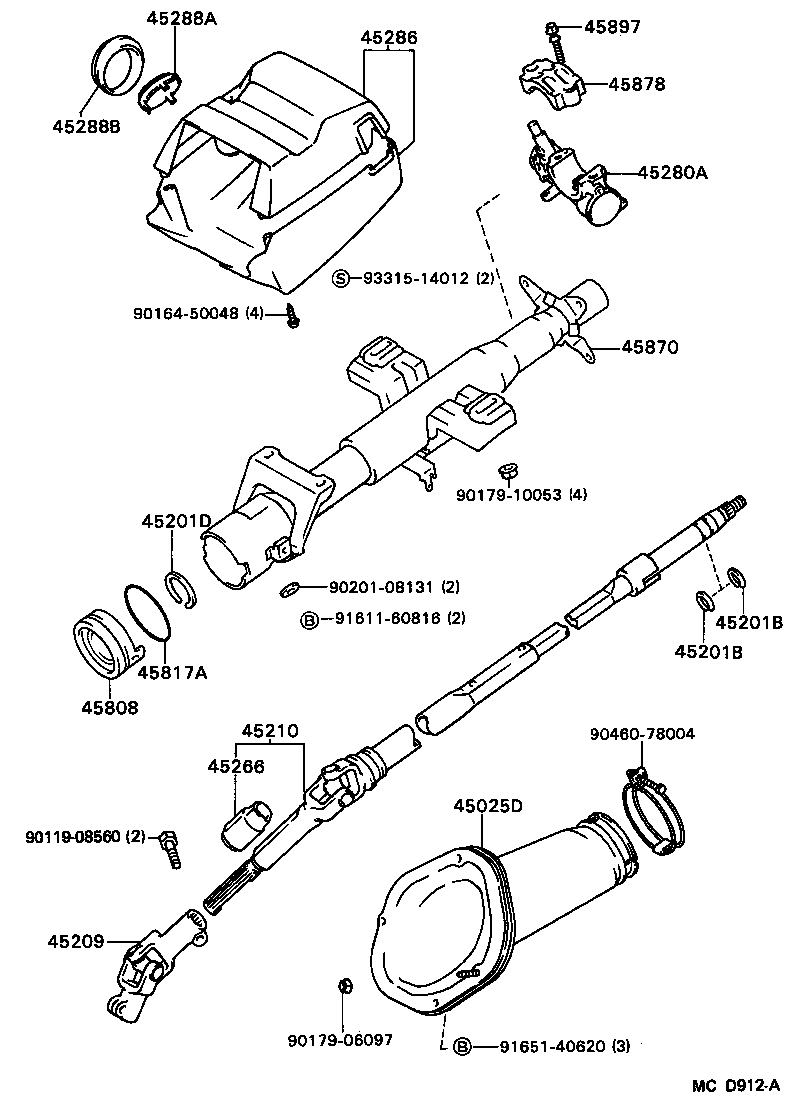

Exploded illustration MCD912A 45288A — SPACER, COLUMN COVER (2 parts) 45897 — BOLT, STEERING LOCK SET (3 parts) 45286 — COVER, STEERING COLUMN (9 parts) 45878 — BRACKET, STEERING COLUMN UPPER SUPPORT (2 parts) 45288B — COVER, STEERING COLUMN, UPPER (5 parts) 45280A — BRACKET ASSY, STEERING COLUMN, UPPER (5 parts) 9331514012 — not listed in this catalogue 9016450048 — not listed in this catalogue 45870 — TUBE ASSY, STEERING COLUMN (10 parts) 9017910053 — not listed in this catalogue 45201D — RING(FOR STEERING MAIN SHAFT) (3 parts) 9020108131 — not listed in this catalogue 9161160816 — not listed in this catalogue 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (4 parts) 45201B — RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) (4 parts) 45817A — RING, O(FOR STEERING SHAFT THRUST STOPPER) (1 parts) 45808 — STOPPER SUB-ASSY, STEERING SHAFT THRUST (2 parts) 45210 — SHAFT ASSY, STEERING MAIN (5 parts) 9046078004 — not listed in this catalogue 45266 — COVER, STEERING INTERMEDIATE SHAFT DUST (1 parts) 45025D — COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 (8 parts) 9011908560 — not listed in this catalogue 45209 — YOKE SUB-ASSY, STEERING SLIDING (3 parts) 9017906097 — not listed in this catalogue 9165140620 — not listed in this catalogue
MCD912A · 16 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
45025D — Cover Sub-assy, Steering Column Hole, NO.1
45025-32050 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1988-10 ended
CV20 RHD —
45025-32060 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1988-10 ended
CV20 LHD —
45025-32070 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1988-10 ended
SV2#,VZV21 RHD —
45025-32080 Cover Sub-assy, Steering Column Hole, NO.1
1988-08 → 1988-10 ended
SV2#,VZV21 LHD —
45025-32090 Cover Sub-assy, Steering Column Hole, NO.1
1988-10 → 1991-06 ended
CV20 RHD —
45025-32100 Cover Sub-assy, Steering Column Hole, NO.1
1988-10 → 1991-06 ended
CV20 LHD —
45025-32110 Cover Sub-assy, Steering Column Hole, NO.1
1988-10 → 1991-06 ended
SV2#,VZV21 RHD —
45025-32120 Cover Sub-assy, Steering Column Hole, NO.1
1988-10 → 1991-06 ended
SV2#,VZV21 LHD —
45201B — Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD;CV20,SV21 LHD (XL,XLI) —
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
90520-17042 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
90520-17196 note Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD;CV20,SV21 LHD (XL,XLI) —
45201D — Ring(FOR STEERING MAIN SHAFT)
90520-28061 Ring(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD;CV20,SV21 LHD (XL,XLI) —
96152-00300 Ring(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
96152-00300 note Ring(FOR STEERING MAIN SHAFT)
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45209 — Yoke Sub-assy, Steering Sliding
45209-32010 Yoke Sub-assy, Steering Sliding
1988-08 → 1991-06 ended
SV21 XLI —
45209-32020 Yoke Sub-assy, Steering Sliding
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 GL,GLI,GXI,XL —
45209-32020 note Yoke Sub-assy, Steering Sliding
1988-08 → 1991-06 ended
SV21 XLI —
45210 — Shaft Assy, Steering Main
45210-32110 Shaft Assy, Steering Main
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD —
45210-32120 Shaft Assy, Steering Main
1988-08 → 1991-06 ended
SV21 XLI —
45210-32130 Shaft Assy, Steering Main
1988-08 → 1991-06 ended
CV20 LHD XL —
45210-32140 Shaft Assy, Steering Main
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45210-32140 note Shaft Assy, Steering Main
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45266 — Cover, Steering Intermediate Shaft Dust
45266-20010 Cover, Steering Intermediate Shaft Dust
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 —
45280A — Bracket Assy, Steering Column, Upper
45280-32140 Bracket Assy, Steering Column, Upper
1988-08 → 1991-06 ended
CV20,SV2# RHD —
45280-32150 Bracket Assy, Steering Column, Upper
1988-08 → 1991-06 ended
VZV21 RHD —
45280-32210 Bracket Assy, Steering Column, Upper
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45280-32240 note Bracket Assy, Steering Column, Upper
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45280-32240 Bracket Assy, Steering Column, Upper
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45286 — Cover, Steering Column
45286-32916-01 note Cover, Steering Column
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45286-32917-01 note Cover, Steering Column
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45286-32917-01 note Cover, Steering Column
1988-08 → 1991-06 ended
SV21 XLI G;CV20 LHD +4 —
45286-32930-01 note Cover, Steering Column
1988-08 → 1990-08 ended
CV20,SV2# RHD —
45286-32930-01 note Cover, Steering Column
1990-08 → 1991-06 ended
CV20,SV2# RHD (GL,GLI) —
45286-32930-03 note Cover, Steering Column
1988-08 → 1990-08 ended
VZV21 RHD —
45286-32930-03 note Cover, Steering Column
1990-08 → 1991-06 ended
CV20,VZV21 RHD (GXI,XL) —
45286-32930-04 note Cover, Steering Column
1988-08 → 1990-08 ended
VZV21 RHD —
45286-32930-04 note Cover, Steering Column
1990-08 → 1991-06 ended
CV20,VZV21 RHD (GXI,XL) —
45288A — Spacer, Column Cover
45288-30010 Spacer, Column Cover
1988-08 → 1991-06 ended
CV20 RHD XL —
45288-32040 Spacer, Column Cover
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45288B — Cover, Steering Column, Upper
45288-32031-01 note Cover, Steering Column, Upper
1988-08 → 1990-08 ended
CV20,SV2#,VZV21 LHD —
45288-32031-01 note Cover, Steering Column, Upper
1990-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45288-32031-03 note Cover, Steering Column, Upper
1990-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45288-32031-04 note Cover, Steering Column, Upper
1990-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45288-32031-06 note Cover, Steering Column, Upper
1990-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45808 — Stopper Sub-assy, Steering Shaft Thrust
45808-32010 Stopper Sub-assy, Steering Shaft Thrust
1988-08 → 1990-01 ended
CV20,SV2#,VZV21 —
45808-32020 Stopper Sub-assy, Steering Shaft Thrust
1990-01 → 1991-06 ended
CV20,SV2#,VZV21 —
45817A — Ring, O(FOR STEERING SHAFT THRUST STOPPER)
90301-54002 Ring, O(FOR STEERING SHAFT THRUST STOPPER)
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 —
45870 — Tube Assy, Steering Column
45870-32020 Tube Assy, Steering Column
1988-08 → 1988-09 ended
CV20 RHD XL —
45870-32021 Tube Assy, Steering Column
1988-09 → 1991-06 ended
CV20 RHD XL —
45870-32070 Tube Assy, Steering Column
1988-08 → 1988-09 ended
CV20,SV21 LHD (XL,XLI) —
45870-32071 Tube Assy, Steering Column
1988-09 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45870-32080 Tube Assy, Steering Column
1988-08 → 1988-09 ended
CV20,SV2#,VZV21 RHD (GL,GLI,GXI) —
45870-32080 note Tube Assy, Steering Column
1988-08 → 1988-09 ended
CV20 RHD XL —
45870-32081 Tube Assy, Steering Column
1988-09 → 1991-06 ended
CV20,SV2#,VZV21 RHD (GL,GLI,GXI) —
45870-32081 note Tube Assy, Steering Column
1988-09 → 1991-06 ended
CV20 RHD XL —
45870-32110 note Tube Assy, Steering Column
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45870-32110 Tube Assy, Steering Column
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45878 — Bracket, Steering Column Upper Support
45878-32030 Bracket, Steering Column Upper Support
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD —
45878-32080 Bracket, Steering Column Upper Support
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
45897 — Bolt, Steering Lock Set
45897-12020 Bolt, Steering Lock Set
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 RHD;CV20,SV21 LHD (XL,XLI) —
45897-32010 Bolt, Steering Lock Set
1988-08 → 1991-06 ended
CV20,SV2#,VZV21 LHD (GL,GLI,GXI) —
45897-32010 note Bolt, Steering Lock Set
1988-08 → 1991-06 ended
CV20,SV21 LHD (XL,XLI) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
