Toyota Camry
1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe
Discontinued model
Data version 1992-05

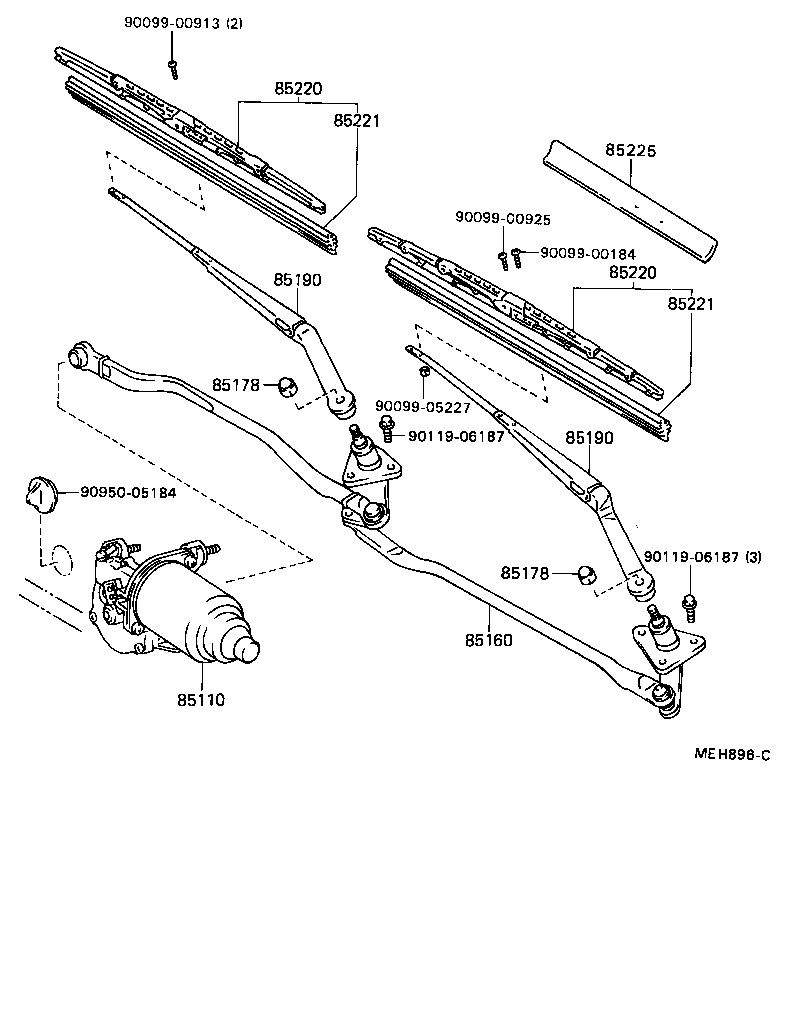

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-32202 |
Motor Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85110-32242 |
Motor Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85160-32101 |
Link Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85160-32141 |
Link Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08040 |
Nut (FOR FRONT WIPER ARM SETTING)
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 | — | |
| 85190 — Arm Assy, Windshield Wiper | ||||
| 85190-32251 note |
Arm Assy, Windshield Wiper
1988-08 → 1989-11
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85190-32252 note |
Arm Assy, Windshield Wiper
1989-11 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85190-32292 note |
Arm Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85210-32190 note |
Arm Assy, Windshield Wiper
1988-08 → 1989-11
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85210-32191 note |
Arm Assy, Windshield Wiper
1989-11 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85210-32211 note |
Arm Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85220 — Blade Assy, Windshield Wiper | ||||
| 85212-32250 note |
Blade Assy, Windshield Wiper
1990-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85220-16230 note |
Blade Assy, Windshield Wiper
1988-08 → 1989-11
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85220-16321 note |
Blade Assy, Windshield Wiper
1989-11 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85220-16880 note |
Blade Assy, Windshield Wiper
1988-08 → 1990-08
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85220-32840 note |
Blade Assy, Windshield Wiper
1988-08 → 1989-11
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85220-32841 note |
Blade Assy, Windshield Wiper
1989-11 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85220-32850 note |
Blade Assy, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85221 — Blade, Windshield Wiper | ||||
| 85221-14290 note |
Blade, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85221-14290 note |
Blade, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85221-30100 note |
Blade, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85221-30100 note |
Blade, Windshield Wiper
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
| 85225 — Wing, Wiper Blade | ||||
| 85225-32250 |
Wing, Wiper Blade
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 RHD | — | |
| 85225-32290 |
Wing, Wiper Blade
1988-08 → 1991-06
ended
|
CV20,SV2#,VZV21 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
