Toyota Camry
1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe
Discontinued model
Data version 1992-05

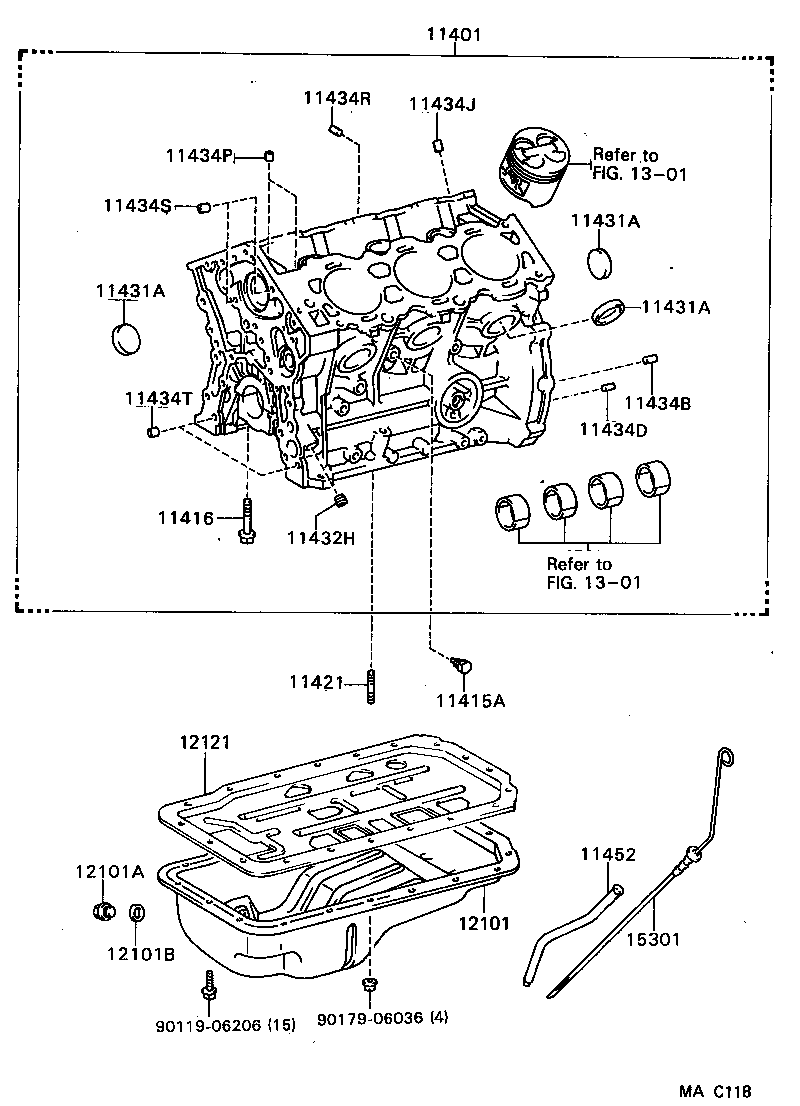

Cylinder Block
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11401C | Flange(FOR WATER BY-PASS) |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431D | Plug, Tight, NO.4(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11432H | Plug, W/Head Taper Screw, NO.5 |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434P | Pin, Straight(FOR OIL PUMP SET) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11434S | Pin, Ring(FOR WATER PUMP SET) |
| 11434T | Pin, Ring(FOR TIMING BELT IDLER BRACKET SET) |
| 11448 | Orifice, Cylinder Block Oil |
| 11452 | Guide, Oil Level Gage |
| 11459 | Support, Oil Level Gage Guide |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12112 | Pan, Oil NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 15301 | Gage Sub-assy, Oil Level |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
