Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 7 illustrations

Illustrations

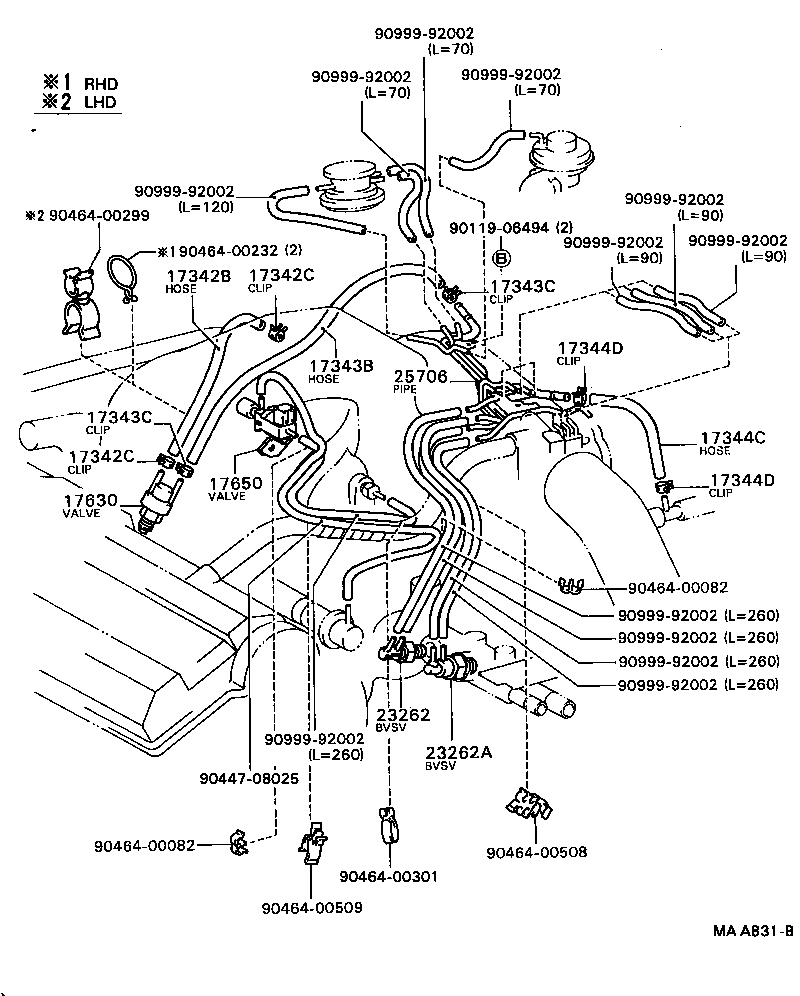

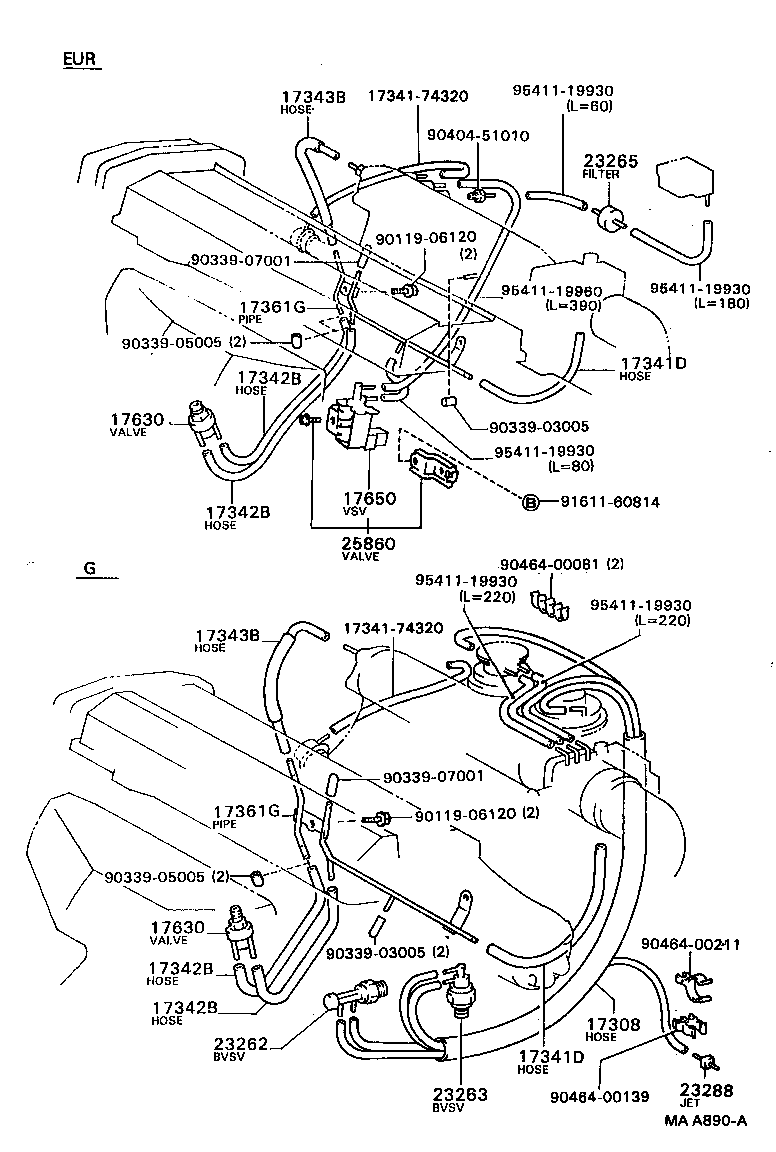

Figure MA9504B MA9504B 1988-08 → — Figure MAB096A MAB096A 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAA890A MAA890A 1988-08 → — Figure MA9504B MA9504B 1988-08 → — Figure MAA831B MAA831B 1988-08 → 1989-08 Figure MAA822D MAA822D 1989-08 → —

Part groups

PNCDescription
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17361G Tube, Air(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
