Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05

Suspension Crossmember & Under Cover

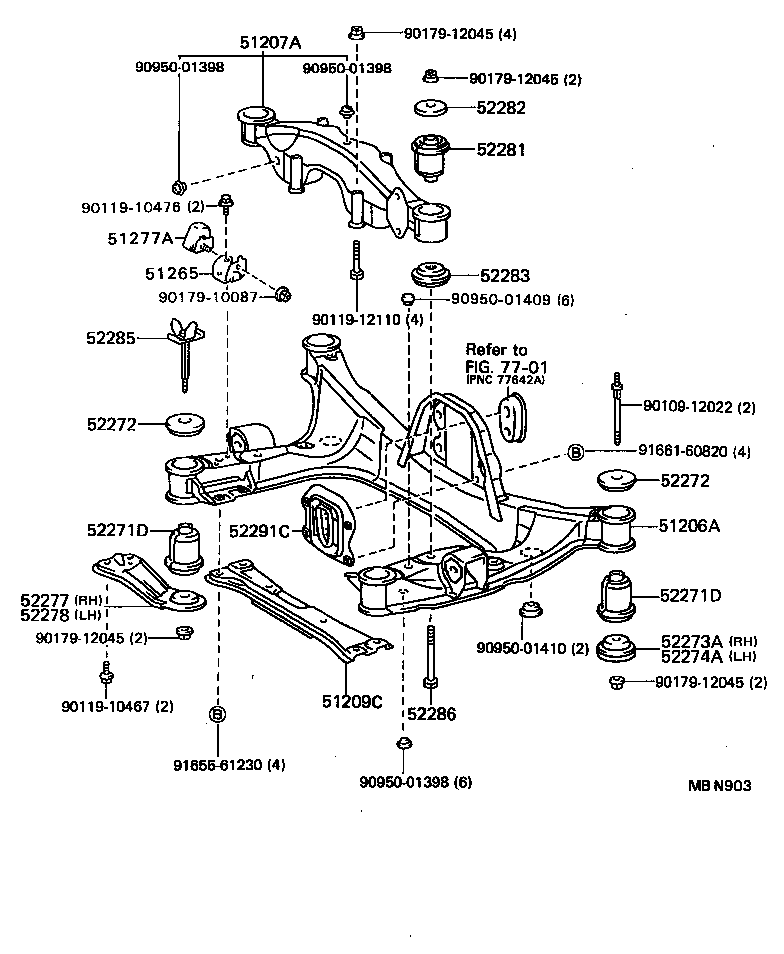

34 part groups · 2 illustrations

PNC	Description
51201	Crossmember Sub-assy, Front Suspension
51204A	Member Sub-assy, Engine Mounting, Center
51206A	Member Sub-assy, Rear Suspension
51207A	Member Sub-assy, Differential Support
51209B	Protector Sub-assy, Center Member, Front
51209C	Crossmember Sub-assy, Frame, Rear
51223A	Cover, Engine Mounting Hole
51224	Cover, Engine Mounting Hole, NO.2
51225	Cover, Engine Mounting Hole, NO.3
51248	Spacer, Flame Crossmember
51249	Damper, Rear Suspension Member
51265	Bracket, Rear Suspension Member, Front
51277A	Weight, Differential Support Member
51284	Cover, Rear Suspension Member Hole
51441	Cover, Engine Under, NO.1
51442	Cover, Engine Under, NO.2
51961	Hook, NO.1
51967	Hook, Transport, Rear
52220A	Cushion Assy, Center Member Mounting, Front Upper
52226	Cushion, Center Member Mounting, Front Lower
52230A	Cushion Assy, Center Member Mounting, Rear Upper
52236	Cushion, Center Member Mounting, Rear Lower
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52272	Stopper, Rear Suspension Member, Upper
52273A	Stopper, Rear Suspension Member, Lower RH
52274A	Stopper, Rear Suspension Member, Lower LH
52277	Retainer, Rear Suspension Member Lower Stopper, RH
52278	Retainer, Rear Suspension Member Lower Stopper, LH
52281	Cushion, Differential Support Member
52282	Stopper, Differential Support Member, Upper
52283	Stopper, Differential Support Member, Lower
52285	Bolt, Differential Support Member Mounting, NO.1
52286	Bolt, Differential Support Member Mounting, NO.2
52291C	Cushion, Differential Support Member, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
