Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05

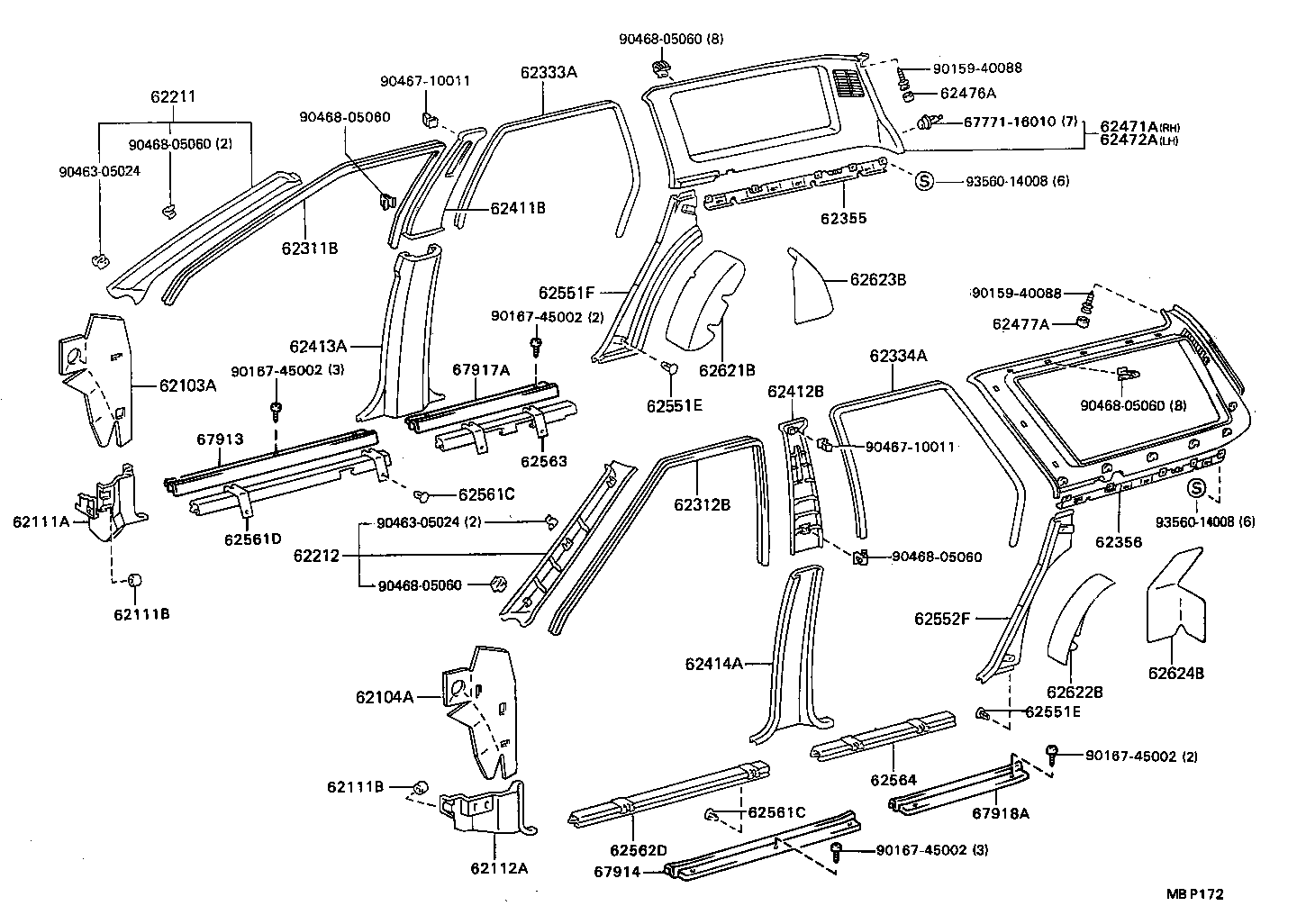

Inside Trim Board & Door Opening Trim Moulding

37 part groups · 2 illustrations

PNC	Description
62103A	Insulator Sub-assy, Cowl Side, RH
62104A	Insulator Sub-assy, Cowl Side, LH
62111A	Trim Sub-assy, Cowl Side, RH
62111B	Clip(FOR COWL SIDE TRIM)
62112A	Trim Sub-assy, Cowl Side, LH
62211	Garnish, Front Pillar, RH
62212	Garnish, Front Pillar, LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62333A	Trim, Rear Door Opening, RH
62334A	Trim, Rear Door Opening, LH
62355	Retainer, Quarter Window Inside Trim, RH
62356	Retainer, Quarter Window Inside Trim, LH
62411B	Garnish, Center Pillar, Upper RH
62412B	Garnish, Center Pillar, Upper LH
62413A	Garnish, Center Pillar, Lower RH
62414A	Garnish, Center Pillar, Lower LH
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62476A	Cap, Roof Side Inner Garnish, RH
62477A	Cap, Roof Side Inner Garnish, LH
62551E	Clip(FOR REAR SEAT SIDE GARNISH)
62551F	Garnish, Rear Seat Side, RH
62552F	Garnish, Rear Seat Side, LH
62561C	Clip (FOR ROCKER PANEL INNER PROTECTOR)
62561D	Protector, Rocker Panel, Inner Front RH
62562D	Protector, Rocker Panel, Inner Front LH
62563	Protector, Rocker Panel, Inner Rear RH
62564	Protector, Rocker Panel, Inner Rear LH
62621B	Pad, Quarter Wheel House, Inner Front RH
62622B	Pad, Quarter Wheel House, Inner Front LH
62623B	Pad, Quarter Wheel House, Inner Rear RH
62624B	Pad, Quarter Wheel House, Inner Rear LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
