Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

23 part groups · 2 illustrations

Illustrations

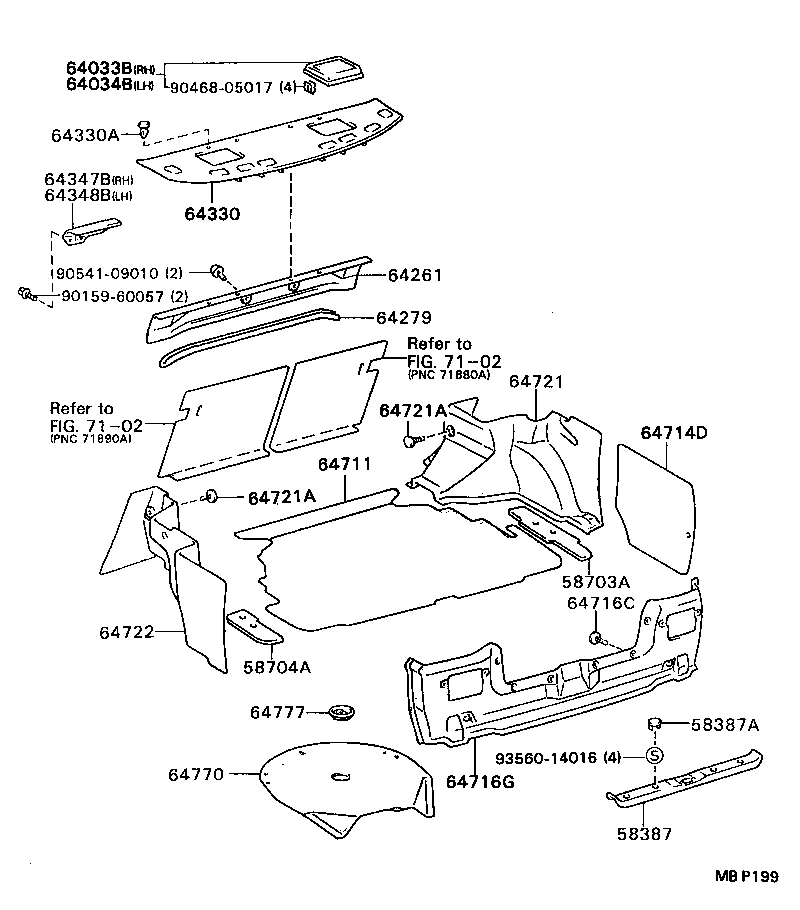

Figure MBP198A MBP198A 1988-08 → — Figure MBP199 MBP199 1988-08 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58387A Plug, Hole(FOR REAR FLOOR FINISH PLATE)
58703A Cover Sub-assy, Luggage Compartment Side, RH
58704A Cover Sub-assy, Luggage Compartment Side, LH
64033B Grille Sub-assy, Rear Speaker, RH
64034B Grille Sub-assy, Rear Speaker, LH
64261 Garnish, Room Partition
64271F Trim, Room Partition
64279 Protector, Room Partition
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64347B Bracket, Package Tray Reinforcement, RH
64348B Bracket, Package Tray Reinforcement, LH
64711 Mat, Luggage Compartment Floor
64714D Cover, Luggage Compartment Trim, Side, RH
64716C Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
64716G Cover, Luggage Compartment Trim, Rear
64717A Cover, Luggage Compartment Trim, Front
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722 Cover, Luggage Compartment Trim, Inner LH
64770 Cover Assy, Spare Wheel
64777 Clamp, Spare Wheel Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
