Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

9 part groups · 2 illustrations

Illustrations

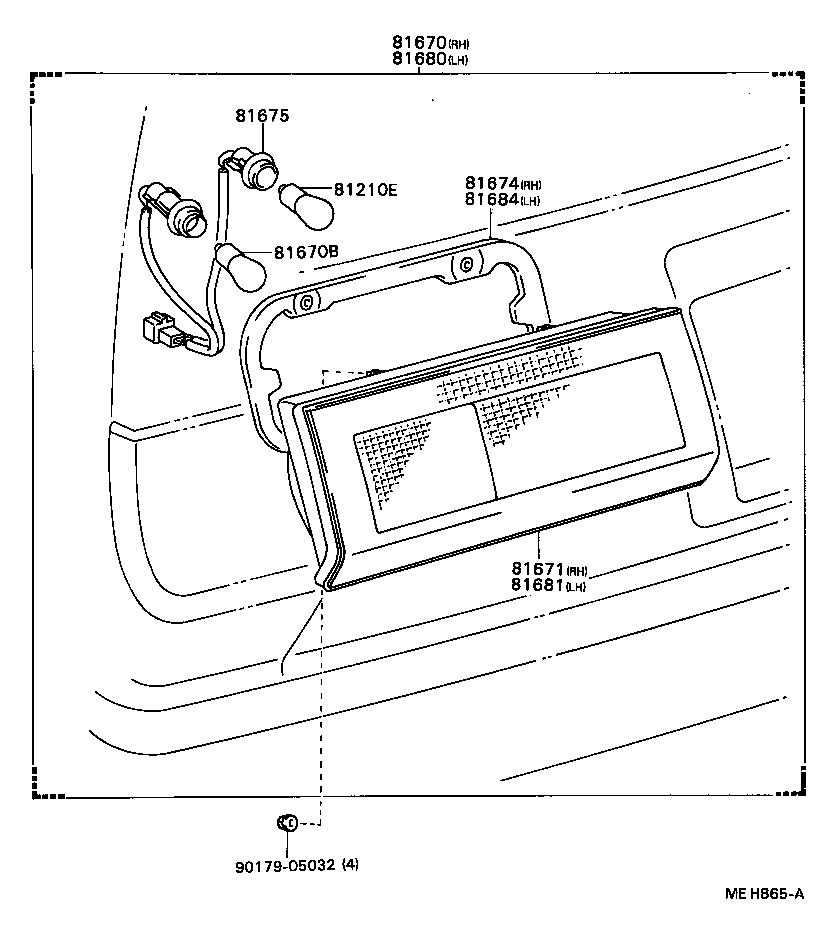

Figure MEH864 MEH864 1988-08 → — Figure MEH865A MEH865A 1988-08 → —

Part groups

PNCDescription
81210E Bulb, Rear Fog Lamp
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81684 Gasket, Back UP Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
