Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

15 part groups · 2 illustrations

Illustrations

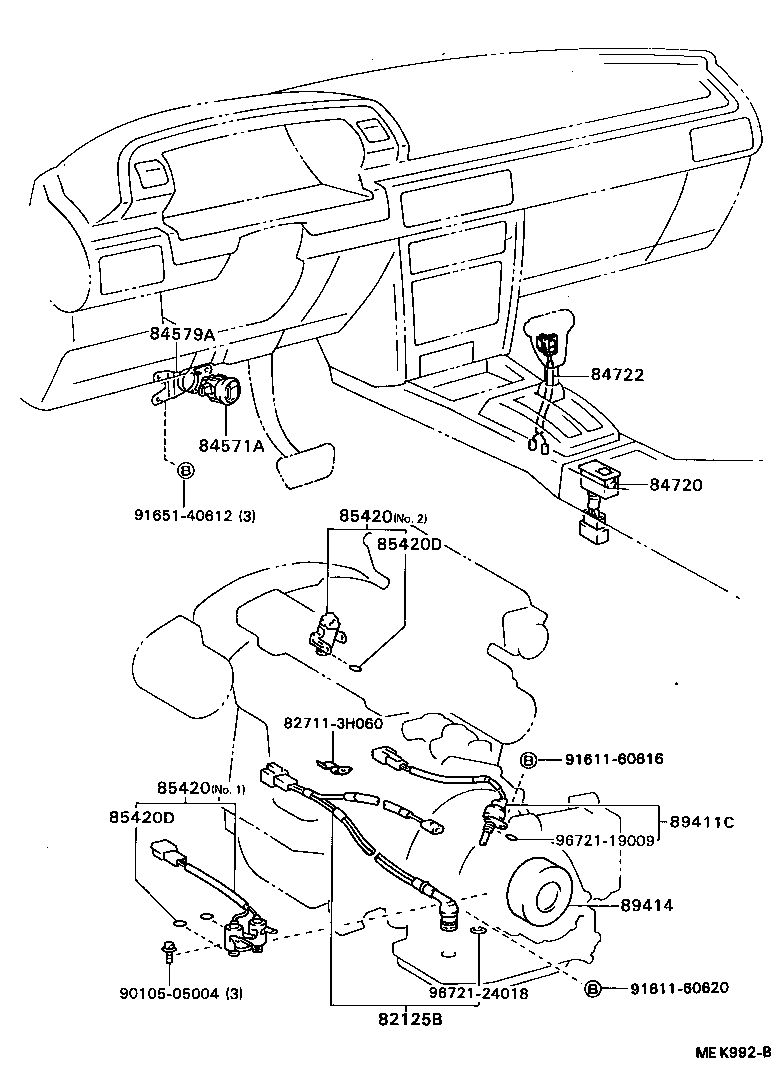

Figure MEK991 MEK991 1988-08 → — Figure MEK992B MEK992B 1988-08 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125B Wire, Transmission
84220A Switch Assy, Transmission Position Indicator
84571A Switch, Kick Down
84579A Bracket, Kick Down Switch
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
85425A Ring, O (FOR OVERDRIVE SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89427A Switch, Temperature
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
