Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

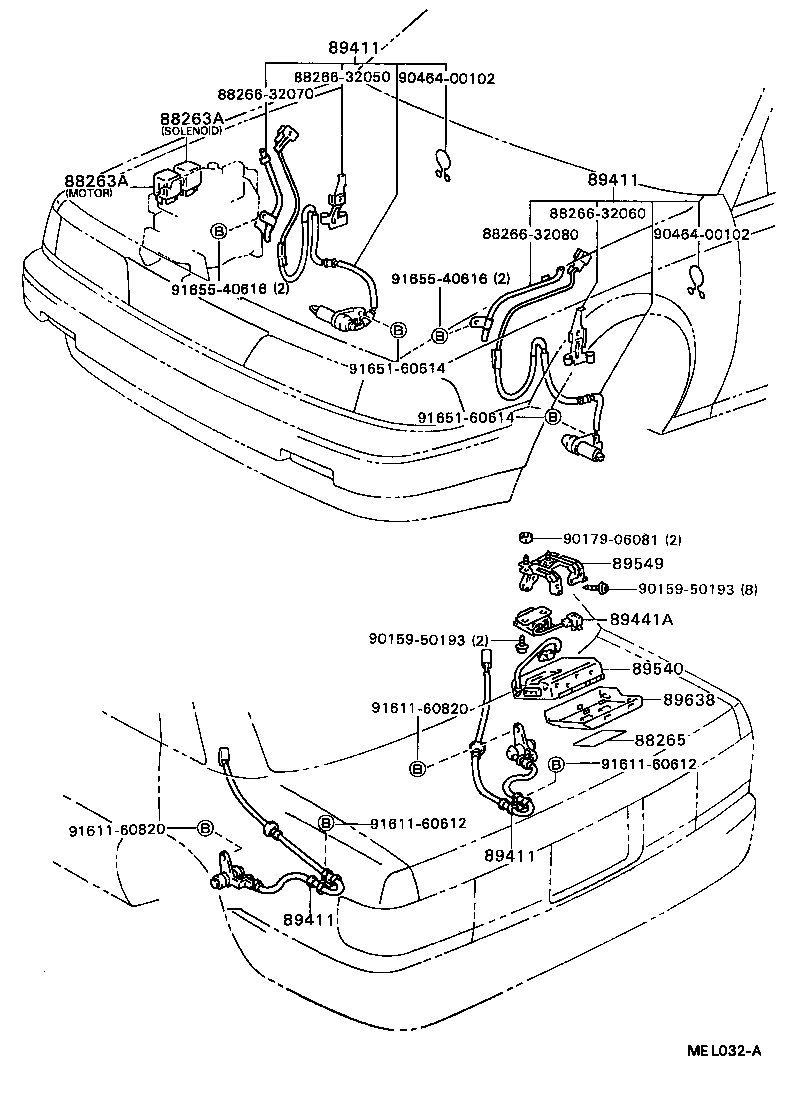

Figure MEL031A MEL031A 1988-08 → — Figure MEL032A MEL032A 1988-08 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88265 Label, Skid Control Caution
89411 Sensor, Speed
89441A Sensor, Deceleration
89540 Computer Assy, Skid Control
89549 Bracket, Skid Control Computer
89638 Cover, Brake Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
