Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 2 illustrations

Illustrations

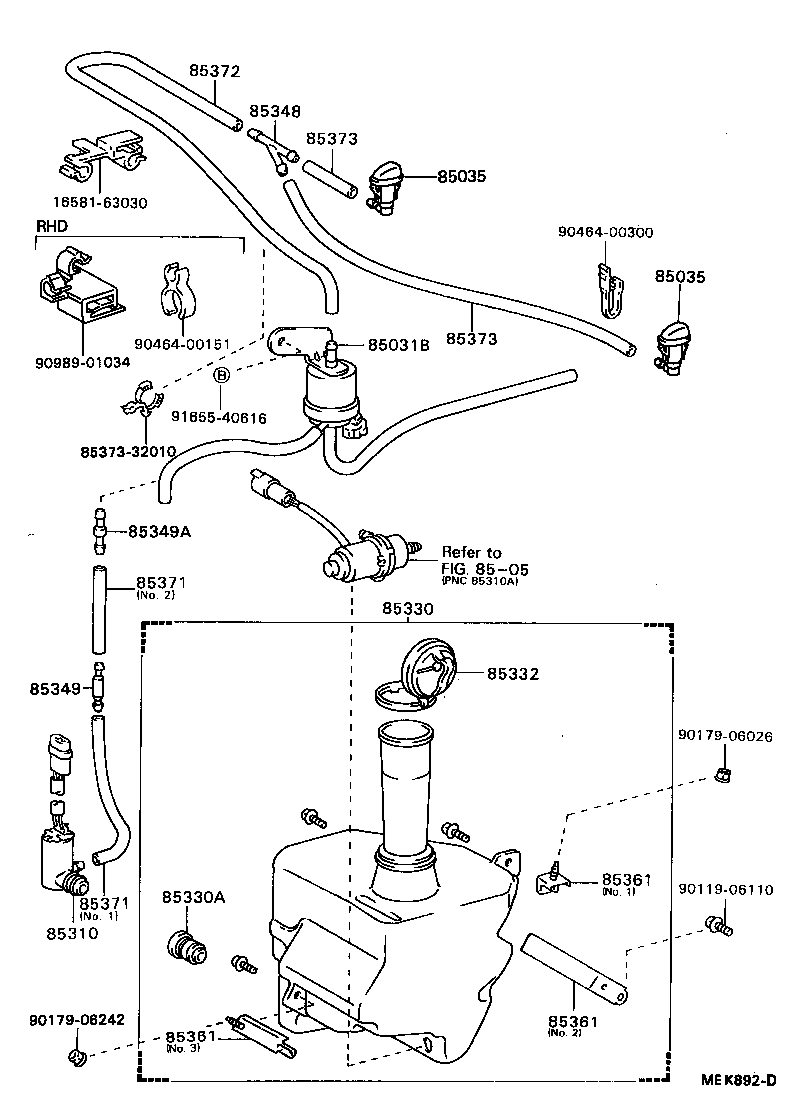

Figure MEK891C MEK891C 1988-08 → — Figure MEK892D MEK892D 1988-08 → —

Part groups

PNCDescription
85031B Valve Sub-assy, Washer
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85361 Holder, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
