Factory parts data · Europe

Toyota Camry

1988-08 → 1991-06 · chassis SV2#,CV20,VZV21 · catalogue 281540 · Europe

Discontinued model Data version 1992-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

4 part groups · 2 illustrations

Illustrations

Figure MEH511A

MEH511A 1988-08 → —

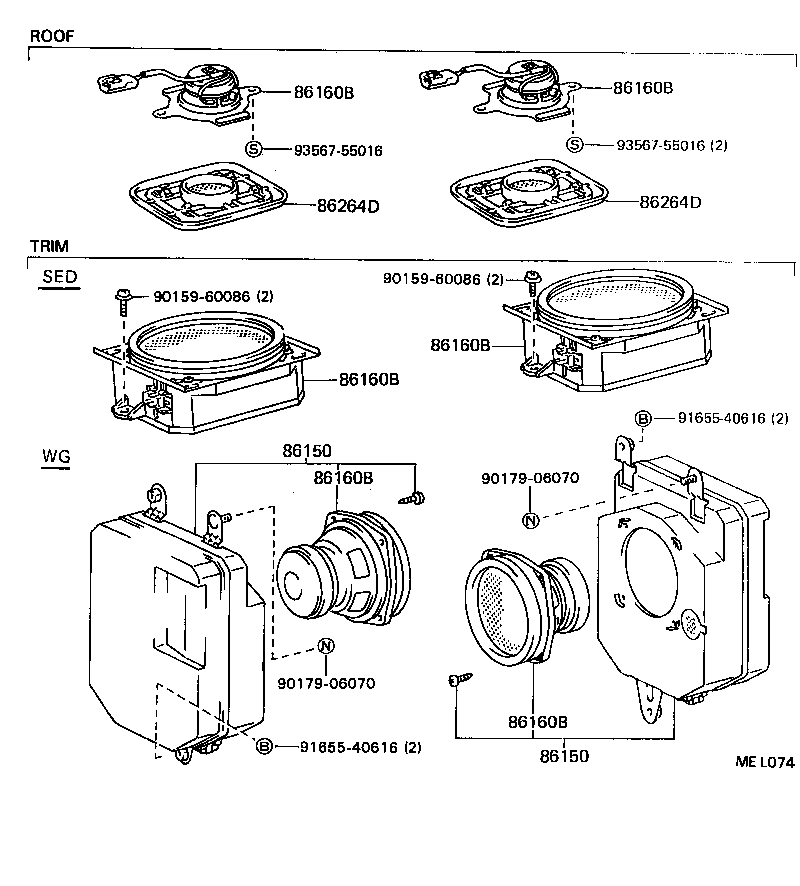

Figure MEL074

MEL074 1988-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86264D	Grille, Speaker, Roof

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
