Toyota Camry (SED)

1991-06 → 1996-08 · chassis SXV1#,VCV1# · catalogue 281550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

22 part groups · 3 illustrations

Illustrations

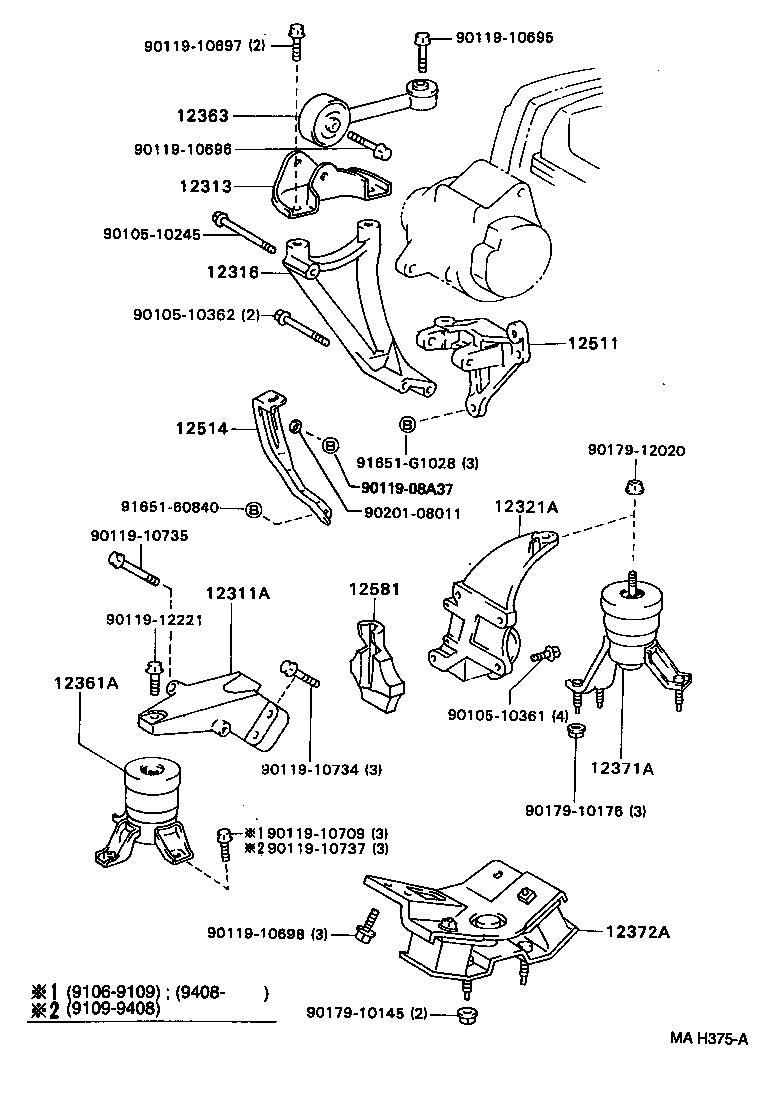

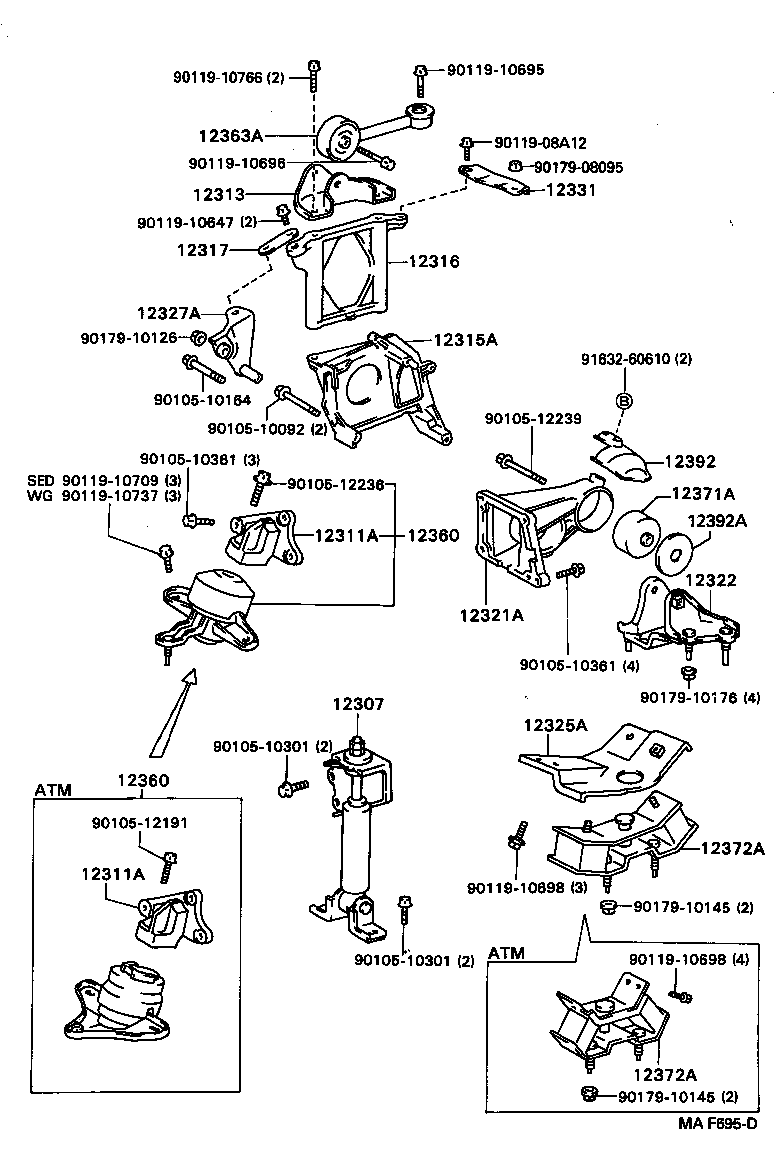

Figure MAH374A MAH374A 1991-06 → — Figure MAH375A MAH375A 1991-06 → — Figure MAF695D MAF695D 1991-06 → —

Part groups

PNCDescription
12307 Absorber Sub-assy, Engine Mounting
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12317 Stay, Engine Mounting, RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12360 Insulator Assy, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12363 Insulator, Engine Mounting, Center
12363A Rod, Engine Moving Control
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12392 Insulator, Engine Mounting Heat, Front LH
12392A Insulator, Engine Mounting Heat, Rear
12511 Bracket, Alternator, NO.1
12514 Bar, Alternator Belt Adjusting
12581 Insulator, Cylinder Block, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
