Toyota Camry (SED)

1991-06 → 1996-08 · chassis SXV1#,VCV1# · catalogue 281550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

21 part groups · 3 illustrations

Illustrations

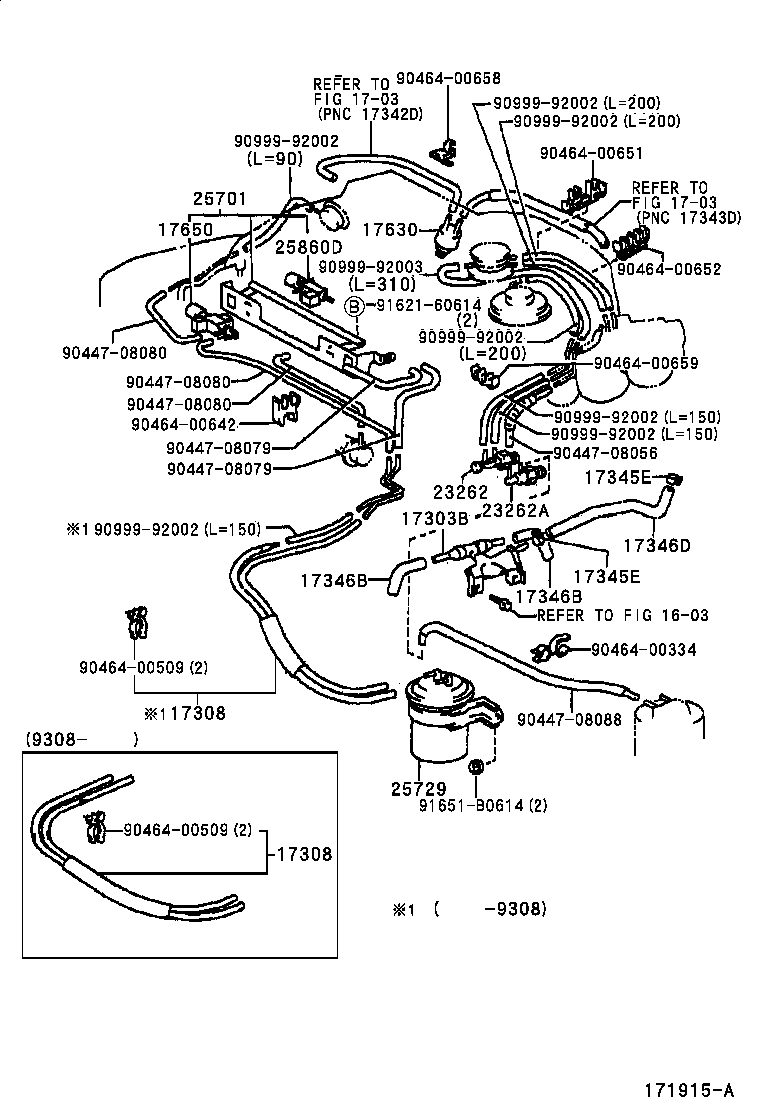

Figure MAE667F MAE667F 1991-06 → — Figure MA9504B MA9504B 1991-06 → — Figure 171915A 171915A 1991-06 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17341D Hose, NO.1(FOR IDLE-UP)
17342B Hose, NO.2(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17345B Hose, NO.5(FOR IDLE-UP)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17347B Hose, Air, NO.7
17361G Tube, Air(FOR IDLE-UP)
17600A Valve Assy, Air By-pass W/Hose
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23262A Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
