Toyota Camry (SED)
1991-06 → 1996-08 · chassis SXV1#,VCV1# · catalogue 281550 · Europe
Discontinued model
Data version 1997-03

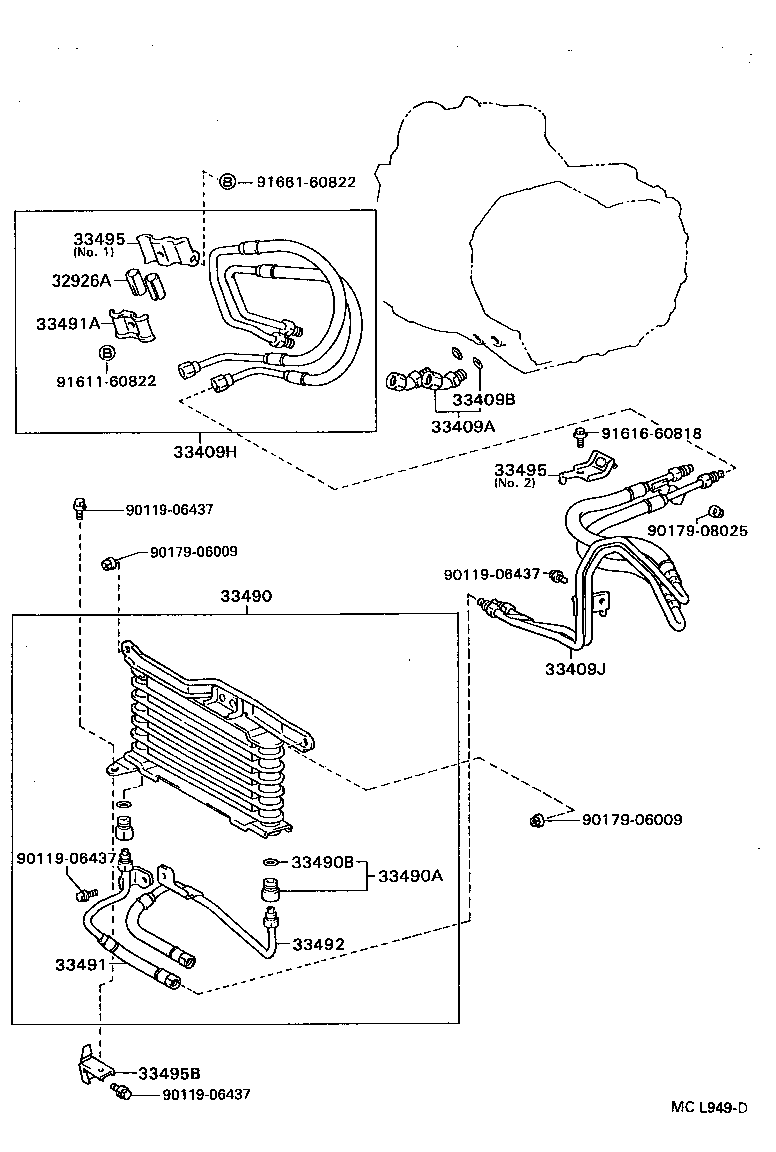

Oil Pump, Oil Cooler & Pipe (MTM)
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32926A | Cushion, Oil Cooler Tube(MTM) |
| 33129A | Pipe, Manual Transmission Oil, NO.1 |
| 33129B | Pipe, Manual Transmission Oil, NO.2 |
| 33129C | Gasket(FOR MANUAL TRANSMISSION OIL PIPE) |
| 33129D | Pipe, Transmission Oil, NO.3 |
| 33129E | Bush(FOR MANUAL TRANSMISSION OIL PIPE) |
| 33139A | Cover, Oil Pump(FOR MANUAL TRANSMISSION) |
| 33139B | Bolt(FOR MANUAL TRANSMISSION OIL PUMP COVER) |
| 33139C | Bolt(FOR TRANSMISSION OIL PUMP COVER) |
| 33139D | Screw(FOR TRANSMISSION OIL PUMP COVER) |
| 33172A | By-pass, Transmission Oil Pump |
| 33405A | Rotor Sub-assy, Manual Transmission Oil Pump |
| 33407 | Gear Sub-assy, Manual Transmission Oil Pump Drive |
| 33408 | Strainer Sub-assy, Manual Transmission Oil |
| 33408A | Ring, O (FOR MANUAL TRANSMISSION OIL STRAINER) |
| 33409A | Elbow (FOR MANUAL TRANSMISSION OIL COOLER TUBE) |
| 33409B | Ring, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW) |
| 33409H | Tube Sub-assy, Transmission Oil Cooler, NO.1 |
| 33409J | Tube Sub-assy, Transmission Oil Cooler, NO.2 |
| 33470 | Pump Assy, Manual Transmission Oil |
| 33470A | Ball (FOR MANUAL TRANSMISSION OIL PUMP) |
| 33470B | Spring, Compression (FOR MANUAL TRANSMISSION OIL PUMP) |
| 33470F | Gasket (FOR TRANSMISSION OIL PUMP) |
| 33490 | Cooler Assy, Manual Transmission Oil |
| 33490A | Union (FOR MANUAL TRANSMISSION OIL COOLER TUBE) |
| 33490B | Ring, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE UNION) |
| 33491 | Tube, Manual Transmission Oil Cooler, NO.1 |
| 33491A | Clamp, Manual Transmission Oil Cooler Tube, NO.1 |
| 33492 | Tube, Manual Transmission Oil Cooler, NO.2 |
| 33495 | Clamp, Manual Transmission Oil Cooler Tube, NO.2 |
| 33495B | Clamp, Manual Transmission Oil Cooler Tube, NO.3 |
| 33593B | Holder, Spring (FOR MANUAL TRANSMISSION OIL PUMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
