Toyota Camry (SED)
1991-06 → 1996-08 · chassis SXV1#,VCV1# · catalogue 281550 · Europe
Discontinued model
Data version 1997-03

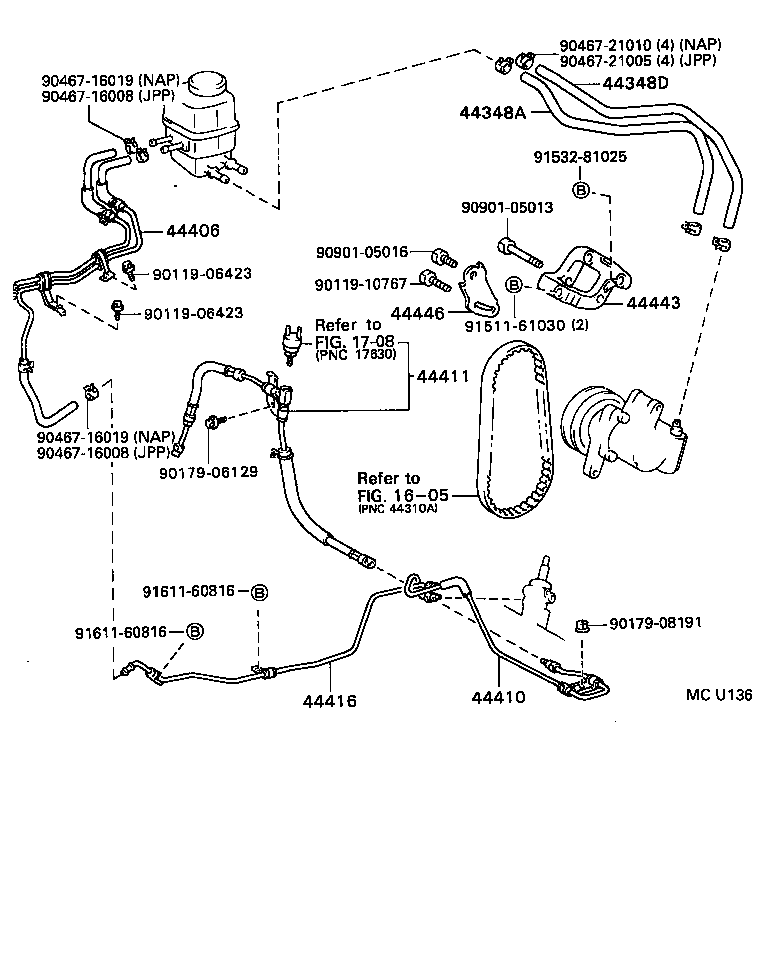

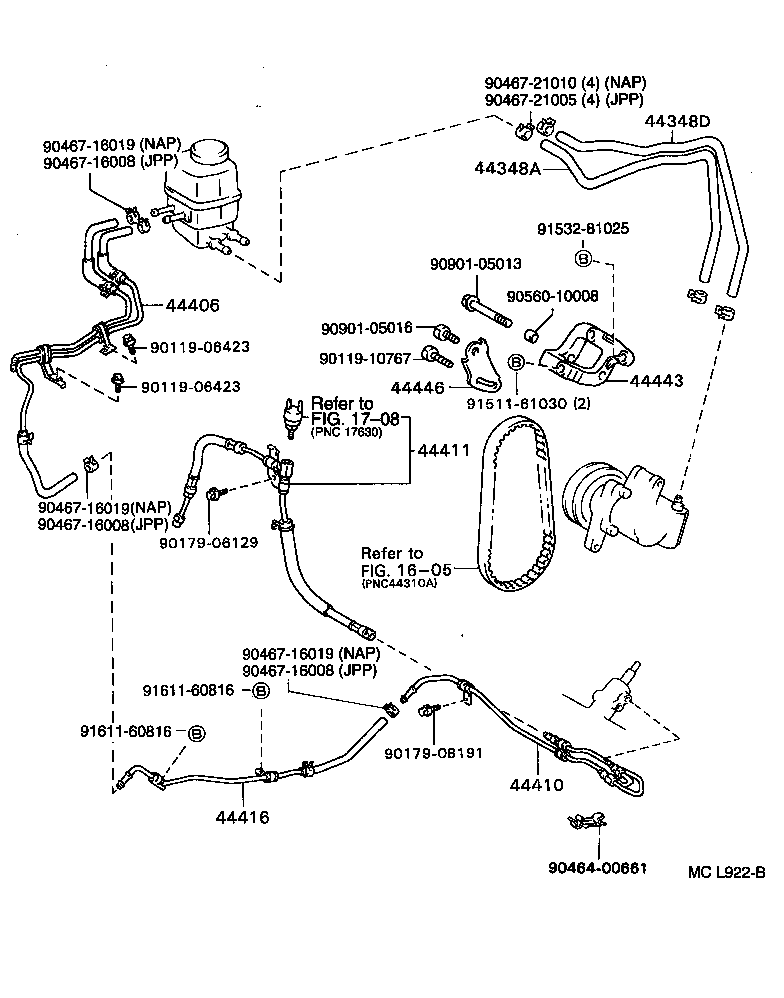

Power Steering Tube
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44348D | Hose, Oil Reservoir TO Pump, NO.2 |
| 44406 | Tube Sub-assy, Return |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44411 | Hose, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
