Toyota Camry (SED)

1991-06 → 1996-08 · chassis SXV1#,VCV1# · catalogue 281550 · Europe

Discontinued model Data version 1997-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 2 illustrations

Illustrations

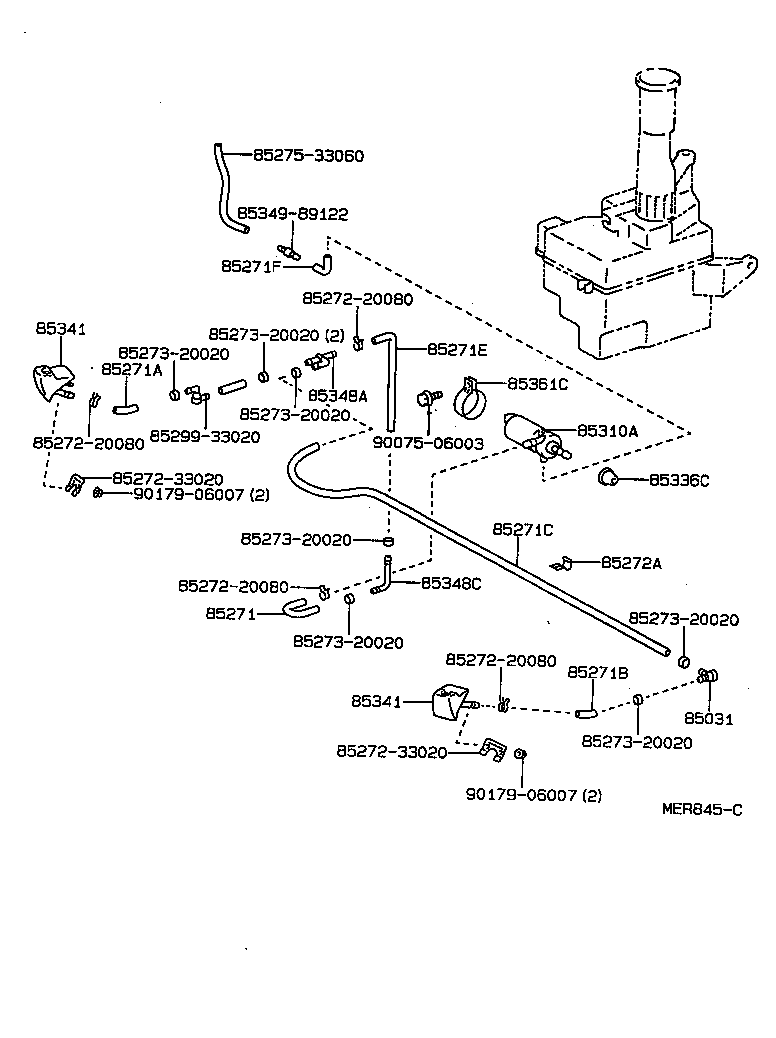

Figure MEX205 MEX205 1991-06 → 1993-08 Figure MER845C MER845C 1993-08 → 1996-08

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85271E Hose, Headlamp Cleaner, NO.6
85271F Hose, Headlamp Cleaner, NO.7
85272A Clamp, Headlamp Cleaner, NO.1
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85336C Packing, Headlamp Cleaner Motor
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348C Joint, Headlamp Cleaner Hose, NO.3
85361C Bracket, Washer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
