Factory parts data · Europe

Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

Figure 11C229

11C229 1996-08 → 1997-10

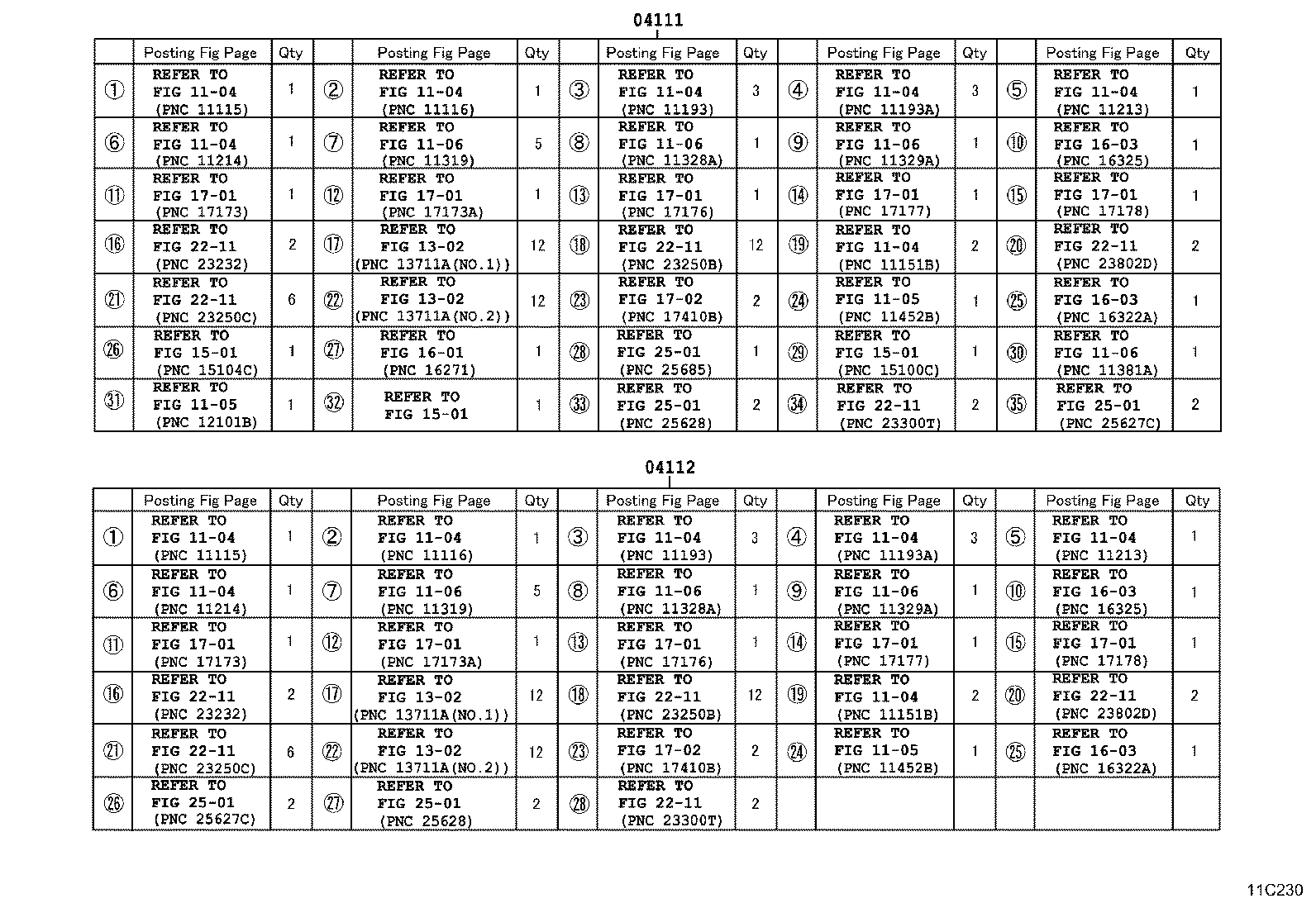

Figure 11C230

11C230 1996-08 → 1997-10

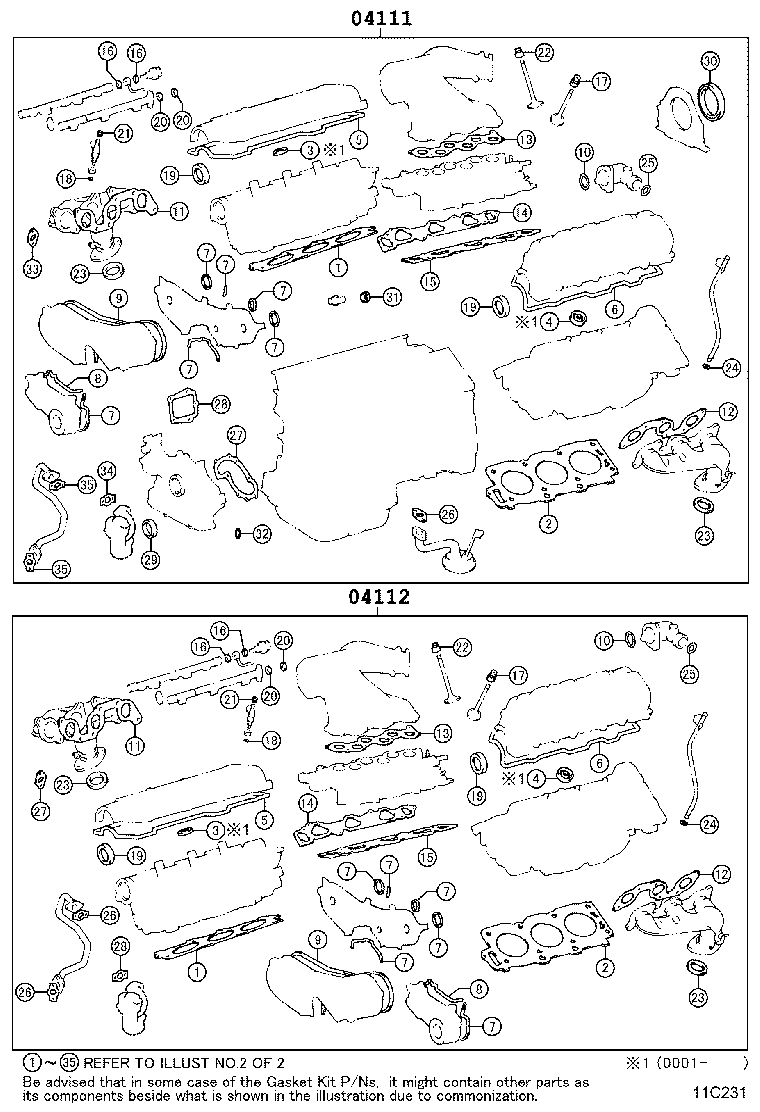

Figure 11C231

11C231 1997-10 → —

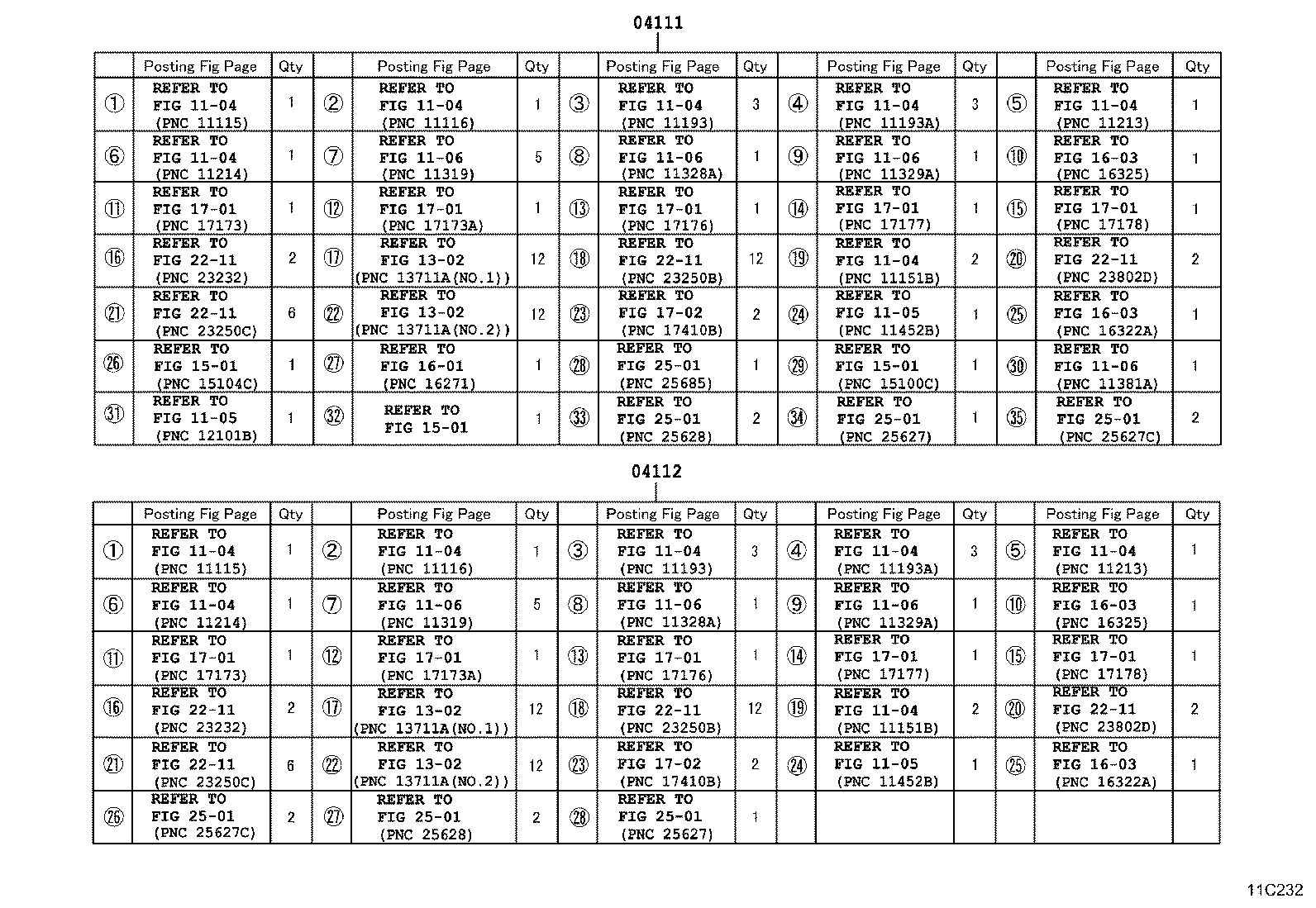

Figure 11C232

11C232 1997-10 → —

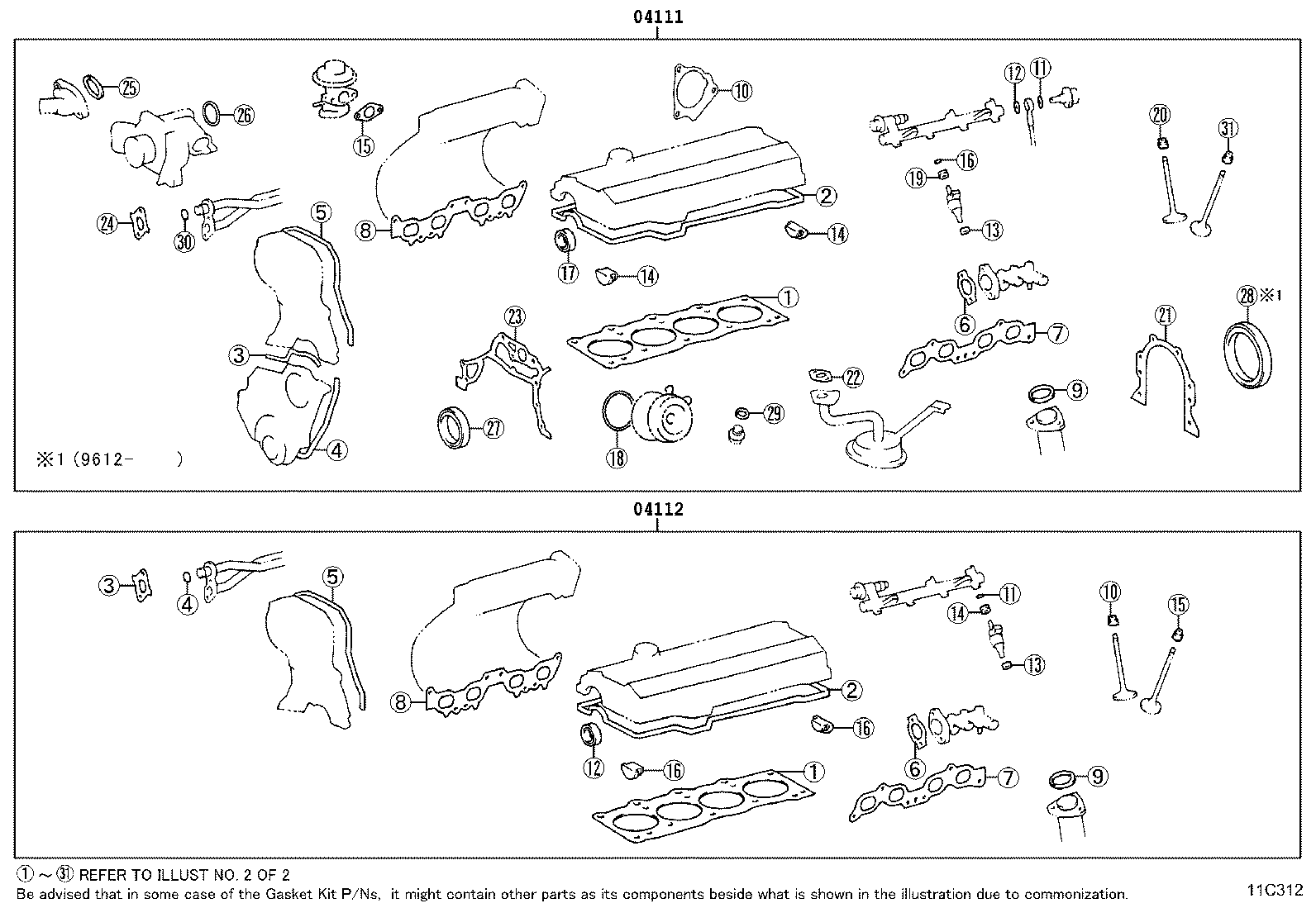

Figure 11C312

11C312 1996-08 → —

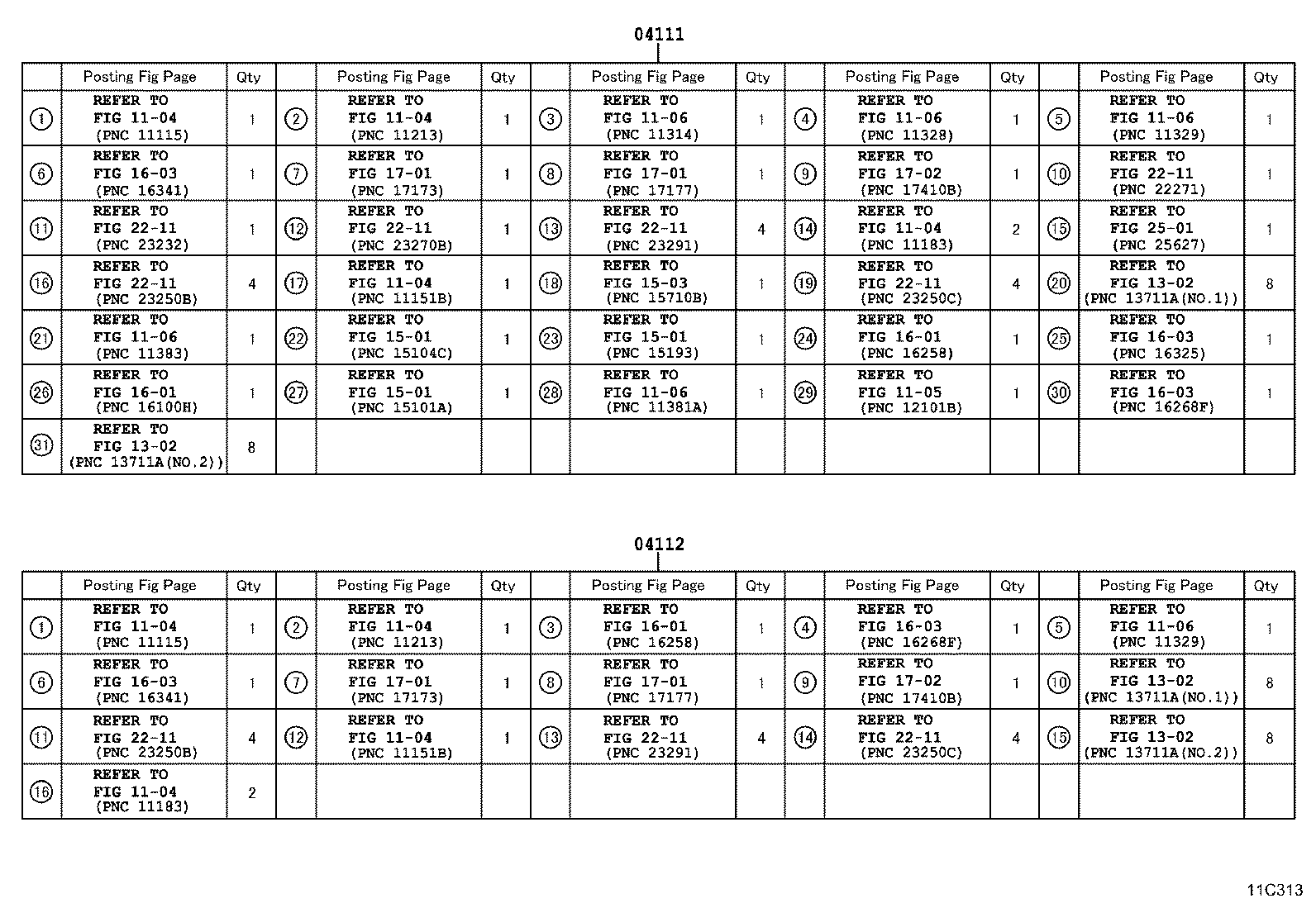

Figure 11C313

11C313 1996-08 → —

Part groups

PNC	Description
04111	Gasket Kit, Engine Overhaul
04112	Gasket Kit, Engine Valve Grind

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
