Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11

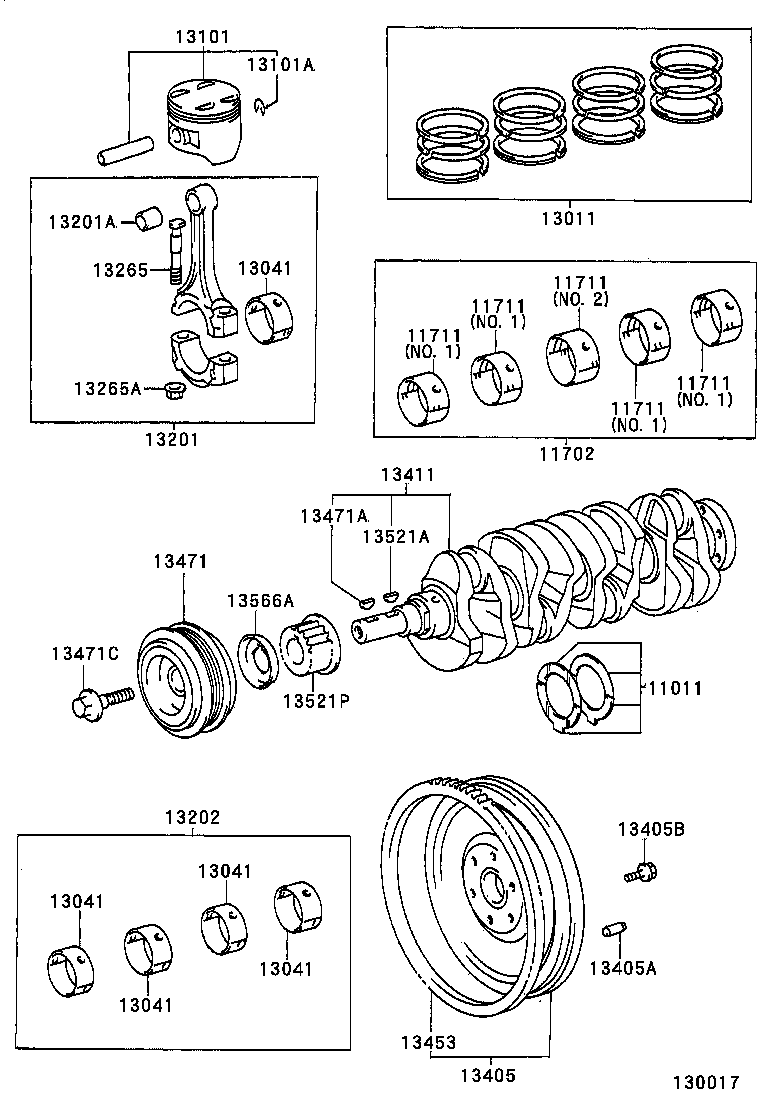

Crankshaft & Piston
27 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11011 | Washer Set, Crankshaft Thrust |
| 11485 | Spacer, Balanceshaft Housing |
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13101 | Piston Sub-assy, W/Pin |
| 13101A | Ring, Hole Snap(FOR PISTON PIN) |
| 13201 | Rod Sub-assy, Connecting |
| 13201A | Bush(FOR CONNECTING ROD SMALL END) |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13265A | Nut, Hexagon(FOR CONNECTING ROD BOLT) |
| 13405 | Flywheel Sub-assy |
| 13405A | Pin, Straight(FOR FLYWHEEL) |
| 13405B | Bolt, Flywheel Setting |
| 13411 | Crankshaft |
| 13453 | Gear, Flywheel Ring |
| 13471 | Pulley, Crankshaft |
| 13471A | Key, Crankshaft(FOR CRANKSHAFT PULLEY SET) |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13521A | Key(FOR CRANKSHAFT TIMING GEAR) |
| 13521P | Pulley, Crankshaft Timing |
| 13566A | Guide, Timing Belt |
| 13567 | Guide, Timing Belt, NO.2 |
| 13620 | Balancer Assy, Engine |
| 13620A | Bolt, W/Washer(FOR BALANCER ASSY SET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
