Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11

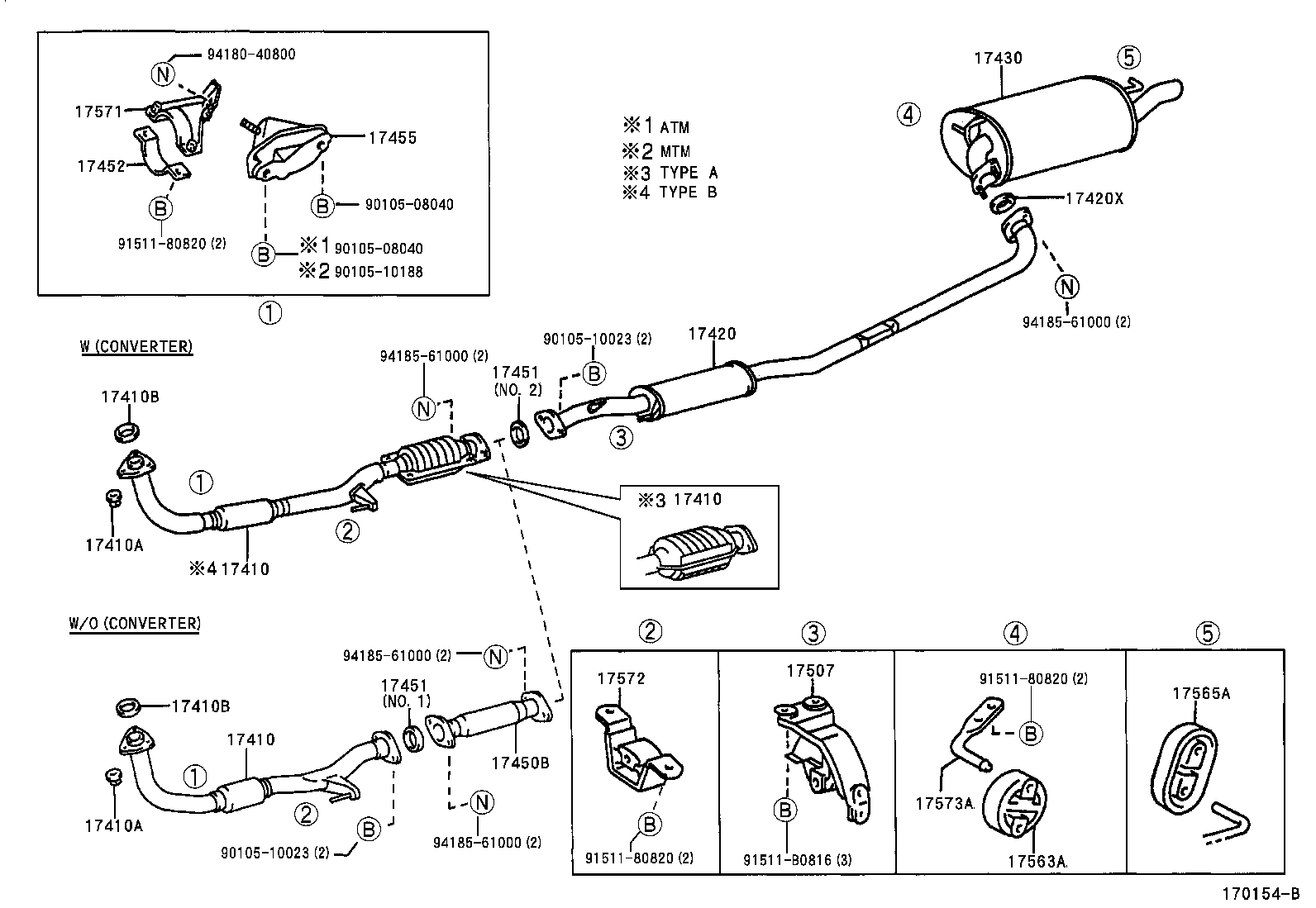

Exhaust Pipe
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17450B | Pipe Assy, Exhaust, Front NO.2 |
| 17451 | Gasket, Exhaust Pipe |
| 17452 | Clamp, Exhaust Pipe |
| 17455 | Bracket, Exhaust Pipe |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17568 | Stay, Exhaust Pipe Support |
| 17569B | Stay, Exhaust Pipe Support, NO.2 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17572 | Bracket, Exhaust Pipe NO.1 Support |
| 17573A | Bracket, Exhaust Pipe Support, NO.3 |
| 18435A | Protector, Monolithic Converter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
