Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11

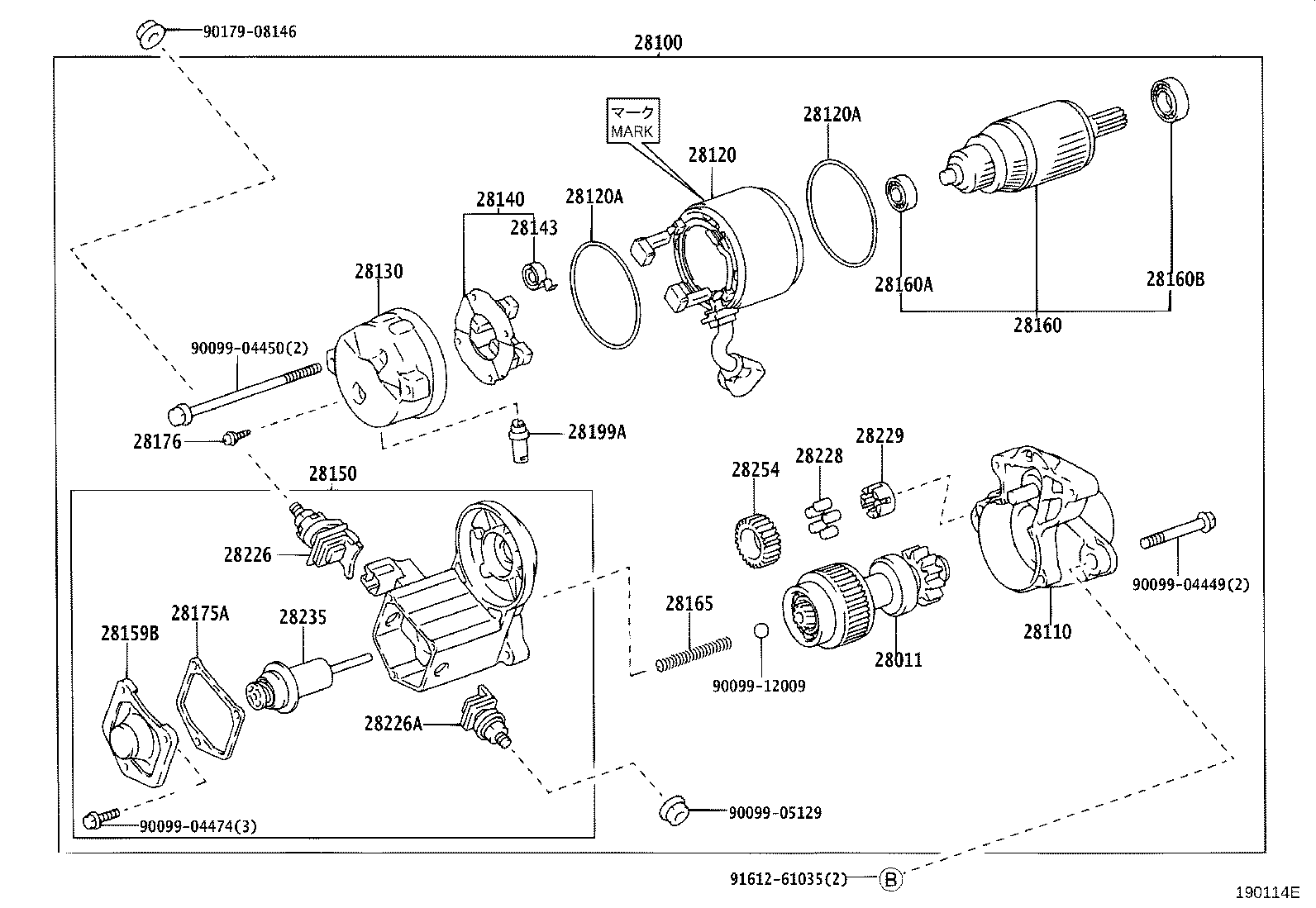

Starter
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28011 | Clutch Sub-assy, Starter |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28120 | Yoke Assy, Starter |
| 28120A | Ring, O(FOR STARTER YOKE) |
| 28130 | Frame Assy, Starter Commutator End |
| 28140 | Holder Assy, Starter Brush |
| 28143 | Spring, Starter Brush |
| 28150 | Switch Assy, Magnet Starter |
| 28159B | Cover, Magnet Switch |
| 28160 | Armature Assy, Starter |
| 28160A | Bearing, Starter Armature |
| 28160B | Bearing, Starter Armature, NO.2 |
| 28165 | Spring, Starter Magnet Switch Return |
| 28175A | Gasket, Magnet Switch Cover |
| 28176 | Screw, Starter |
| 28199A | Protector, Dust Starter |
| 28226 | Starter Kit, Battery Terminal |
| 28226A | Starter Kit, Motor Terminal |
| 28228 | Roller, Starter Idle Gear Clutch |
| 28229 | Retainer, Starter Idle Gear |
| 28235 | Plunger, Magnet Switch |
| 28254 | Pinion, Starter Idle Gear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
