Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

15 part groups · 3 illustrations

Illustrations

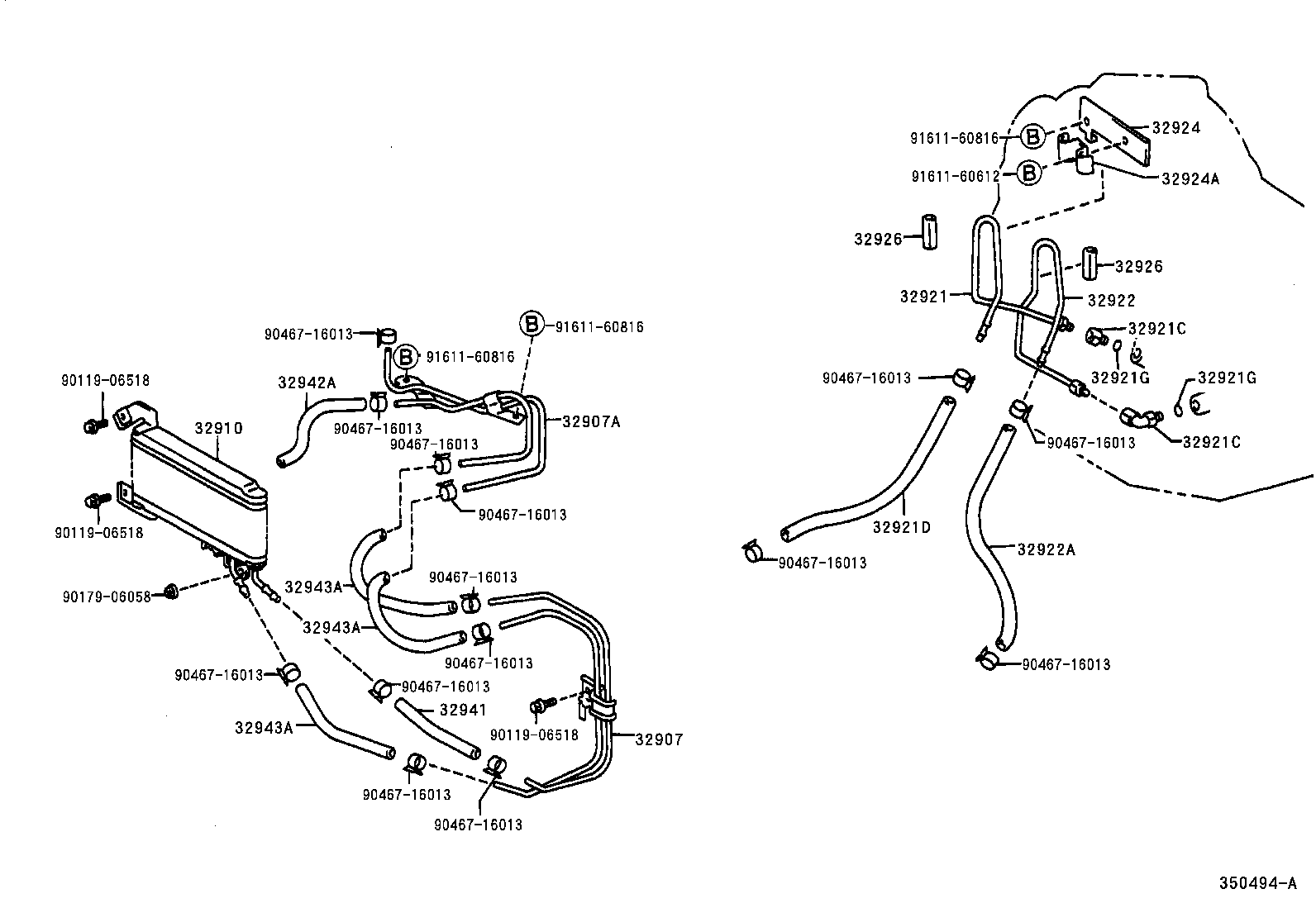

Figure 350247A 350247A 1996-08 → — Figure 350494A 350494A 1996-08 → — Figure 350242A 350242A 1996-08 → —

Part groups

PNCDescription
32907 Tube Sub-assy, Oil Cooler Outlet, NO.2
32907A Tube, Oil Cooler
32910 Cooler Assy, Oil
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921D Hose(FOR OIL COOLER INLET)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32924 Clamp, Oil Cooler Tube, NO.2
32924A Clamp(FOR OIL COOLER TUBE, NO.2)
32926 Cushion, Oil Cooler Tube(ATM)
32941 Hose, Oil Cooler Inlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32943A Hose, Transmission Oil Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
