Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11

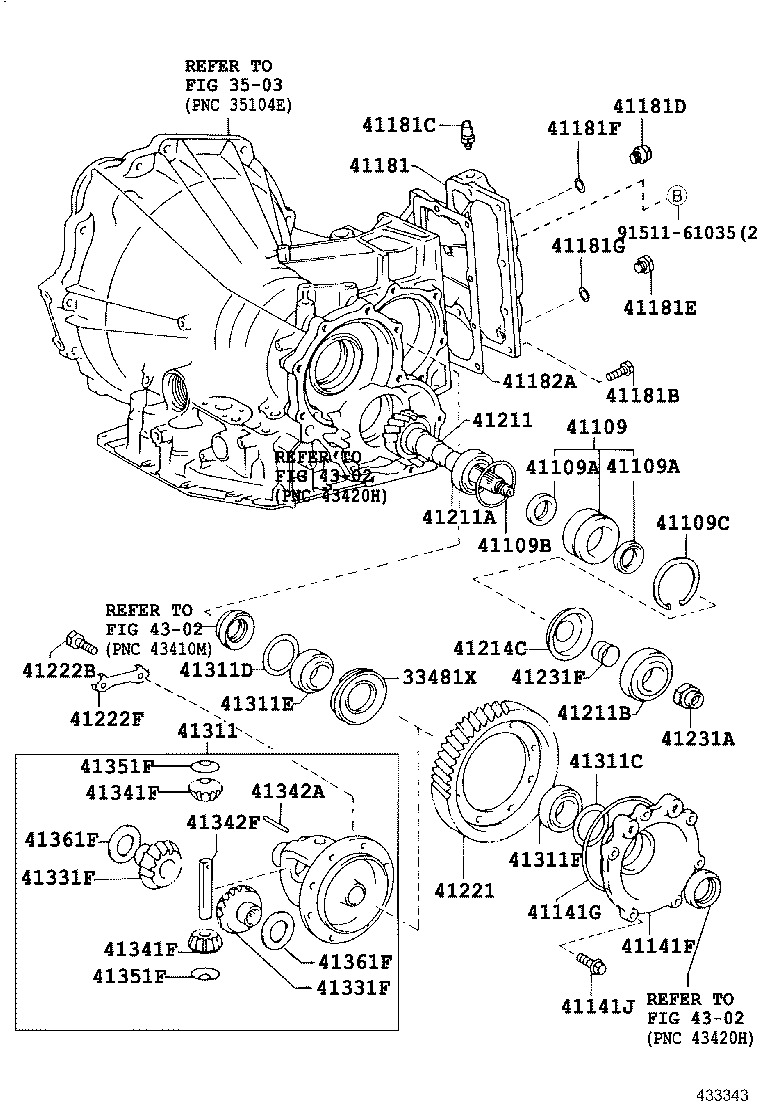

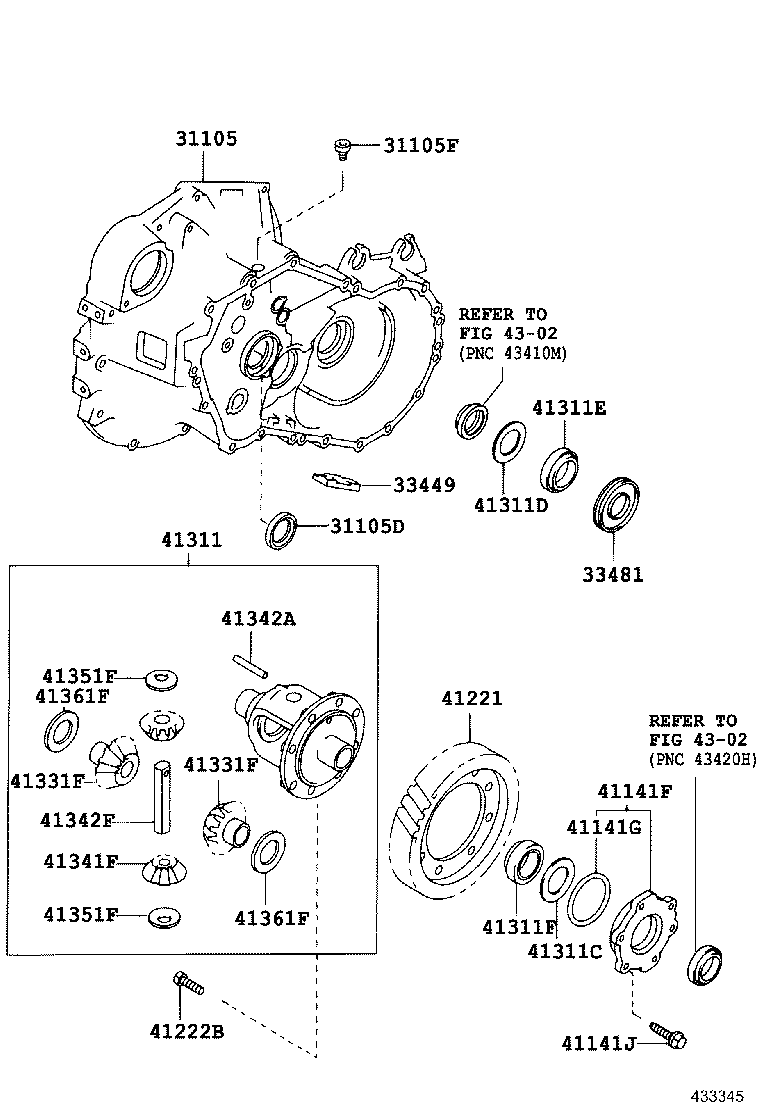

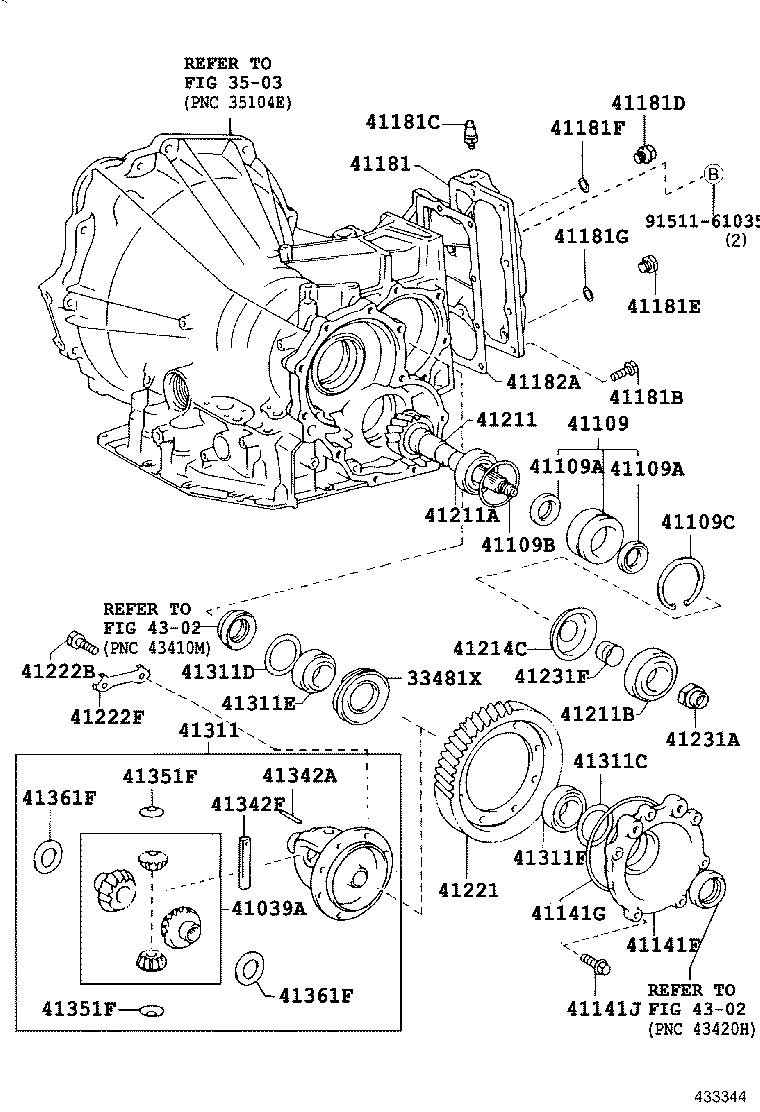

Front Axle Housing & Differential
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105 | Case Sub-assy, Transaxle(MTM) |
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 31105F | Plug(FOR TRANSAXLE CASE) |
| 33143C | Baffle, Front Differential Oil |
| 33449 | Magnet, Transmission |
| 33481 | Gear, Speedometer Drive (MTM) |
| 33481X | Gear, Speedometer Drive |
| 41039A | Gear Kit, Differential |
| 41107 | Retainer Sub-assy, Front Differential Oil Seal |
| 41107B | Bolt (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER) |
| 41109 | Cage Sub-assy, Differential Drive Pinion Bearing |
| 41109A | Seal, Oil (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109B | Ring, O (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE) |
| 41109C | Ring, Hole Snap (FOR DIFF. DRIVE PINION BEARING CAGE) |
| 41141F | Retainer, Front Differential Side Bearing |
| 41141G | Ring, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41141J | Bolt(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER) |
| 41181 | Cover, Front Differential Carrier |
| 41181B | Bolt (FOR FRONT DIFFERENTIAL CARRIER COVER SETTING) |
| 41181C | Plug, Breather (FOR FRONT DIFFERENTIAL CARRIER COVER) |
| 41181D | Plug (FOR FRONT DIFFERENTIAL FILLER) |
| 41181E | Plug (FOR FRONT DIFFERENTIAL DRAIN) |
| 41181F | Gasket (FOR FRONT DIFFERENTIAL FILLER PLUG) |
| 41181G | Gasket (FOR FRONT DIFFERENTIAL DRAIN PLUG) |
| 41182A | Gasket, Differential Carrier Cover |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41214C | Slinger, Front Differential Drive Pinion Oil |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41222F | Plate, Fornt Differential Ring Gear Set Bolt Lock |
| 41231A | Nut, Drive Pinion Lock |
| 41231F | Spacer, Front Differential Drive Pinion Bearing |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41331F | Gear, Front Differential Side |
| 41341F | Pinion, Front Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
