Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

14 part groups · 2 illustrations

Illustrations

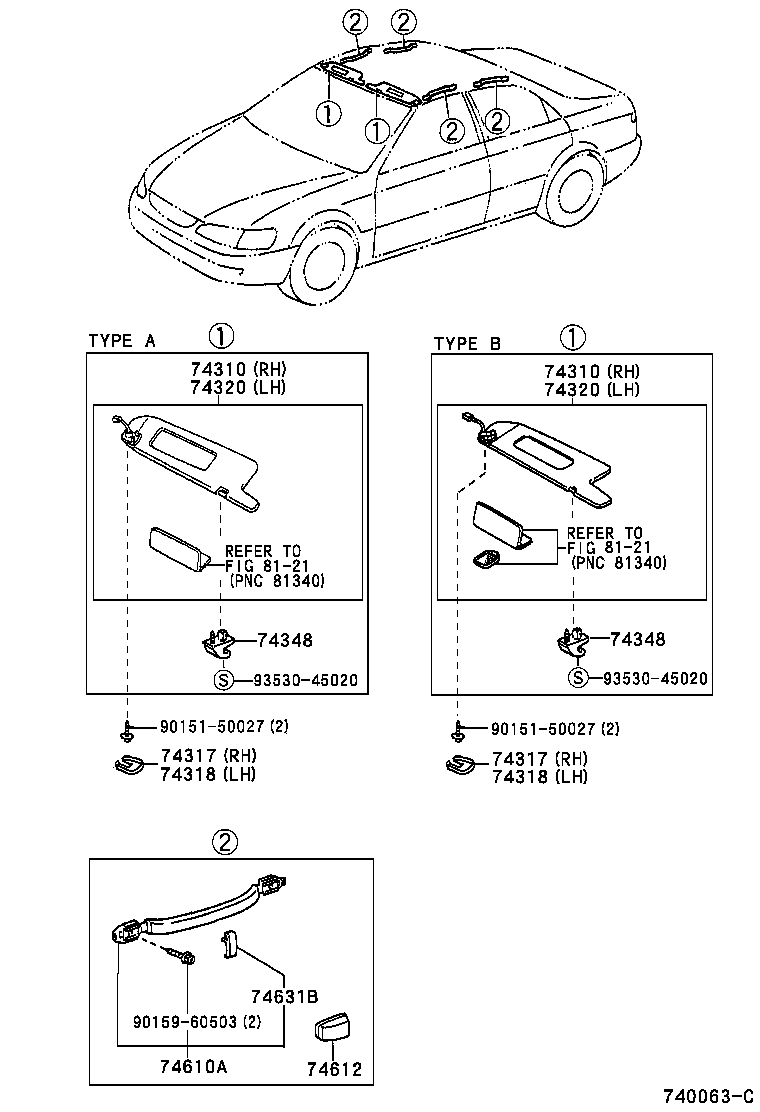

Figure 740062A 740062A 1996-08 → — Figure 740063C 740063C 1996-08 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74241 Plug, Front Door Armrest, RH
74242 Plug, Front Door Armrest, LH
74248 Plug, Rear Door Armrest, RH
74249 Plug, Rear Door Armrest, LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74631B Hook, Coat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
