Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

14 part groups · 2 illustrations

Illustrations

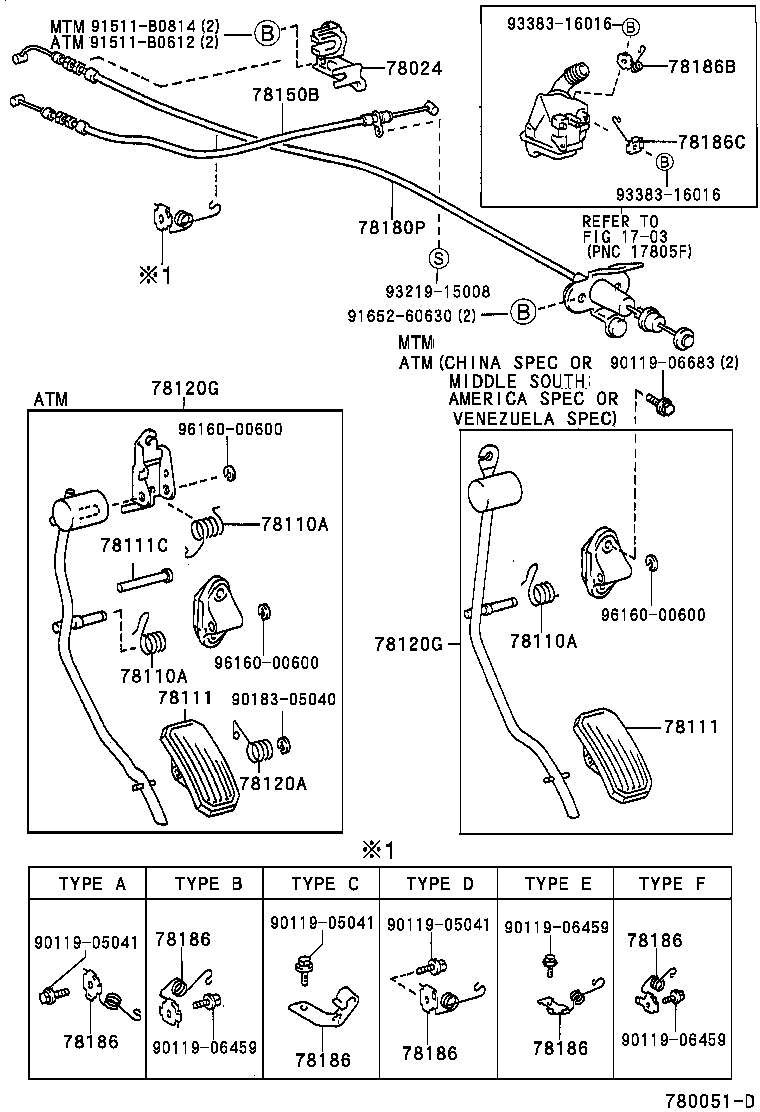

Figure 780050C 780050C 1996-08 → — Figure 780051D 780051D 1996-08 → —

Part groups

PNCDescription
78024 Bracket Sub-assy, Accelerator Control Cable
78110A Spring (FOR ACCELERATOR PEDAL ROD)
78111 Pedal, Accelerator
78111C Pin (FOR ACCELERATOR PEDAL)
78120A Spring, Compression (FOR ACCELERATOR LINK ROD)
78120G Rod Assy, Accelerator Pedal
78150B Cable Assy, Accelerator Auto Drive
78171 Bracket, Accelerator Control NO.2 Rod, RH
78180P Cable Assy, Accelerator Control
78184B Bracket, Accelerator Control Cable
78186 Support, Accelerator Control Cable, NO.1
78186B Support, Accelerator Control Cable NO.2
78186C Support, Accelerator Control Cable NO.3
78193A Support, Accelerator Control Cable, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
