Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11

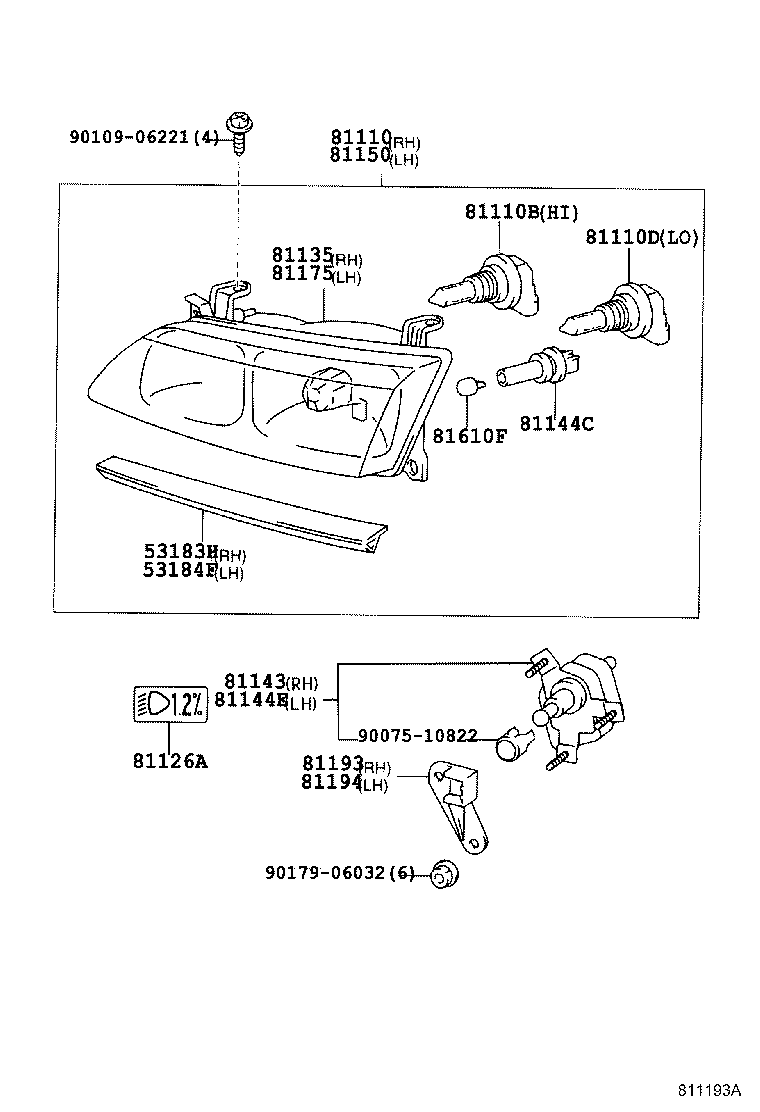

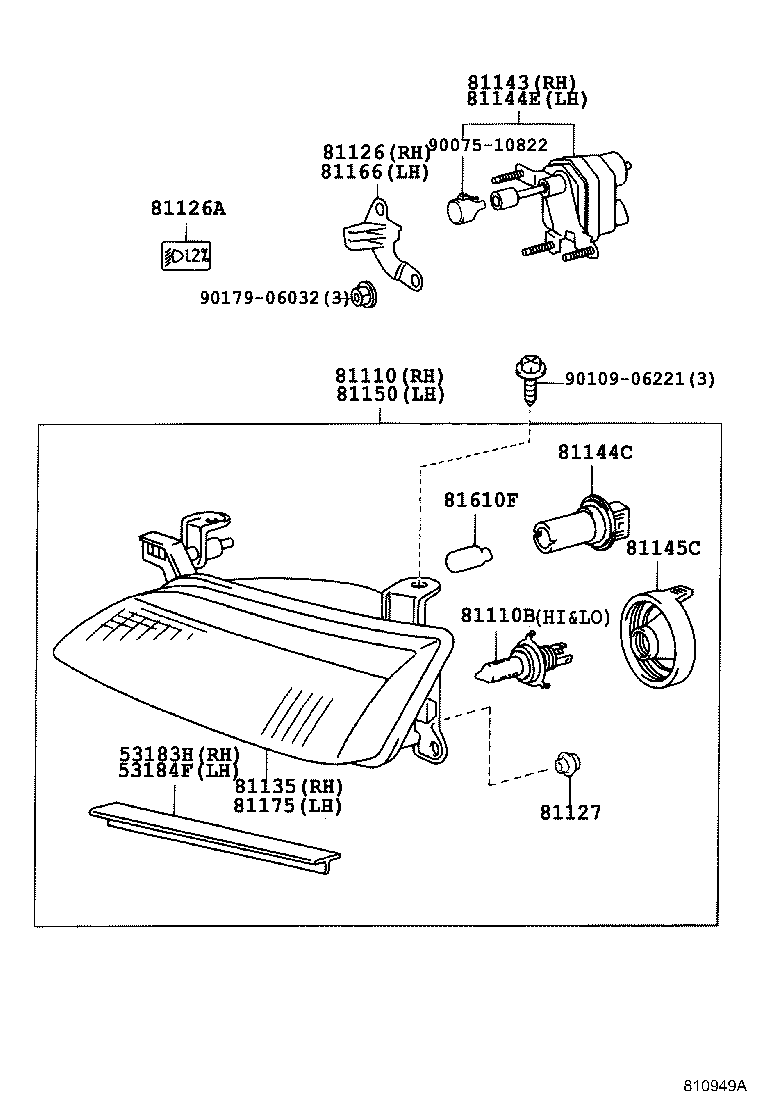

Headlamp
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81126 | Plate, Headlamp |
| 81126A | Plate, Headlamp, RH |
| 81127 | Bearing, Headlamp, NO.1 |
| 81135 | Unit Assy, Headlamp, RH |
| 81139 | Cover, Headlamp Socket |
| 81143 | Motor, Head Lamp |
| 81144C | Cover, Headlamp Socket |
| 81144E | Motor, Head Lamp, LH |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81166 | Plate, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
