Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

39 part groups · 13 illustrations

Illustrations

Figure 820142H

820142H 1996-08 → —

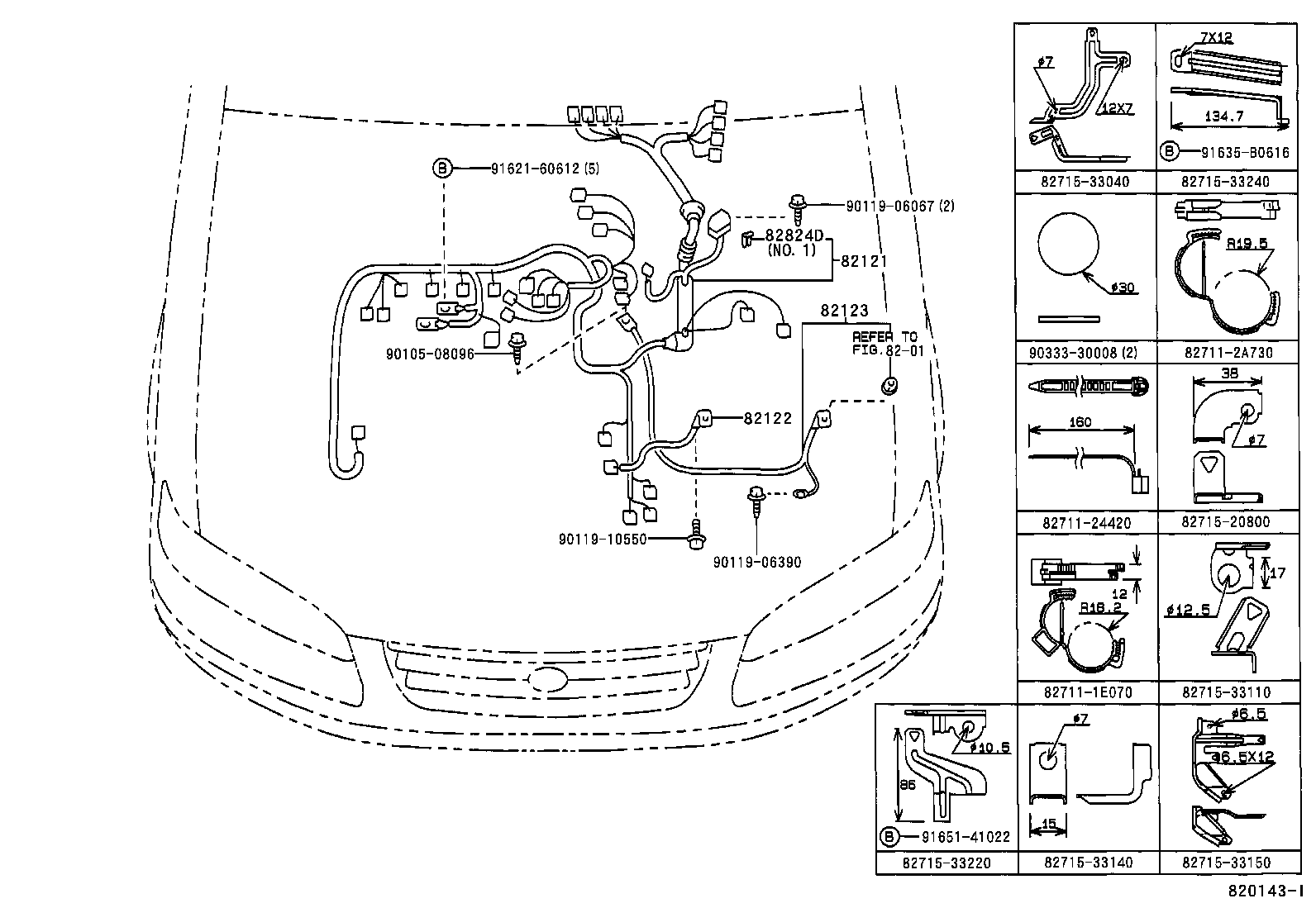

Figure 820143I

820143I 1996-08 → —

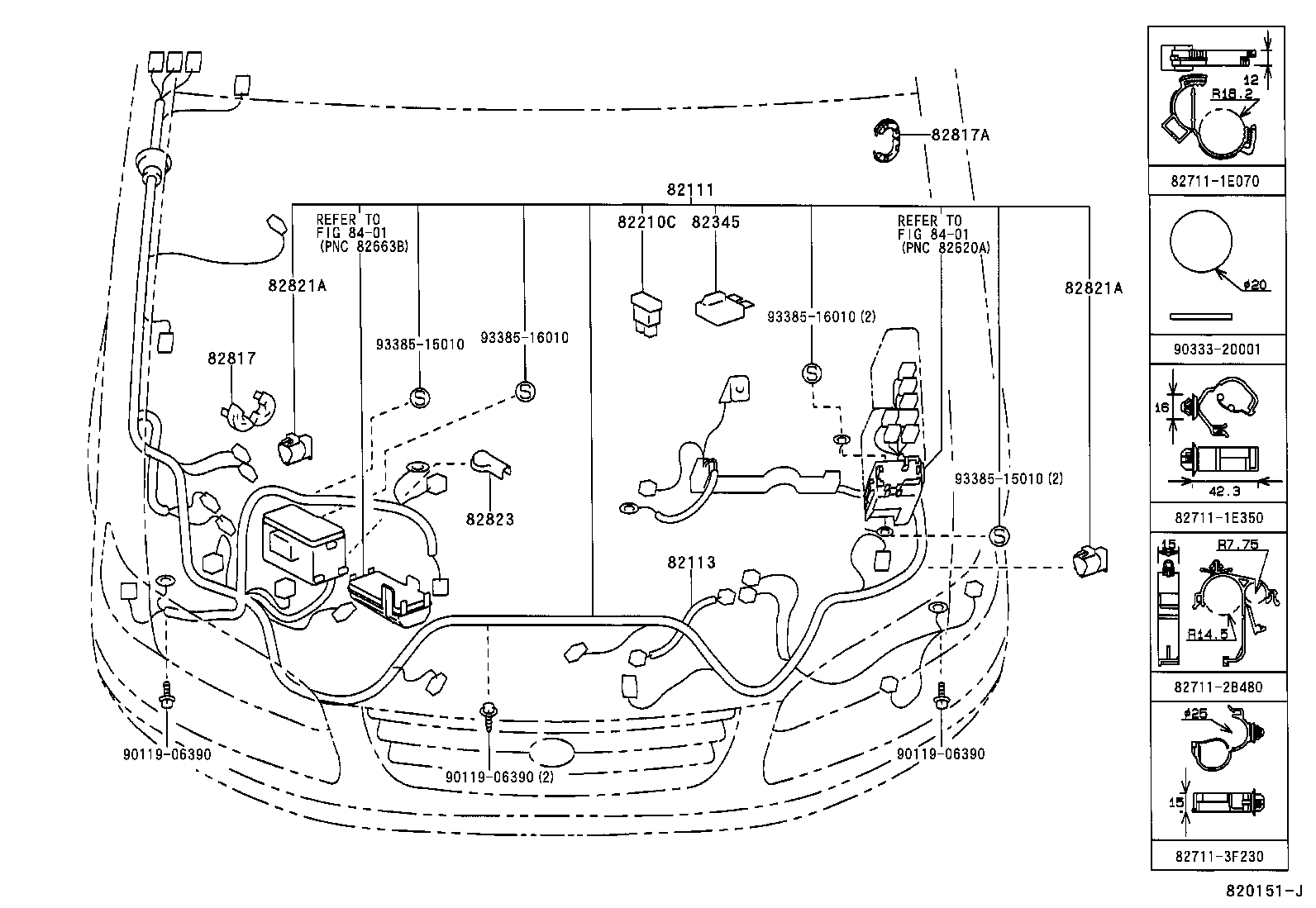

Figure 820151J

820151J 1996-08 → —

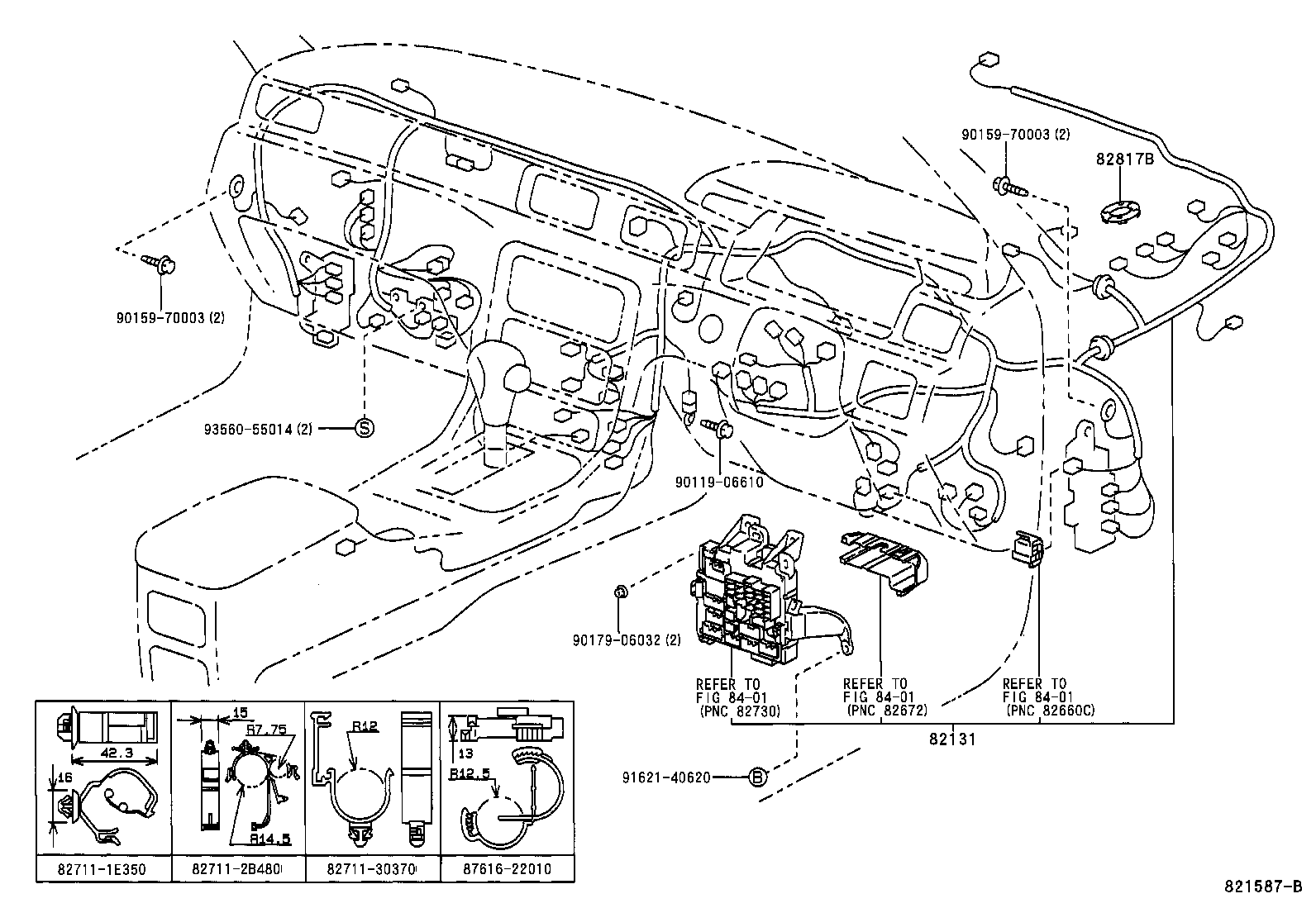

Figure 821587B

821587B 1996-08 → —

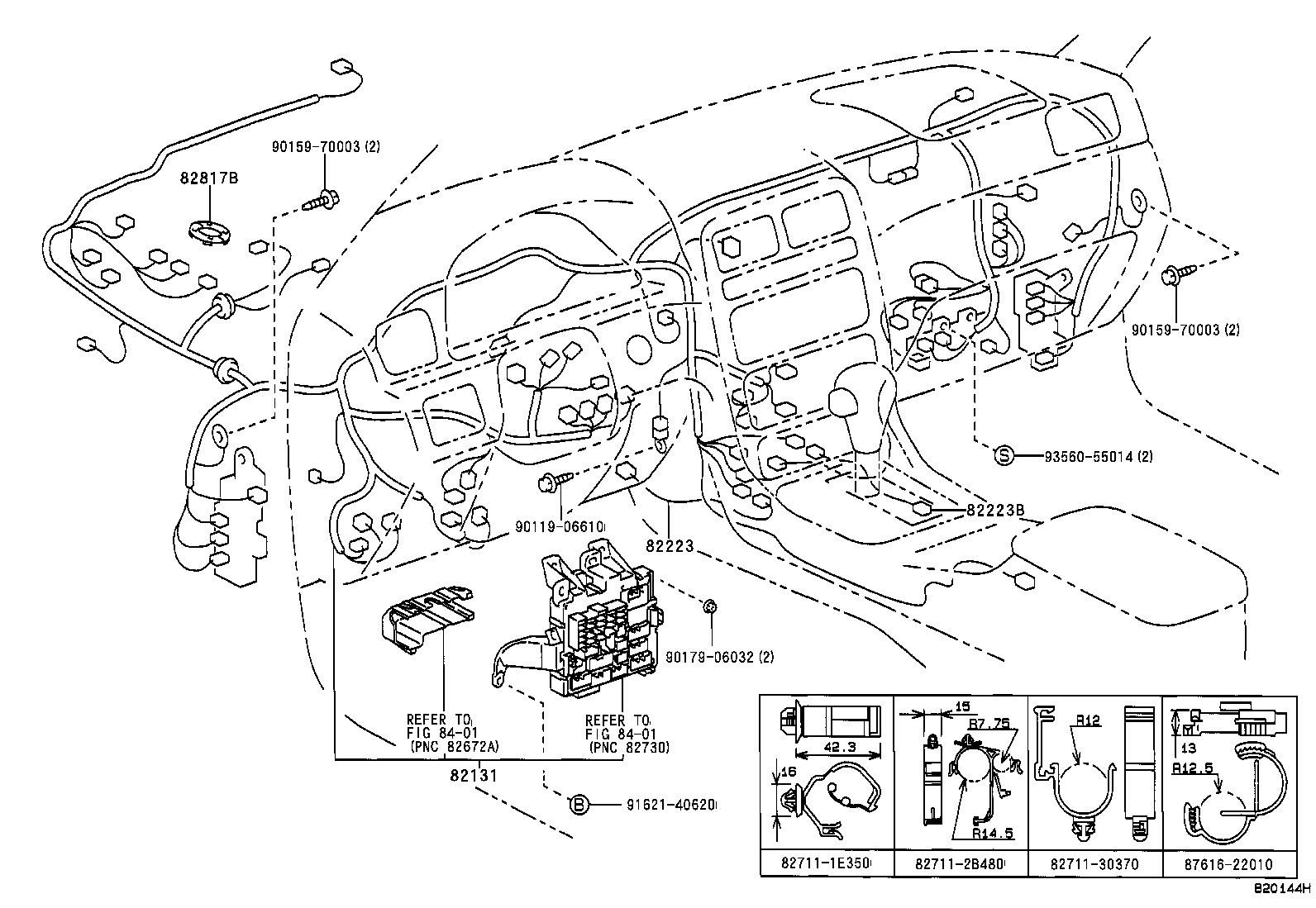

Figure 820144H

820144H 1996-08 → —

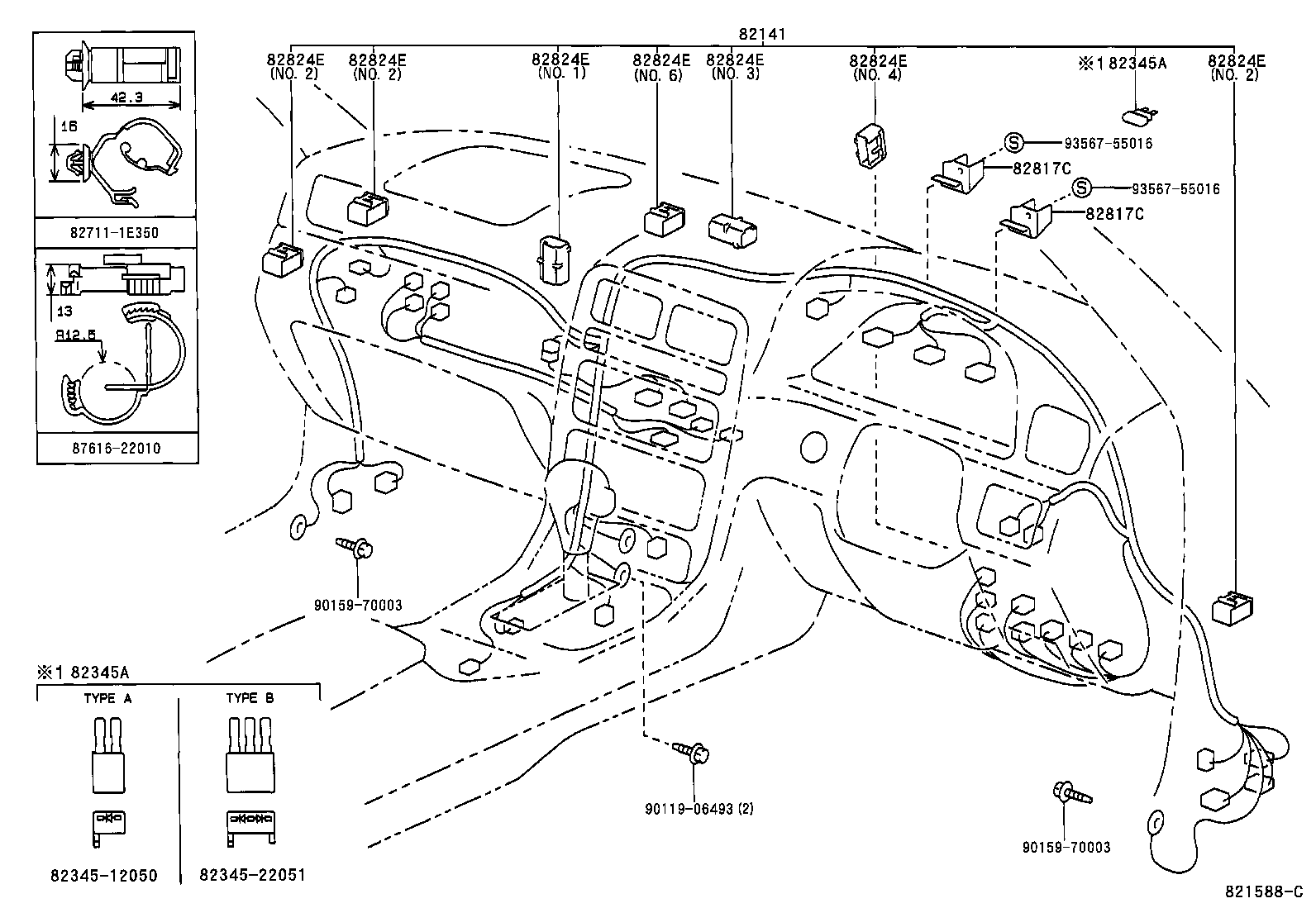

Figure 821588C

821588C 1996-08 → —

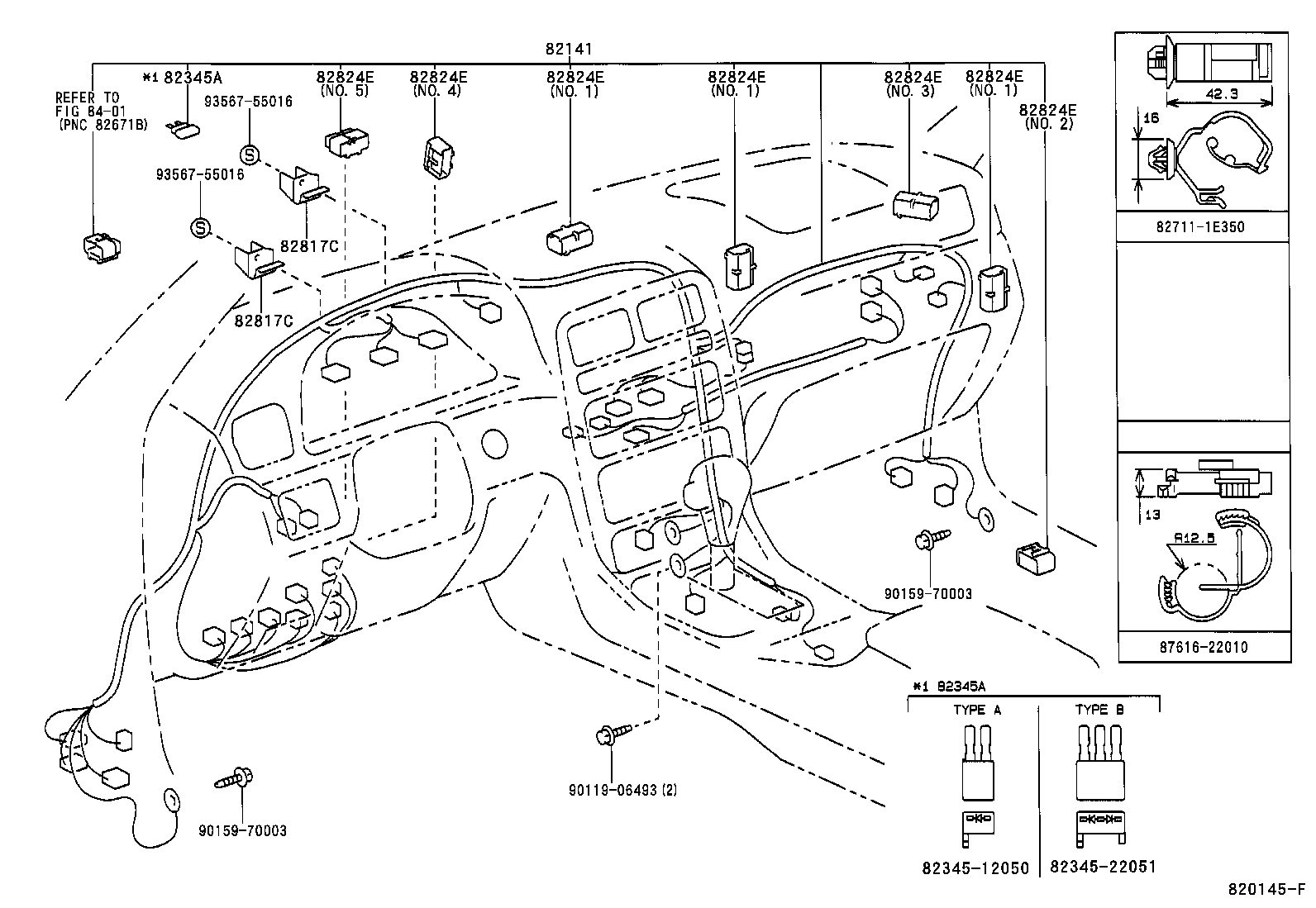

Figure 820145F

820145F 1996-08 → —

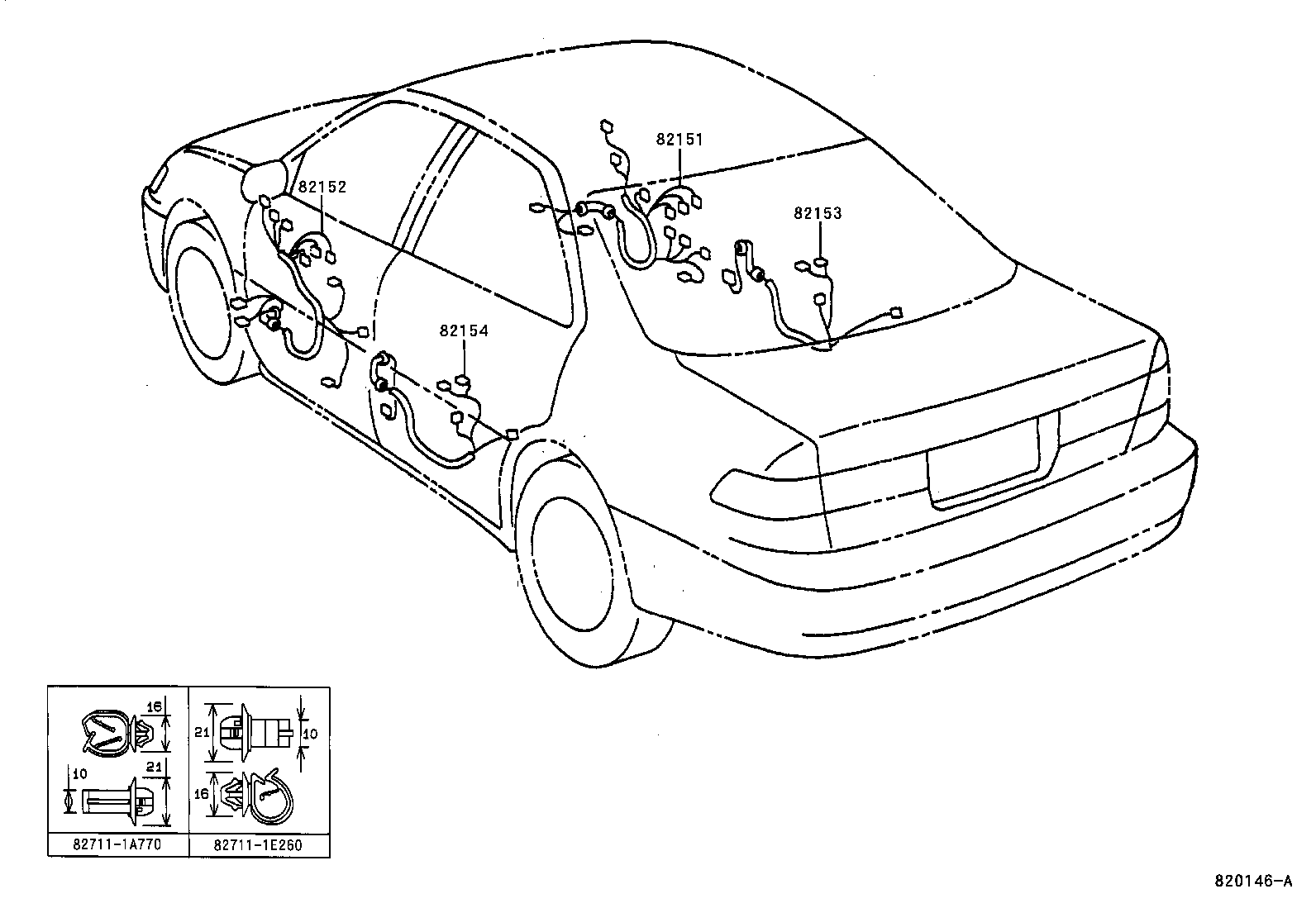

Figure 820146A

820146A 1996-08 → —

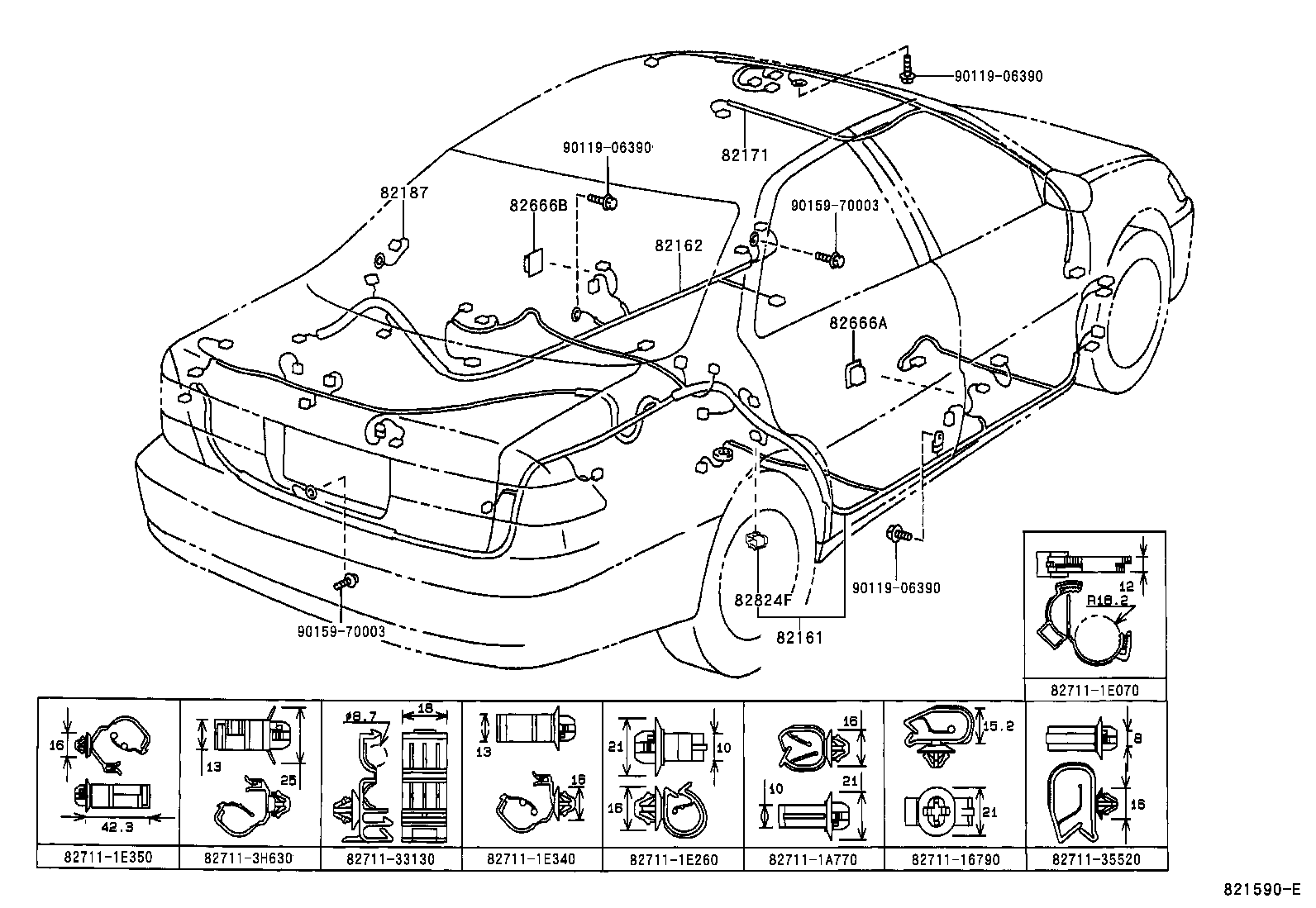

Figure 821590E

821590E 1996-08 → —

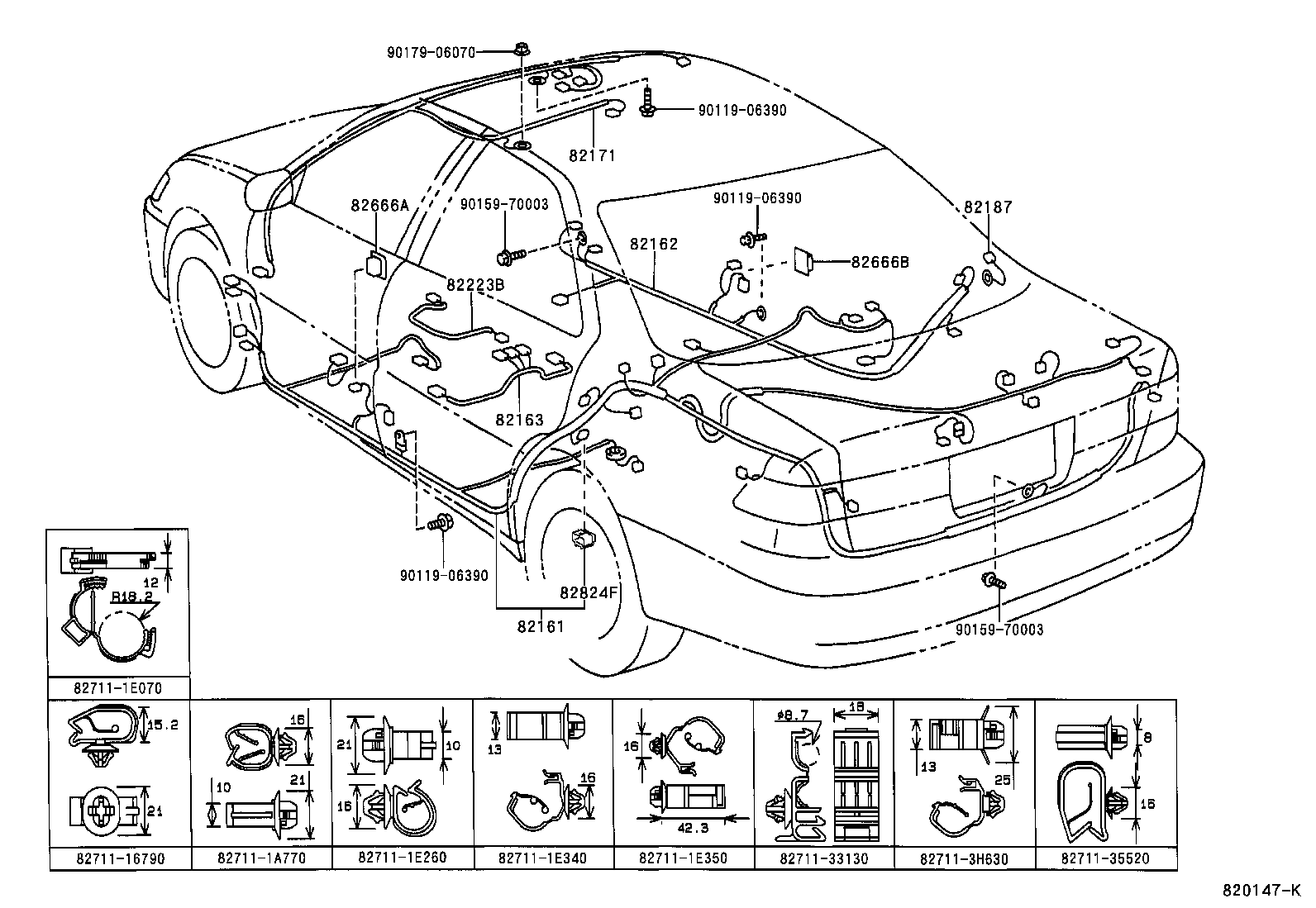

Figure 820147K

820147K 1996-08 → —

Figure 820148A

820148A 1996-08 → —

Figure 820149A

820149A 1996-08 → —

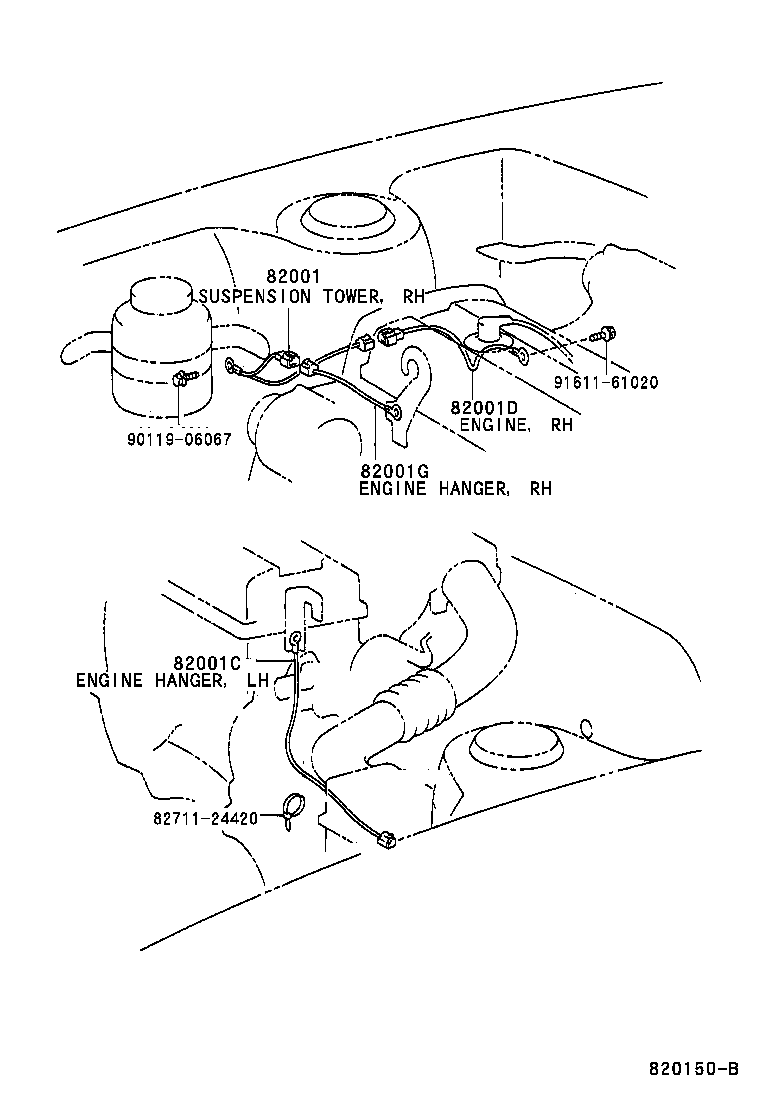

Figure 820150B

820150B 1996-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82001C	Cable, Bond, NO.2
82001D	Cable, Bond, NO.3
82001G	Cable, Bond, NO.4
82111	Wire, Engine Room Main
82113	Wire, Engine Room, NO.3
82121	Wire, Engine
82122	Wire, Engine, NO.2
82123	Wire, Engine, NO.3
82131	Wire, Cowl
82141	Wire, Instrument Panel
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82161	Wire, Floor
82162	Wire, Floor, NO.2
82163	Wire, Floor, NO.3
82167	Wire, Seat, NO.1
82168	Wire, Seat, NO.2
82171	Wire, Roof, NO.1
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82219A	Wire, Sensor
82223	Wire, Switch
82223B	Wire, Switch, NO.2
82345	Diode
82345A	Diode
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82821A	Cover, Connector
82823	Cap, Terminal, NO.1
82824D	Connector, Wiring Harness
82824E	Connector, Wiring Harness
82824F	Connector, Wiring Harness

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
