Toyota Camry
1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe
Discontinued model
Data version 2001-11
Electronic Fuel Injection System

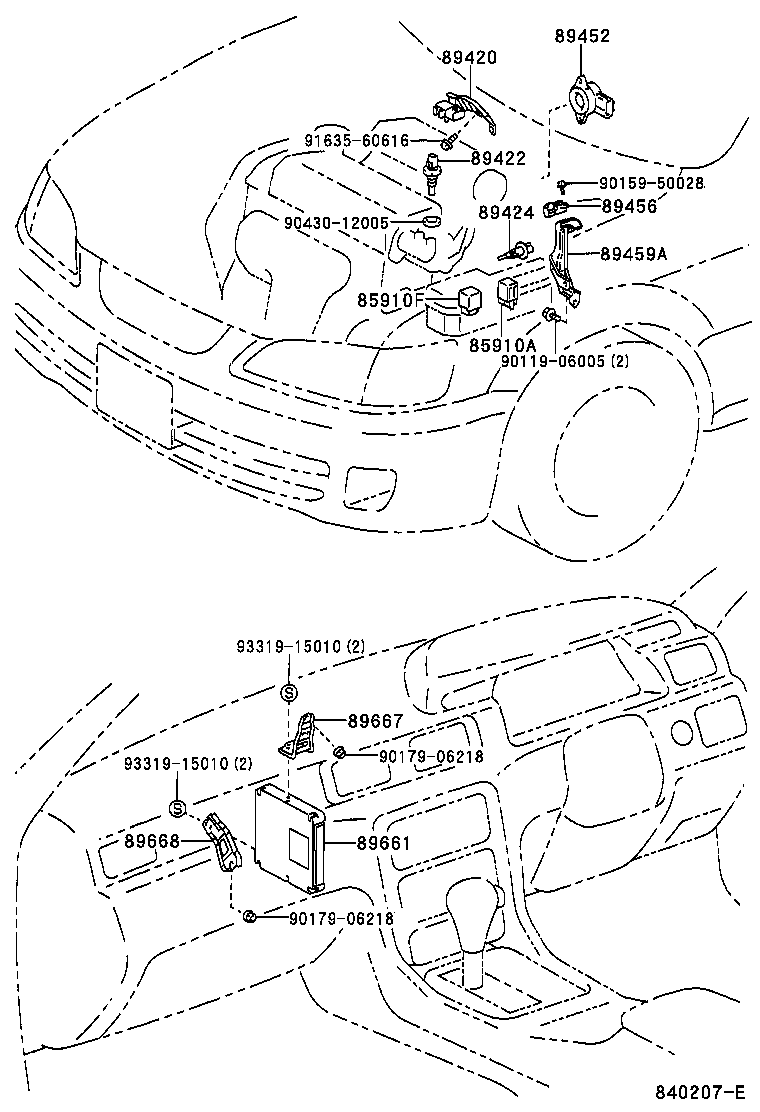

14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89412A | Sensor, E.G.R Gas Temperature |
| 89420 | Sensor Assy, Vacuum |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89455 | Sensor, Egr Valve Position |
| 89456 | Resistor, Variable |
| 89459A | Bracket, Variable Resistor |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
