Toyota Camry

1996-08 → 2001-09 · chassis MCV20,SXV20 · catalogue 281560 · Europe

Discontinued model Data version 2001-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 3 illustrations

Illustrations

Figure 860763B

860763B 1996-08 → —

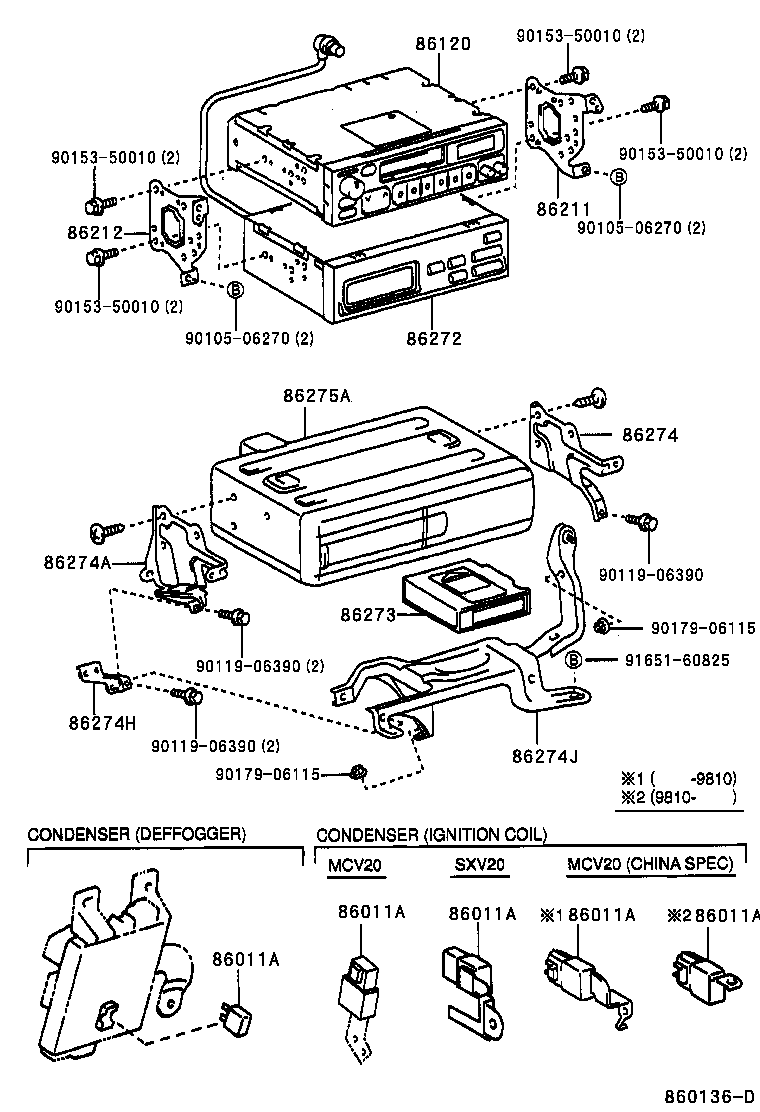

Figure 860136D

860136D 1996-08 → —

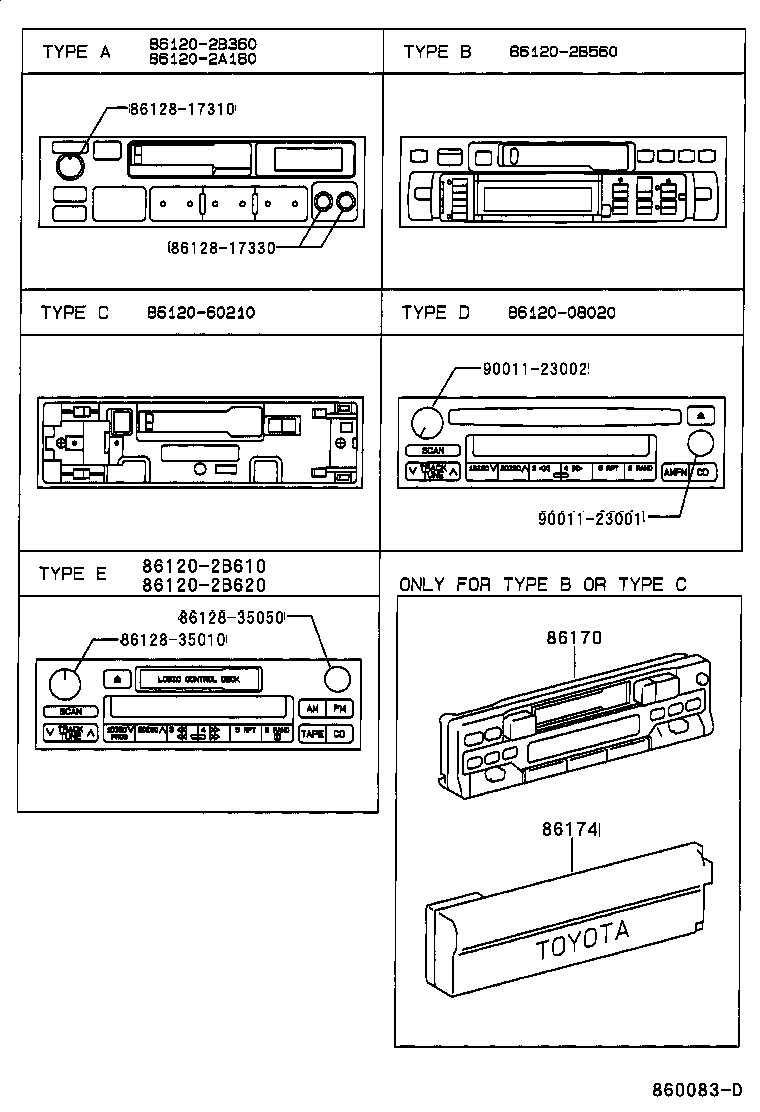

Figure 860083D

860083D 1996-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86120	Receiver Assy, Radio
86170	Switch And Volume Assy, Radio
86174	Case, Switch & Volume
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2
86270A	Disc Player Assy
86272	Controller, Disc Player
86273	Magazine, Disc Player
86274	Bracket, Disc Player
86274A	Bracket, Disc Player
86274H	Bracket, Disc Player
86274J	Bracket, Disc Player
86275A	Changer, Disc Player

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
