Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

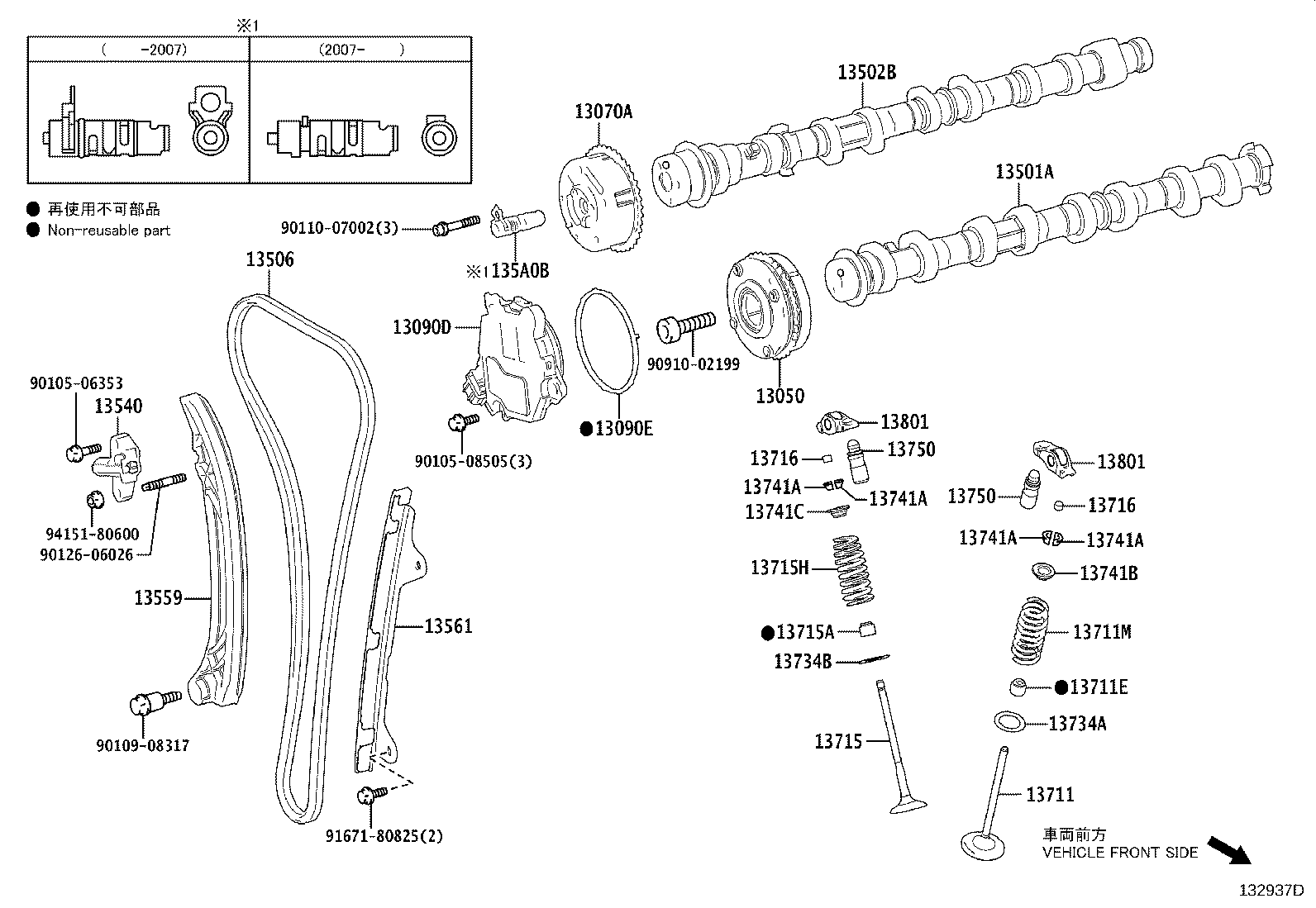

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-0V090 |
Gear Assy, Camshaft Timing
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13050-25010 |
Gear Assy, Camshaft Timing
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13050-25010 |
Gear Assy, Camshaft Timing
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13050-31200 |
Gear Assy, Camshaft Timing
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13050-25010 |
Gear Assy, Camshaft Timing
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13050-25010 |
Gear Assy, Camshaft Timing
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13050-31200 |
Gear Assy, Camshaft Timing
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13070A — Gear Assy, Camshaft Timing Exhaust | ||||
| 13070-0V050 |
Gear Assy, Camshaft Timing Exhaust
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13070-25020 note |
Gear Assy, Camshaft Timing Exhaust
2018-06 → 2020-07
ended
|
A25# AXZA10,AXZH10 | — | |
| 13070-25020 note |
Gear Assy, Camshaft Timing Exhaust
2019-07 → 2020-07
ended
|
M20AFKS MXZA10 | — | |
| 13070-25030 note |
Gear Assy, Camshaft Timing Exhaust
2020-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13070-25030 note |
Gear Assy, Camshaft Timing Exhaust
2020-07 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13070-31070 |
Gear Assy, Camshaft Timing Exhaust
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13070-25030 |
Gear Assy, Camshaft Timing Exhaust
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13070-25030 |
Gear Assy, Camshaft Timing Exhaust
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13070-31070 |
Gear Assy, Camshaft Timing Exhaust
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13090D — Motor Assy, Cam Timing Control W/Edu | ||||
| 13090-25010 |
Motor Assy, Cam Timing Control W/Edu
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13090-25010 |
Motor Assy, Cam Timing Control W/Edu
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13090-25010 |
Motor Assy, Cam Timing Control W/Edu
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13090-25010 |
Motor Assy, Cam Timing Control W/Edu
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13090E — Ring, O(FOR CAM TIMING CONTROL MOTOR) | ||||
| 90301-92005 |
Ring, O(FOR CAM TIMING CONTROL MOTOR)
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90301-92005 |
Ring, O(FOR CAM TIMING CONTROL MOTOR)
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 90301-92005 |
Ring, O(FOR CAM TIMING CONTROL MOTOR)
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 90301-92005 |
Ring, O(FOR CAM TIMING CONTROL MOTOR)
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13501A — Camshaft Sub-assy, Intake | ||||
| 13501-24020 |
Camshaft Sub-assy, Intake
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13501-24020 |
Camshaft Sub-assy, Intake
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13502B — Camshaft Sub-assy, Exhaust | ||||
| 13502-24010 |
Camshaft Sub-assy, Exhaust
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13502-24010 |
Camshaft Sub-assy, Exhaust
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0V030 |
Chain Sub-assy
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13506-24020 |
Chain Sub-assy
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13506-25020 |
Chain Sub-assy
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13506-31060 |
Chain Sub-assy
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13506-24020 |
Chain Sub-assy
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13506-25020 |
Chain Sub-assy
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13506-31060 |
Chain Sub-assy
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0V050 |
Tensioner Assy, Chain, NO.1
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13540-25020 |
Tensioner Assy, Chain, NO.1
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13540-25020 |
Tensioner Assy, Chain, NO.1
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13540-31050 |
Tensioner Assy, Chain, NO.1
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13540-25020 |
Tensioner Assy, Chain, NO.1
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13540-25020 |
Tensioner Assy, Chain, NO.1
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13540-31050 |
Tensioner Assy, Chain, NO.1
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0V050 |
Slipper, Chain Tensioner
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13559-24010 |
Slipper, Chain Tensioner
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13559-25010 |
Slipper, Chain Tensioner
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13559-31040 |
Slipper, Chain Tensioner
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13559-24010 |
Slipper, Chain Tensioner
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13559-25010 |
Slipper, Chain Tensioner
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13559-31040 |
Slipper, Chain Tensioner
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0V040 |
Damper, Chain Vibration, NO.1
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13561-15010 |
Damper, Chain Vibration, NO.1
2019-08 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13561-24020 |
Damper, Chain Vibration, NO.1
2019-07 → 2019-08
ended
|
M20AFKS MXZA10 | — | |
| 13561-25020 |
Damper, Chain Vibration, NO.1
2018-06 → 2019-05
ended
|
A25# AXZA10,AXZH10 | — | |
| 13561-25021 |
Damper, Chain Vibration, NO.1
2019-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13561-31040 |
Damper, Chain Vibration, NO.1
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13561-15010 |
Damper, Chain Vibration, NO.1
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13561-25021 |
Damper, Chain Vibration, NO.1
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13561-31040 |
Damper, Chain Vibration, NO.1
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 135A0B — Valve Assy, Camshaft Timing | ||||
| 135A0-25010 |
Valve Assy, Camshaft Timing
2018-06 → 2020-07
ended
|
A25# AXZA10,AXZH10 | — | |
| 135A0-25010 |
Valve Assy, Camshaft Timing
2019-07 → 2020-07
ended
|
M20AFKS MXZA10 | — | |
| 135A0-25020 |
Valve Assy, Camshaft Timing
2020-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 135A0-25020 |
Valve Assy, Camshaft Timing
2020-07 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 135A0-25020 |
Valve Assy, Camshaft Timing
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 135A0-25020 |
Valve Assy, Camshaft Timing
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13711 — Valve, Intake | ||||
| 13711-0V030 |
Valve, Intake
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13711-24040 |
Valve, Intake
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13711-25020 |
Valve, Intake
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13711-31101 |
Valve, Intake
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13711-24040 |
Valve, Intake
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13711-25020 |
Valve, Intake
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13711-31101 |
Valve, Intake
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13711E — Seal, Intake Valve Stem Oil | ||||
| 90913-02101 |
Seal, Intake Valve Stem Oil
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 90913-T2001 |
Seal, Intake Valve Stem Oil
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13711M — Spring, Compression(FOR INTAKE VALVE) | ||||
| 90501-31031 |
Spring, Compression(FOR INTAKE VALVE)
2018-07 → 2021-10
ended
|
A25AFXS,A25BFXS AXZH10 | — | |
| 90501-33034 |
Spring, Compression(FOR INTAKE VALVE)
2018-06 → 2021-08
ended
|
A25AFKS AXZA10 | — | |
| 90501-33034 |
Spring, Compression(FOR INTAKE VALVE)
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90501-C0044 |
Spring, Compression(FOR INTAKE VALVE)
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90501-31031 |
Spring, Compression(FOR INTAKE VALVE)
2021-08 → —
|
A25AFXS,A25BFXS AXZH10 | — | |
| 90501-33034 |
Spring, Compression(FOR INTAKE VALVE)
2021-08 → —
|
A25AFKS AXZA10 | — | |
| 90501-33034 |
Spring, Compression(FOR INTAKE VALVE)
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-0V040 |
Valve, Exhaust
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13715-24040 |
Valve, Exhaust
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13715-25020 |
Valve, Exhaust
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13715-31150 |
Valve, Exhaust
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13715-24040 |
Valve, Exhaust
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13715-25020 |
Valve, Exhaust
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13715-31150 |
Valve, Exhaust
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13715A — Seal, Exhaust Valve Stem Oil | ||||
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90913-T2003 |
Seal, Exhaust Valve Stem Oil
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13715H — Spring, Compression(FOR EXHAUST VALVE) | ||||
| 90501-32075 |
Spring, Compression(FOR EXHAUST VALVE)
2018-07 → 2021-10
ended
|
A25AFXS,A25BFXS AXZH10 | — | |
| 90501-33035 |
Spring, Compression(FOR EXHAUST VALVE)
2018-06 → 2021-08
ended
|
A25AFKS AXZA10 | — | |
| 90501-33035 |
Spring, Compression(FOR EXHAUST VALVE)
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90501-C0044 |
Spring, Compression(FOR EXHAUST VALVE)
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90501-32075 |
Spring, Compression(FOR EXHAUST VALVE)
2021-08 → —
|
A25AFXS,A25BFXS AXZH10 | — | |
| 90501-33035 |
Spring, Compression(FOR EXHAUST VALVE)
2021-08 → —
|
A25AFKS AXZA10 | — | |
| 90501-33035 |
Spring, Compression(FOR EXHAUST VALVE)
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-0Y010 |
Cap, Valve Stem
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13716-25010 |
Cap, Valve Stem
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13716-25010 |
Cap, Valve Stem
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13716-75020 |
Cap, Valve Stem
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13716-25010 |
Cap, Valve Stem
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13716-25010 |
Cap, Valve Stem
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13716-75020 |
Cap, Valve Stem
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13734A — Seat, Intake Valve Spring | ||||
| 13734-0P020 |
Seat, Intake Valve Spring
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13734-62020 |
Seat, Intake Valve Spring
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13734-62020 |
Seat, Intake Valve Spring
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13734-62020 |
Seat, Intake Valve Spring
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13734-62020 |
Seat, Intake Valve Spring
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13734B — Seat, Exhaust Valve Spring | ||||
| 13734-0P020 |
Seat, Exhaust Valve Spring
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13734-62020 |
Seat, Exhaust Valve Spring
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13734-62020 |
Seat, Exhaust Valve Spring
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13734-62020 |
Seat, Exhaust Valve Spring
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13734-62020 |
Seat, Exhaust Valve Spring
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03028 note |
Lock, Valve Spring Retainer
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 90913-C3002 note |
Lock, Valve Spring Retainer
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13741B — Retainer, Intake Valve Spring | ||||
| 13741-0V020 |
Retainer, Intake Valve Spring
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13741-36010 |
Retainer, Intake Valve Spring
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13741-36010 |
Retainer, Intake Valve Spring
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13741-36010 |
Retainer, Intake Valve Spring
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13741-36010 |
Retainer, Intake Valve Spring
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13741C — Retainer, Exhaust Valve Spring | ||||
| 13741-0V020 |
Retainer, Exhaust Valve Spring
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13741-36010 |
Retainer, Exhaust Valve Spring
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13741-36010 |
Retainer, Exhaust Valve Spring
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13741-36010 |
Retainer, Exhaust Valve Spring
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13741-36010 |
Retainer, Exhaust Valve Spring
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-0V030 |
Adjuster Assy, Valve Lash
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13750-25010 |
Adjuster Assy, Valve Lash
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13750-25010 |
Adjuster Assy, Valve Lash
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13750-31030 |
Adjuster Assy, Valve Lash
2018-06 → 2019-11
ended
|
2GRFKS GSZ10 | — | |
| 13750-36020 |
Adjuster Assy, Valve Lash
2019-12 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13750-25010 |
Adjuster Assy, Valve Lash
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13750-36020 |
Adjuster Assy, Valve Lash
2021-08 → —
|
2GRFKS GSZ10 | — | |
| 13750-70020 |
Adjuster Assy, Valve Lash
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-0V020 |
Arm Sub-assy, Valve Rocker, NO.1
2018-06 → 2021-08
ended
|
6ARFSE ASZ10 | — | |
| 13801-25010 |
Arm Sub-assy, Valve Rocker, NO.1
2019-07 → 2021-08
ended
|
M20AFKS MXZA10 | — | |
| 13801-25010 |
Arm Sub-assy, Valve Rocker, NO.1
2018-06 → 2021-10
ended
|
A25# AXZA10,AXZH10 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2018-06 → 2021-08
ended
|
2GRFKS GSZ10 | — | |
| 13801-25010 |
Arm Sub-assy, Valve Rocker, NO.1
2021-08 → —
|
A25# AXZA10,AXZH10 | — | |
| 13801-25010 |
Arm Sub-assy, Valve Rocker, NO.1
2021-08 → —
|
M20AFKS MXZA10 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2021-08 → —
|
2GRFKS GSZ10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
