Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

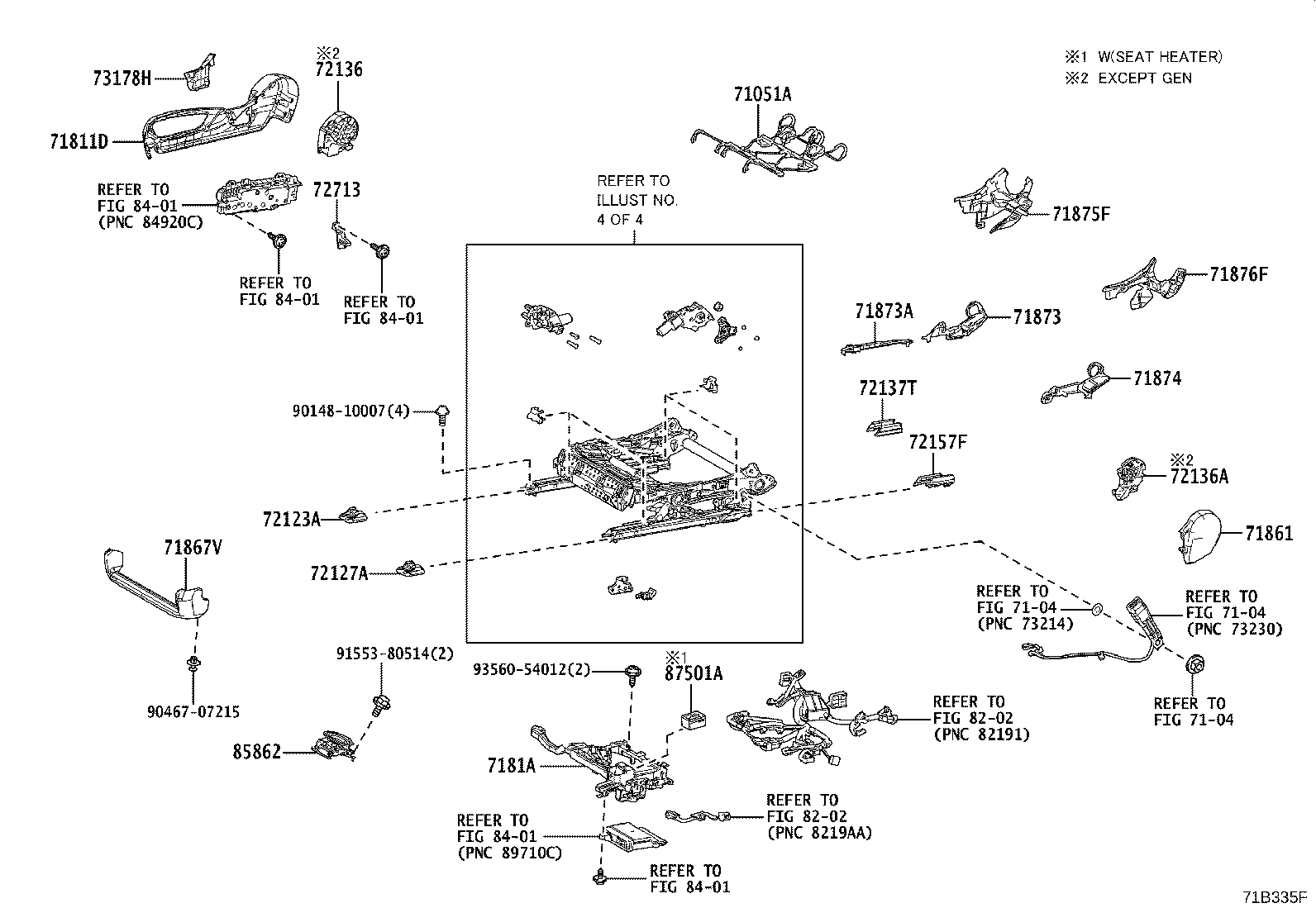

Exploded illustration 71B335F 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (5 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (5 parts) 71867V — SHIELD, FRONT SEAT CUSHION, FRONT RH (34 parts) 71873 — SHIELD, FRONT SEAT CUSHION, LOWER RH (9 parts) 71873A — SHIELD, FRONT SEAT CUSHION, LOWER (2 parts) 71874 — SHIELD, FRONT SEAT CUSHION, LOWER LH (8 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (5 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (5 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (2 parts) 72127A — COVER, SEAT TRACK BRACKET, INNER FRONT RH (2 parts) 72136 — SPACER, SEAT TRACK, LOWER NO.1 (2 parts) 72136A — SPACER, SEAT TRACK, LOWER NO.2 (2 parts) 72137T — COVER, SEAT TRACK BRACKET, OUTER REAR RH (2 parts) 72157F — COVER, SEAT TRACK BRACKET, INNER REAR RH (2 parts) 72713 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH (2 parts) 73178H — CAP, SEAT BELT ANCHOR COVER, RH (5 parts) 85862 — BLOWER, SEAT CLIMATE CONTROL, RH (81 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (12 parts) 9046707215 — not listed in this catalogue 9014810007 — not listed in this catalogue 9155380514 — not listed in this catalogue 9356054012 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue
71B335F · 20 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
189 parts on this figure
Part number Description Fitment Price
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71051-47090 Spring Sub-assy, Front Seat Cushion, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
71811D — Shield, Front Seat Cushion, RH
71811-33450-C0 note Shield, Front Seat Cushion, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71811-33450-E0 note Shield, Front Seat Cushion, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71811-33450-C0 note Shield, Front Seat Cushion, RH
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR,GEN —
71811-33450-C0 note Shield, Front Seat Cushion, RH
2021-08 → —
AXZH10 ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10 CHI,GCC —
71811-33450-C0 note Shield, Front Seat Cushion, RH
2021-10 → —
AXZH10 IND —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-33010 Holder, Front Seat Cushion Wire Harness, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
7181A-33010 Holder, Front Seat Cushion Wire Harness, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71861-47070-E1 note Shield, Front Seat Cushion, Inner RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR,GEN —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2021-08 → —
AXZH10 ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10 CHI,GCC —
71861-47070-C1 note Shield, Front Seat Cushion, Inner RH
2021-10 → —
AXZH10 IND —
71867V — Shield, Front Seat Cushion, Front RH
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-08 ended
AXZH10 RHD (ARL,EUR) —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-10 ended
AXZH10 GEN,IND —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2019-07 → 2021-08 ended
AXZH10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2018-06 → 2021-08 ended
AXZA10 RHD —
71867-33090-E0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
71867-33090-E0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-08 ended
AXZH10 RHD (ARL,EUR) —
71867-33090-E0 note Shield, Front Seat Cushion, Front RH
2019-07 → 2021-08 ended
AXZH10 ARL —
71867-33090-E0 note Shield, Front Seat Cushion, Front RH
2018-06 → 2021-08 ended
AXZA10 RHD —
71867-33090-E0 note Shield, Front Seat Cushion, Front RH
2018-07 → 2021-10 ended
AXZH10 GEN,IND —
71867-33100-C0 note Shield, Front Seat Cushion, Front RH
2018-06 → 2021-08 ended
AXZH10 ARL,CHI,EUR,GCC;ASZ10,AXZA10,GSZ10,MXZA10 —
71867-33100-E0 note Shield, Front Seat Cushion, Front RH
2018-06 → 2021-08 ended
AXZH10 ARL,CHI,EUR,GCC;ASZ10,AXZA10,GSZ10,MXZA10 —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → —
AXZH10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-10 → —
AXZH10 IND —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZA10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZH10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZH10 RHD EUR —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZH10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZH10 RHD EUR —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → —
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZH10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → 2024-02 ended
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → 2024-02 ended
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → 2024-02 ended
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2022-08 → 2024-02 ended
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZH10 RHD EUR —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZH10 ARL —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZA10 GEN —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZH10 RHD EUR —
71867-33090-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → 2022-08 ended
AXZA10 ARL —
71867-33100-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR,GEN —
71867-33100-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → —
AXZH10 ARL,CHI,GCC;AXZA10,GSZ10,MXZA10 CHI,GCC —
71867-33100-C0 note Shield, Front Seat Cushion, Front RH
2021-08 → —
AXZH10 GEN —
71873 — Shield, Front Seat Cushion, Lower RH
71873-33150 Shield, Front Seat Cushion, Lower RH
2018-06 → 2020-04 ended
AXZH10 IND —
71873-33150 note Shield, Front Seat Cushion, Lower RH
2019-07 → 2021-08 ended
AXZH10 ARL —
71873-33150 note Shield, Front Seat Cushion, Lower RH
2019-07 → 2021-08 ended
AXZH10 ARL —
71873-33150 note Shield, Front Seat Cushion, Lower RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
71873-33150 note Shield, Front Seat Cushion, Lower RH
2018-06 → 2021-08 ended
AXZA10 ARL —
71873-33150 Shield, Front Seat Cushion, Lower RH
2018-06 → 2021-08 ended
AXZH10 LHD EUR;AXZH10 CHI,GCC,GEN;ASZ10,AXZA10,GSZ10,MXZA10 +1 —
71873-33150 note Shield, Front Seat Cushion, Lower RH
2018-07 → 2020-04 ended
AXZH10 RHD (ARL,EUR) —
71873-47080 Shield, Front Seat Cushion, Lower RH
2018-06 → 2021-08 ended
AXZA10,AXZH10 RHD (ARL,EUR) —
71873-33150 Shield, Front Seat Cushion, Lower RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
71873A — Shield, Front Seat Cushion, Lower
71873-47090 Shield, Front Seat Cushion, Lower
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71873-47090 Shield, Front Seat Cushion, Lower
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
71874 — Shield, Front Seat Cushion, Lower LH
71873-33150 Shield, Front Seat Cushion, Lower LH
2018-06 → 2021-08 ended
AXZA10,AXZH10 RHD (ARL,EUR) —
71873-47080 Shield, Front Seat Cushion, Lower LH
2018-06 → 2021-10 ended
AXZH10 N LHD EUR;AXZH10,MXZA10 +2 —
71873-47080 note Shield, Front Seat Cushion, Lower LH
2019-07 → 2021-08 ended
AXZH10 ARL —
71873-47080 note Shield, Front Seat Cushion, Lower LH
2019-07 → 2021-08 ended
AXZH10 ARL —
71873-47080 note Shield, Front Seat Cushion, Lower LH
2018-07 → 2021-08 ended
AXZH10 RHD (ARL,EUR) —
71873-47080 note Shield, Front Seat Cushion, Lower LH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
71873-47080 note Shield, Front Seat Cushion, Lower LH
2018-06 → 2021-08 ended
AXZA10 ARL —
71873-47080 Shield, Front Seat Cushion, Lower LH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71875-47040-E1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR,GEN —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2021-08 → —
AXZH10 ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10 CHI,GCC —
71875-47040-C1 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2021-10 → —
AXZH10 IND —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71875-47070-E1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2021-08 → —
AXZH10 ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10 CHI,GCC —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2021-10 → —
AXZH10 IND —
71875-47070-C1 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR,GEN —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-50020-C0 note Cover, Seat Track Bracket, Outer Front RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72123-50020-C0 note Cover, Seat Track Bracket, Outer Front RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
72127A — Cover, Seat Track Bracket, Inner Front RH
72123-50020-C0 note Cover, Seat Track Bracket, Inner Front RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72123-50020-C0 note Cover, Seat Track Bracket, Inner Front RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
72136 — Spacer, Seat Track, Lower NO.1
72136-33230 Spacer, Seat Track, Lower NO.1
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 ARL,CHI,EUR,IND —
72136-33230 Spacer, Seat Track, Lower NO.1
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,IND —
72136A — Spacer, Seat Track, Lower NO.2
72136-33240 Spacer, Seat Track, Lower NO.2
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 ARL,CHI,EUR,IND —
72136-33240 Spacer, Seat Track, Lower NO.2
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,IND —
72137T — Cover, Seat Track Bracket, Outer Rear RH
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72137-47060 Cover, Seat Track Bracket, Outer Rear RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
72157F — Cover, Seat Track Bracket, Inner Rear RH
72157-47080 Cover, Seat Track Bracket, Inner Rear RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72157-47080 Cover, Seat Track Bracket, Inner Rear RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
72713 — Bracket, Seat Adjuster Shield Clamp, RH
72713-33020 Bracket, Seat Adjuster Shield Clamp, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72713-33020 Bracket, Seat Adjuster Shield Clamp, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
73178H — Cap, Seat Belt Anchor Cover, RH
73178-33060-C0 note Cap, Seat Belt Anchor Cover, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
73178-33060-E0 note Cap, Seat Belt Anchor Cover, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
73178-33060-C0 note Cap, Seat Belt Anchor Cover, RH
2021-10 → —
AXZH10 IND —
73178-33060-C0 note Cap, Seat Belt Anchor Cover, RH
2021-08 → —
AXZH10 ARL,CHI,GCC,GEN;AXZA10,GSZ10,MXZA10 CHI,GCC,GEN —
73178-33060-C0 note Cap, Seat Belt Anchor Cover, RH
2021-08 → —
AXZH10 EUR;AXZA10,GSZ10,MXZA10 ARL,EUR —
85862 — Blower, Seat Climate Control, RH
85801-33010 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
AXZA10 RHD —
85801-33010 Blower, Seat Climate Control, RH
2018-07 → 2021-10 ended
AXZH10 GEN,IND —
85801-33010 note Blower, Seat Climate Control, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-33010 note Blower, Seat Climate Control, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
85801-33010 note Blower, Seat Climate Control, RH
2018-07 → 2021-08 ended
AXZH10 RHD (ARL,EUR) —
85801-33020 note Blower, Seat Climate Control, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-33020 note Blower, Seat Climate Control, RH
2020-08 → 2021-08 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2018-07 → 2021-08 ended
AXZH10 LHD —
85801-33020 note Blower, Seat Climate Control, RH
2018-07 → 2021-08 ended
AXZH10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
GSZ10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
GSZ10 GCC;ASZ10,AXZA10 EUR,GCC —
85801-33020 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
AXZA10,GSZ10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
ASZ10 EUR;AXZA10,AXZH10 LHD (CHI,EUR) —
85801-33020 note Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,MXZA10 CHI —
85801-33020 Blower, Seat Climate Control, RH
2018-06 → 2021-08 ended
GSZ10 EUR;AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → —
AXZH10 RHD (ARL,EUR) —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → —
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → —
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → —
AXZH10 RHD (ARL,EUR) —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → —
AXZA10 ARL —
85801-33010 Blower, Seat Climate Control, RH
2021-08 → —
AXZH10 GEN,IND —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZA10 ARL —
85801-33010 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 RHD (ARL,EUR) —
85801-33010 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZA10 GEN —
85801-33010 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 RHD (ARL,EUR) —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
GSZ10 GCC;AXZA10,AXZH10 ARL —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
GSZ10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
MXZA10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-11 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
GSZ10 GCC;AXZA10,AXZH10 ARL —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → 2023-03 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 LHD (EUR,GCC) —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
GSZ10 GCC;AXZA10,MXZA10 EUR,GCC —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZH10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2023-03 → 2024-02 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → 2024-11 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → 2024-11 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → 2024-11 ended
MXZA10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → 2024-11 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → 2024-11 ended
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZA10,GSZ10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → —
AXZH10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
AXZH10 LHD (EUR,GCC) —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
GSZ10 GCC;AXZA10,MXZA10 EUR,GCC —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
AXZA10 CHI,EUR;AXZH10,MXZA10 LHD EUR —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
AXZH10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2022-08 → —
AXZA10,GSZ10 GCC —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → —
AXZH10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → —
AXZA10,MXZA10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → —
AXZH10 GEN —
85801-33020 Blower, Seat Climate Control, RH
2021-08 → —
GSZ10 EUR;AXZA10 GEN —
85801-33020 note Blower, Seat Climate Control, RH
2024-02 → 2024-11 ended
MXZA10 CHI —
85801-33020 note Blower, Seat Climate Control, RH
2021-08 → 2022-08 ended
AXZA10 CHI,EUR;AXZH10,MXZA10 LHD EUR —
87501A — Control Sub-assy, Seat Heater, RH
87501-33010 note Control Sub-assy, Seat Heater, RH
2018-06 → 2021-08 ended
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2018-07 → 2021-08 ended
AXZH10 GEN —
87501-33010 Control Sub-assy, Seat Heater, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 ARL,CHI,EUR,IND —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → —
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → —
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2021-08 → —
AXZH10 GEN —
87501-33010 Control Sub-assy, Seat Heater, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,IND —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
87501-33010 note Control Sub-assy, Seat Heater, RH
2021-08 → 2022-08 ended
AXZA10 GEN —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
