Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

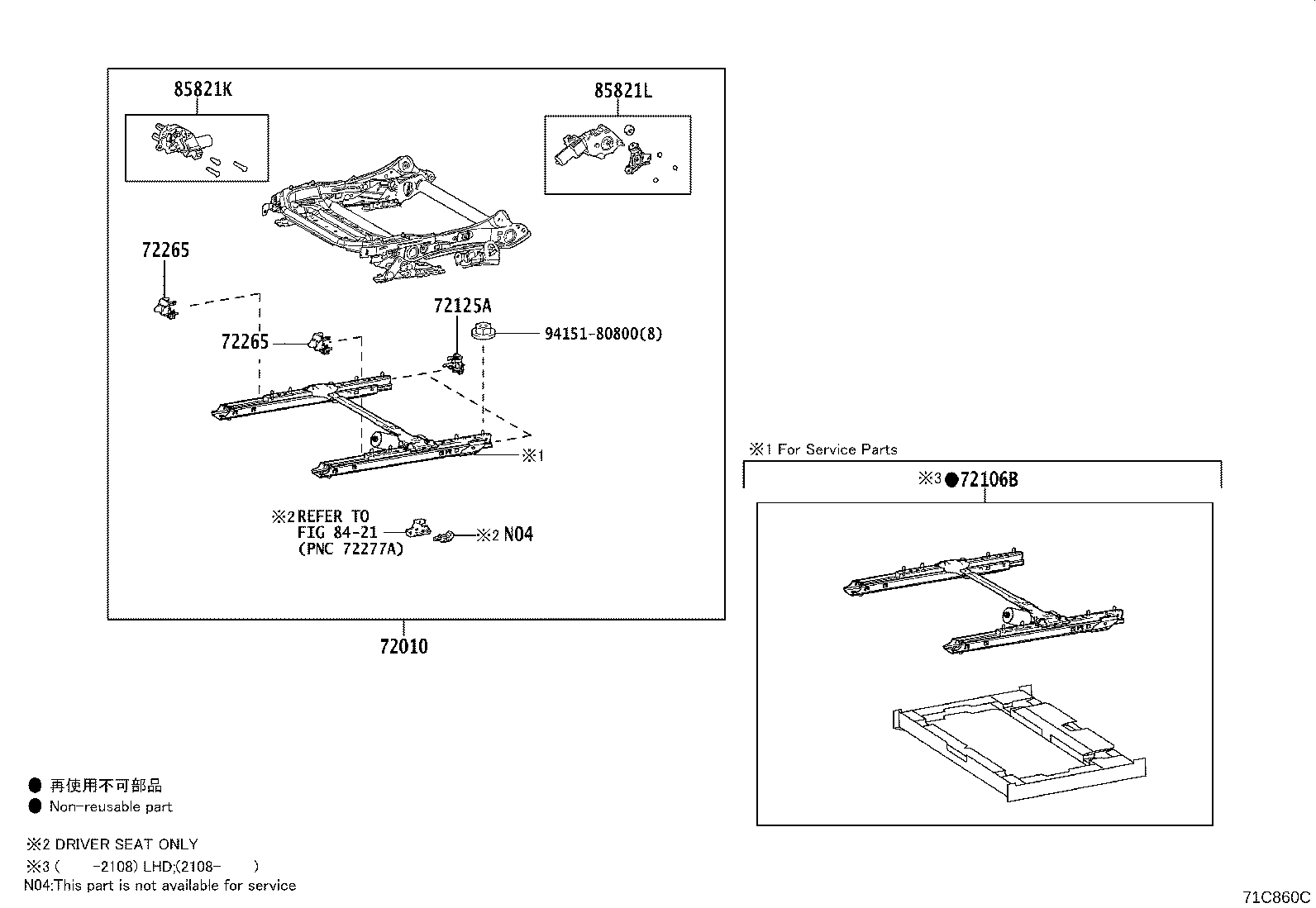

Exploded illustration 71C860C 8421 — not listed in this catalogue 72010 — ADJUSTER ASSY, FRONT SEAT, RH (52 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (2 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (2 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (2 parts) 72106B — RAIL SUB-ASSY, SEAT TRACK, UPPER RH (12 parts) 9415180800 — not listed in this catalogue 85821K — MOTOR ASSY, POWER SEAT TILT, RH (17 parts) 85821L — MOTOR ASSY, POWER SEAT LIFTER, RH (17 parts)
71C860C · 7 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
102 parts on this figure
Part number Description Fitment Price
72010 — Adjuster Assy, Front Seat, RH
72010-33560 note Adjuster Assy, Front Seat, RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,GSZ10 EUR,GCC —
72010-33560 note Adjuster Assy, Front Seat, RH
2018-07 → 2021-08 ended
AXZH10 LHD —
72010-33570 Adjuster Assy, Front Seat, RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 LHD —
72010-33610 Adjuster Assy, Front Seat, RH
2018-06 → 2021-08 ended
AXZA10,AXZH10 RHD (ARL,EUR) —
72010-33620 note Adjuster Assy, Front Seat, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
72010-33620 note Adjuster Assy, Front Seat, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
72010-33620 Adjuster Assy, Front Seat, RH
2018-06 → 2021-08 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2018-06 → 2021-08 ended
AXZA10 RHD —
72010-33630 note Adjuster Assy, Front Seat, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
72010-33630 note Adjuster Assy, Front Seat, RH
2018-07 → 2021-08 ended
AXZH10 RHD (ARL,EUR) —
72010-33630 note Adjuster Assy, Front Seat, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
72010-33630 Adjuster Assy, Front Seat, RH
2018-07 → 2021-10 ended
AXZH10 GEN,IND —
72010-33560 note Adjuster Assy, Front Seat, RH
2021-08 → —
GSZ10 EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-11 → —
AXZH10 CHI —
72010-33560 note Adjuster Assy, Front Seat, RH
2022-08 → —
GSZ10 GCC;AXZA10,MXZA10 EUR,GCC —
72010-33560 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZH10 LHD (EUR,GCC) —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
AXZH10 LHD EUR —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → —
GSZ10 GCC —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-11 → —
AXZH10 CHI —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-11 → —
AXZH10 CHI —
72010-33560 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-11 ended
AXZH10 CHI —
72010-33560 note Adjuster Assy, Front Seat, RH
2024-02 → 2024-11 ended
AXZH10 CHI —
72010-33560 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
GSZ10 GCC;AXZA10,MXZA10 EUR,GCC —
72010-33560 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZH10 LHD (EUR,GCC) —
72010-33560 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZH10 CHI —
72010-33570 Adjuster Assy, Front Seat, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 LHD —
72010-33610 Adjuster Assy, Front Seat, RH
2021-08 → —
AXZA10,AXZH10 RHD (ARL,EUR) —
72010-33620 note Adjuster Assy, Front Seat, RH
2021-08 → —
AXZH10 GEN —
72010-33620 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZA10,AXZH10 ARL —
72010-33620 Adjuster Assy, Front Seat, RH
2021-08 → —
AXZA10 GEN —
72010-33620 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZA10,AXZH10 RHD (ARL,EUR) —
72010-33620 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-02 ended
AXZH10 RHD EUR —
72010-33630 Adjuster Assy, Front Seat, RH
2021-08 → —
AXZH10 GEN,IND —
72010-33630 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZA10 ARL —
72010-33630 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZH10 RHD (ARL,EUR) —
72010-33630 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2021-08 → 2022-08 ended
AXZH10 RHD (ARL,EUR) —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → 2024-02 ended
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZA10 ARL —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZH10 RHD (ARL,EUR) —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZH10 RHD (ARL,EUR) —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZA10 GEN —
72010-33630 note Adjuster Assy, Front Seat, RH
2022-08 → —
AXZA10 GEN —
72106B — Rail Sub-assy, Seat Track, Upper RH
72106-33010 Rail Sub-assy, Seat Track, Upper RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 LHD —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2018-06 → 2021-08 ended
AXZH10 LHD;ASZ10,AXZA10,GSZ10 EUR,GCC —
72106-33010 Rail Sub-assy, Seat Track, Upper RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,GCC —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2021-08 → 2024-02 ended
AXZH10 RHD EUR —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2024-11 → —
AXZH10 CHI —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2024-11 → —
AXZH10 CHI —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2024-11 → —
AXZH10 CHI —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2021-08 → —
AXZA10,AXZH10 ARL —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,EUR,GCC —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2021-08 → —
AXZH10 RHD (ARL,EUR) —
72106-33020 Rail Sub-assy, Seat Track, Upper RH
2021-08 → —
AXZA10,AXZH10 GEN,IND —
72106-33020 note Rail Sub-assy, Seat Track, Upper RH
2021-08 → 2024-11 ended
AXZH10 CHI —
72125A — Cover, Seat Track, Upper Rear
72125-47020 Cover, Seat Track, Upper Rear
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72125-47020 Cover, Seat Track, Upper Rear
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
72265 — Cover, Seat Track Upper Rail, RH
72265-47020 Cover, Seat Track Upper Rail, RH
2018-06 → 2021-10 ended
MXZA10 CHI;ASZ10,AXZA10,AXZH10,GSZ10 —
72265-47020 Cover, Seat Track Upper Rail, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 —
85821K — Motor Assy, Power Seat Tilt, RH
85801-11020 note Motor Assy, Power Seat Tilt, RH
2018-06 → 2021-08 ended
AXZH10 ARL,CHI,EUR,GCC;ASZ10,AXZA10,GSZ10 ARL,EUR,GCC —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-11020 Motor Assy, Power Seat Tilt, RH
2018-06 → 2021-10 ended
AXZA10,AXZH10 GEN,IND —
85801-47050 Motor Assy, Power Seat Tilt, RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,GCC —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2024-11 → —
AXZH10 CHI —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2024-11 → —
AXZH10 CHI —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2024-11 → —
AXZH10 CHI —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2021-08 → —
AXZA10,AXZH10 ARL —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2021-08 → —
AXZH10 RHD (ARL,EUR) —
85801-11020 Motor Assy, Power Seat Tilt, RH
2021-08 → —
AXZA10,AXZH10 GEN,IND —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2021-08 → 2024-11 ended
AXZH10 CHI —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2021-08 → 2024-02 ended
AXZH10 RHD EUR —
85801-11020 note Motor Assy, Power Seat Tilt, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,EUR,GCC —
85801-47050 Motor Assy, Power Seat Tilt, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,GCC —
85821L — Motor Assy, Power Seat Lifter, RH
85801-30090 Motor Assy, Power Seat Lifter, RH
2018-06 → 2021-08 ended
ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,GCC —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-30100 Motor Assy, Power Seat Lifter, RH
2018-06 → 2021-10 ended
AXZA10,AXZH10 GEN,IND —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2019-07 → 2021-08 ended
AXZH10 ARL —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2018-07 → 2021-08 ended
AXZH10 RHD EUR —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2018-06 → 2021-08 ended
AXZH10 ARL,CHI,EUR,GCC;ASZ10,AXZA10,GSZ10 ARL,EUR,GCC —
85801-30090 Motor Assy, Power Seat Lifter, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,CHI,EUR,GCC —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2021-08 → 2024-02 ended
AXZH10 RHD EUR —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2021-08 → 2024-11 ended
AXZH10 CHI —
85801-30100 Motor Assy, Power Seat Lifter, RH
2021-08 → —
AXZA10,AXZH10 GEN,IND —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2021-08 → —
AXZH10 RHD (ARL,EUR) —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2021-08 → —
AXZA10,AXZH10,GSZ10,MXZA10 ARL,EUR,GCC —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2021-08 → —
AXZA10,AXZH10 ARL —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2024-11 → —
AXZH10 CHI —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2024-11 → —
AXZH10 CHI —
85801-30100 note Motor Assy, Power Seat Lifter, RH
2024-11 → —
AXZH10 CHI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
