Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

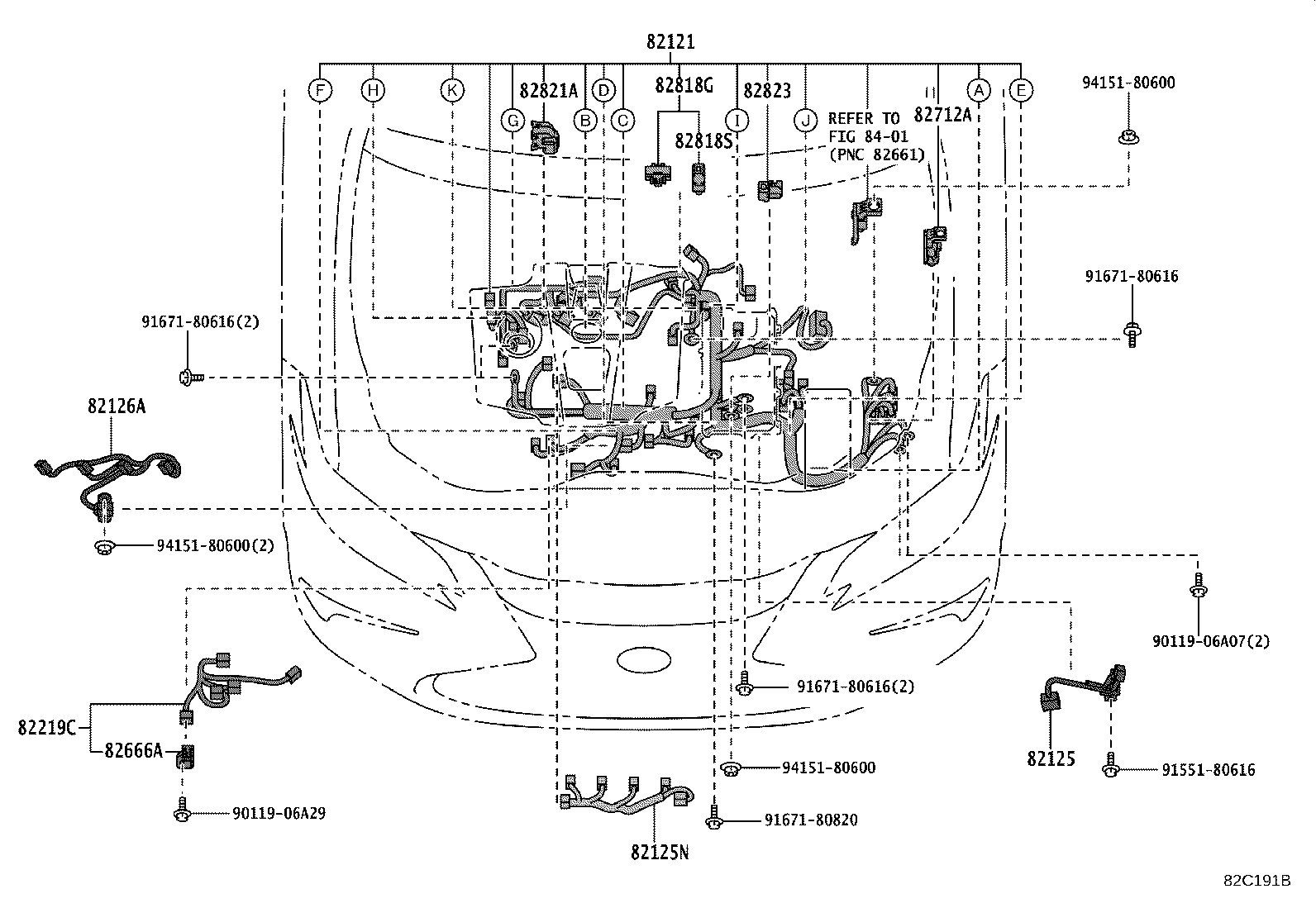

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-33C60 |
Wire, Engine
2018-06 → 2019-07
ended
|
AXZA10 CHI,EUR | — | |
| 82121-33C61 |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZA10 CHI,EUR | — | |
| 82121-33C62 |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZA10 CHI,EUR | — | |
| 82121-33C90 note |
Wire, Engine
2018-06 → 2019-07
ended
|
ASZ10 CHI | — | |
| 82121-33C90 |
Wire, Engine
2019-07 → 2020-01
ended
|
ASZ10 CHI | — | |
| 82121-33C90 |
Wire, Engine
2018-06 → 2020-01
ended
|
ASZ10 EUR | — | |
| 82121-33C91 |
Wire, Engine
2020-02 → 2021-08
ended
|
ASZ10 | — | |
| 82121-33E80 |
Wire, Engine
2019-07 → 2019-12
ended
|
MXZA10 | — | |
| 82121-33E81 |
Wire, Engine
2020-01 → 2020-08
ended
|
MXZA10 | — | |
| 82121-33F10 |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 LHD EUR | — | |
| 82121-33F11 |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33F20 |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 RHD EUR | — | |
| 82121-33F21 |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 RHD EUR | — | |
| 82121-33G20 note |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G20 |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 CHI,GCC | — | |
| 82121-33G20 note |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G20 note |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G20 note |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 |
Wire, Engine
2020-02 → 2020-08
ended
|
AXZH10 CHI | — | |
| 82121-33G21 note |
Wire, Engine
2020-08 → 2021-08
ended
|
AXZH10 CHI | — | |
| 82121-33G21 note |
Wire, Engine
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 note |
Wire, Engine
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 GCC | — | |
| 82121-33G21 note |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 note |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 note |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G21 note |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33G30 note |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZH10 CHI | — | |
| 82121-33G31 note |
Wire, Engine
2020-02 → 2020-08
ended
|
AXZH10 CHI | — | |
| 82121-33G31 |
Wire, Engine
2020-08 → 2021-08
ended
|
AXZH10 CHI | — | |
| 82121-33G40 note |
Wire, Engine
2019-07 → 2019-12
ended
|
AXZH10 RHD EUR | — | |
| 82121-33G40 |
Wire, Engine
2019-07 → 2019-12
ended
|
AXZH10 ARL,GEN | — | |
| 82121-33G41 note |
Wire, Engine
2020-01 → 2020-08
ended
|
AXZH10 RHD EUR | — | |
| 82121-33G41 |
Wire, Engine
2020-01 → 2021-10
ended
|
AXZH10 ARL,GEN,IND | — | |
| 82121-33J00 |
Wire, Engine
2018-07 → 2019-07
ended
|
AXZH10 LHD | — | |
| 82121-33J10 |
Wire, Engine
2018-06 → 2019-12
ended
|
GSZ10 GCC | — | |
| 82121-33J11 |
Wire, Engine
2020-01 → 2021-08
ended
|
GSZ10 GCC | — | |
| 82121-33J30 note |
Wire, Engine
2018-07 → 2019-07
ended
|
AXZH10 CHI | — | |
| 82121-33K20 |
Wire, Engine
2018-07 → 2019-07
ended
|
AXZH10 RHD | — | |
| 82121-33K40 |
Wire, Engine
2018-06 → 2019-12
ended
|
GSZ10 EUR | — | |
| 82121-33K41 |
Wire, Engine
2020-01 → 2021-08
ended
|
GSZ10 EUR | — | |
| 82121-33K50 |
Wire, Engine
2018-06 → 2019-07
ended
|
ASZ10 CHI | — | |
| 82121-33K60 |
Wire, Engine
2018-06 → 2019-07
ended
|
AXZA10 GCC | — | |
| 82121-33K61 |
Wire, Engine
2019-07 → 2020-01
ended
|
AXZA10 GCC | — | |
| 82121-33K62 |
Wire, Engine
2020-02 → 2021-08
ended
|
AXZA10 GCC | — | |
| 82121-33K70 |
Wire, Engine
2018-06 → 2019-07
ended
|
AXZA10 RHD | — | |
| 82121-33K71 |
Wire, Engine
2019-07 → 2020-06
ended
|
AXZA10 RHD | — | |
| 82121-33K72 |
Wire, Engine
2020-07 → 2021-08
ended
|
AXZA10 RHD | — | |
| 82121-33L60 |
Wire, Engine
2020-08 → 2021-08
ended
|
MXZA10 | — | |
| 82121-33D60 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZA10 CHI,EUR | — | |
| 82121-33E70 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L60 |
Wire, Engine
2021-08 → 2022-08
ended
|
MXZA10 | — | |
| 82121-33L70 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 RHD EUR | — | |
| 82121-33L80 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 GCC | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 CHI | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L80 note |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 LHD EUR | — | |
| 82121-33L90 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 CHI | — | |
| 82121-33M00 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZH10 ARL,GEN,IND | — | |
| 82121-33M10 |
Wire, Engine
2021-08 → —
|
GSZ10 GCC | — | |
| 82121-33M20 |
Wire, Engine
2021-08 → —
|
GSZ10 EUR | — | |
| 82121-33M30 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZA10 GCC | — | |
| 82121-33M40 |
Wire, Engine
2021-08 → 2022-08
ended
|
AXZA10 RHD | — | |
| 82121-33M50 |
Wire, Engine
2023-03 → —
|
AXZH10 CHI | — | |
| 82121-33M60 |
Wire, Engine
2023-03 → 2024-02
ended
|
AXZA10 CHI | — | |
| 82121-33M70 |
Wire, Engine
2023-03 → —
|
MXZA10 CHI | — | |
| 82121-33M80 |
Wire, Engine
2024-02 → —
|
AXZA10 CHI | — | |
| 82121-33M80 note |
Wire, Engine
2023-03 → 2024-02
ended
|
AXZA10 CHI | — | |
| 82121-33M80 note |
Wire, Engine
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82121-33M80 note |
Wire, Engine
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82121-33M80 |
Wire, Engine
2022-08 → —
|
AXZA10 EUR | — | |
| 82121-33M90 |
Wire, Engine
2022-08 → —
|
AXZA10 GCC | — | |
| 82121-33N00 |
Wire, Engine
2022-08 → —
|
AXZA10 RHD | — | |
| 82121-33N10 |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N20 |
Wire, Engine
2022-08 → —
|
AXZH10 RHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 CHI | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 note |
Wire, Engine
2022-08 → —
|
AXZH10 LHD EUR | — | |
| 82121-33N30 |
Wire, Engine
2022-08 → —
|
AXZH10 GCC | — | |
| 82121-33N40 note |
Wire, Engine
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82121-33N50 |
Wire, Engine
2022-08 → —
|
AXZH10 ARL,GEN,IND | — | |
| 82121-33N60 |
Wire, Engine
2022-08 → —
|
MXZA10 EUR | — | |
| 82121-33N60 note |
Wire, Engine
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82121-33N60 note |
Wire, Engine
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82121-33N60 note |
Wire, Engine
2023-03 → —
|
MXZA10 CHI | — | |
| 82125 — Wire, Transmission | ||||
| 82125-33270 |
Wire, Transmission
2018-07 → 2021-10
ended
|
AXZH10 | — | |
| 82125-33270 |
Wire, Transmission
2021-08 → —
|
AXZH10 | — | |
| 82125N — Wire, Engine, NO.5 | ||||
| 82125-06070 |
Wire, Engine, NO.5
2018-06 → 2021-08
ended
|
ASZ10 | — | |
| 82125-12660 |
Wire, Engine, NO.5
2019-07 → 2021-08
ended
|
MXZA10 | — | |
| 82125-33180 |
Wire, Engine, NO.5
2020-02 → 2021-10
ended
|
AXZA10,AXZH10 | — | |
| 82125-33220 |
Wire, Engine, NO.5
2018-06 → 2020-01
ended
|
AXZA10,AXZH10 | — | |
| 82125-33220 |
Wire, Engine, NO.5
2018-06 → 2020-02
ended
|
AXZH10 IND | — | |
| 82125-48060 |
Wire, Engine, NO.5
2018-06 → 2021-08
ended
|
GSZ10 | — | |
| 82125-12660 |
Wire, Engine, NO.5
2021-08 → —
|
MXZA10 | — | |
| 82125-33180 |
Wire, Engine, NO.5
2021-08 → —
|
AXZA10,AXZH10 | — | |
| 82125-48060 |
Wire, Engine, NO.5
2021-08 → 2023-09
ended
|
GSZ10 | — | |
| 82125-60680 |
Wire, Engine, NO.5
2023-09 → —
|
GSZ10 | — | |
| 82126A — Wire, Engine, NO.6 | ||||
| 82126-12010 |
Wire, Engine, NO.6
2019-07 → 2021-08
ended
|
MXZA10 | — | |
| 82126-33050 |
Wire, Engine, NO.6
2018-06 → 2021-10
ended
|
AXZA10,AXZH10 | — | |
| 82126-33060 |
Wire, Engine, NO.6
2018-06 → 2021-08
ended
|
GSZ10 | — | |
| 82126-12010 |
Wire, Engine, NO.6
2021-08 → —
|
MXZA10 | — | |
| 82126-33050 |
Wire, Engine, NO.6
2021-08 → —
|
AXZA10,AXZH10 | — | |
| 82126-33060 |
Wire, Engine, NO.6
2021-08 → —
|
GSZ10 | — | |
| 82219C — Wire, Sensor | ||||
| 82219-12140 |
Wire, Sensor
2019-07 → 2021-08
ended
|
MXZA10 | — | |
| 82219-33140 |
Wire, Sensor
2018-06 → 2021-10
ended
|
AXZA10,AXZH10 | — | |
| 82219-48020 |
Wire, Sensor
2018-06 → 2021-08
ended
|
GSZ10 | — | |
| 82219-12140 |
Wire, Sensor
2021-08 → 2022-08
ended
|
MXZA10 CHI | — | |
| 82219-12140 note |
Wire, Sensor
2023-03 → —
|
MXZA10 CHI | — | |
| 82219-12140 |
Wire, Sensor
2021-08 → —
|
MXZA10 EUR | — | |
| 82219-12140 note |
Wire, Sensor
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82219-12140 note |
Wire, Sensor
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82219-33140 |
Wire, Sensor
2021-08 → —
|
AXZA10 | — | |
| 82219-33141 |
Wire, Sensor
2021-08 → —
|
AXZH10 | — | |
| 82219-48020 |
Wire, Sensor
2021-08 → —
|
GSZ10 | — | |
| 82219-76020 |
Wire, Sensor
2023-03 → —
|
MXZA10 CHI | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-12490 |
Holder, Connector NO.2
2019-07 → 2021-08
ended
|
MXZA10 | — | |
| 82666-33720 |
Holder, Connector NO.2
2018-06 → 2021-10
ended
|
AXZA10,AXZH10 | — | |
| 82666-12490 |
Holder, Connector NO.2
2021-08 → 2022-08
ended
|
MXZA10 CHI | — | |
| 82666-12490 note |
Holder, Connector NO.2
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82666-12490 note |
Holder, Connector NO.2
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82666-12490 |
Holder, Connector NO.2
2021-08 → —
|
MXZA10 EUR | — | |
| 82666-12490 |
Holder, Connector NO.2
2023-03 → —
|
MXZA10 CHI | — | |
| 82666-33720 |
Holder, Connector NO.2
2021-08 → —
|
AXZA10,AXZH10 | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-33160 note |
Support, Wiring Harness
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 |
Support, Wiring Harness
2019-07 → 2021-10
ended
|
AXZH10 ARL,CHI,GCC,GEN,IND | — | |
| 82712-33160 note |
Support, Wiring Harness
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 note |
Support, Wiring Harness
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 note |
Support, Wiring Harness
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 note |
Support, Wiring Harness
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 note |
Support, Wiring Harness
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82712-33160 |
Support, Wiring Harness
2018-06 → 2021-08
ended
|
AXZH10 EUR;ASZ10,GSZ10,MXZA10 | — | |
| 82712-33160 note |
Support, Wiring Harness
2019-07 → 2020-08
ended
|
AXZH10 RHD EUR | — | |
| 82712-33160 |
Support, Wiring Harness
2018-06 → 2019-07
ended
|
AXZA10;AXZH10 ARL,CHI,GCC,GEN | — | |
| 82712-33160 |
Support, Wiring Harness
2023-03 → —
|
AXZH10 CHI | — | |
| 82712-33160 |
Support, Wiring Harness
2023-03 → —
|
AXZA10,MXZA10 CHI | — | |
| 82712-33160 |
Support, Wiring Harness
2021-08 → —
|
AXZH10 ARL,EUR,GCC,GEN,IND | — | |
| 82712-33160 |
Support, Wiring Harness
2021-08 → —
|
AXZA10,GSZ10,MXZA10 ARL,EUR,GCC,GEN | — | |
| 82712-33160 note |
Support, Wiring Harness
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82712-33160 note |
Support, Wiring Harness
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82712-33160 note |
Support, Wiring Harness
2022-08 → 2023-03
ended
|
AXZA10,MXZA10 CHI | — | |
| 82712-33160 note |
Support, Wiring Harness
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82712-33160 |
Support, Wiring Harness
2021-08 → 2022-08
ended
|
AXZH10 CHI | — | |
| 82712-33160 |
Support, Wiring Harness
2021-08 → 2022-08
ended
|
AXZA10,MXZA10 CHI | — | |
| 82712-33160 note |
Support, Wiring Harness
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82818G — Protector, Wiring Harness, NO.8 | ||||
| 82817-33Y50 |
Protector, Wiring Harness, NO.8
2018-06 → 2021-10
ended
|
AXZA10,AXZH10 | — | |
| 82817-48A10 |
Protector, Wiring Harness, NO.8
2018-06 → 2021-08
ended
|
GSZ10 | — | |
| 82817-33Y50 |
Protector, Wiring Harness, NO.8
2023-03 → —
|
AXZA10,AXZH10 CHI | — | |
| 82817-33Y50 |
Protector, Wiring Harness, NO.8
2021-08 → —
|
AXZA10,AXZH10 ARL,EUR,GCC,GEN,IND | — | |
| 82817-33Y50 note |
Protector, Wiring Harness, NO.8
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82817-33Y50 note |
Protector, Wiring Harness, NO.8
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82817-33Y50 note |
Protector, Wiring Harness, NO.8
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82817-33Y50 |
Protector, Wiring Harness, NO.8
2021-08 → 2022-08
ended
|
AXZA10,AXZH10 CHI | — | |
| 82817-33Y50 note |
Protector, Wiring Harness, NO.8
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82817-48A10 |
Protector, Wiring Harness, NO.8
2021-08 → —
|
GSZ10 | — | |
| 82818S — Protector, Wiring Harness, NO.15 | ||||
| 82817-33Z40 |
Protector, Wiring Harness, NO.15
2018-06 → 2019-07
ended
|
AXZH10 ARL,GEN | — | |
| 82817-33Z40 |
Protector, Wiring Harness, NO.15
2018-06 → 2021-08
ended
|
AXZA10;AXZH10 CHI,EUR,GCC | — | |
| 82817-33Z40 note |
Protector, Wiring Harness, NO.15
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82817-33Z40 |
Protector, Wiring Harness, NO.15
2023-03 → —
|
AXZA10,AXZH10 CHI | — | |
| 82817-33Z40 |
Protector, Wiring Harness, NO.15
2021-08 → —
|
AXZA10,AXZH10 ARL,EUR,GCC,GEN,IND | — | |
| 82817-33Z40 note |
Protector, Wiring Harness, NO.15
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82817-33Z40 note |
Protector, Wiring Harness, NO.15
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82817-33Z40 note |
Protector, Wiring Harness, NO.15
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82817-33Z40 |
Protector, Wiring Harness, NO.15
2021-08 → 2022-08
ended
|
AXZA10,AXZH10 CHI | — | |
| 82821A — Cover, Connector | ||||
| 82821-33460 |
Cover, Connector
2019-07 → 2021-10
ended
|
AXZH10 ARL,CHI,GCC,GEN,IND | — | |
| 82821-33460 note |
Cover, Connector
2019-07 → 2020-08
ended
|
AXZH10 RHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2020-08 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 |
Cover, Connector
2018-06 → 2021-08
ended
|
AXZH10 EUR;ASZ10,GSZ10,MXZA10 | — | |
| 82821-33460 |
Cover, Connector
2018-06 → 2019-07
ended
|
AXZA10;AXZH10 ARL,CHI,GCC,GEN | — | |
| 82821-33460 note |
Cover, Connector
2019-07 → 2021-08
ended
|
AXZH10 LHD EUR | — | |
| 82821-33460 note |
Cover, Connector
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82821-33460 |
Cover, Connector
2023-03 → —
|
AXZH10 CHI | — | |
| 82821-33460 |
Cover, Connector
2023-03 → —
|
AXZA10,MXZA10 CHI | — | |
| 82821-33460 |
Cover, Connector
2021-08 → —
|
AXZH10 ARL,EUR,GCC,GEN,IND | — | |
| 82821-33460 |
Cover, Connector
2021-08 → —
|
AXZA10,GSZ10,MXZA10 ARL,EUR,GCC,GEN | — | |
| 82821-33460 note |
Cover, Connector
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82821-33460 note |
Cover, Connector
2022-08 → 2023-03
ended
|
MXZA10 CHI | — | |
| 82821-33460 note |
Cover, Connector
2022-08 → 2023-03
ended
|
AXZA10,MXZA10 CHI | — | |
| 82821-33460 note |
Cover, Connector
2022-08 → 2023-03
ended
|
AXZA10 CHI | — | |
| 82821-33460 |
Cover, Connector
2021-08 → 2022-08
ended
|
AXZH10 CHI | — | |
| 82821-33460 |
Cover, Connector
2021-08 → 2022-08
ended
|
AXZA10,MXZA10 CHI | — | |
| 82823 — Cap, Terminal, NO.1 | ||||
| 82823-33060 |
Cap, Terminal, NO.1
2018-07 → 2021-10
ended
|
AXZH10 | — | |
| 82823-33060 |
Cap, Terminal, NO.1
2021-08 → 2022-08
ended
|
AXZH10 CHI | — | |
| 82823-33060 note |
Cap, Terminal, NO.1
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82823-33060 note |
Cap, Terminal, NO.1
2022-08 → 2023-03
ended
|
AXZH10 CHI | — | |
| 82823-33060 |
Cap, Terminal, NO.1
2021-08 → —
|
AXZH10 ARL,EUR,GCC,GEN,IND | — | |
| 82823-33060 |
Cap, Terminal, NO.1
2023-03 → —
|
AXZH10 CHI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
