Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

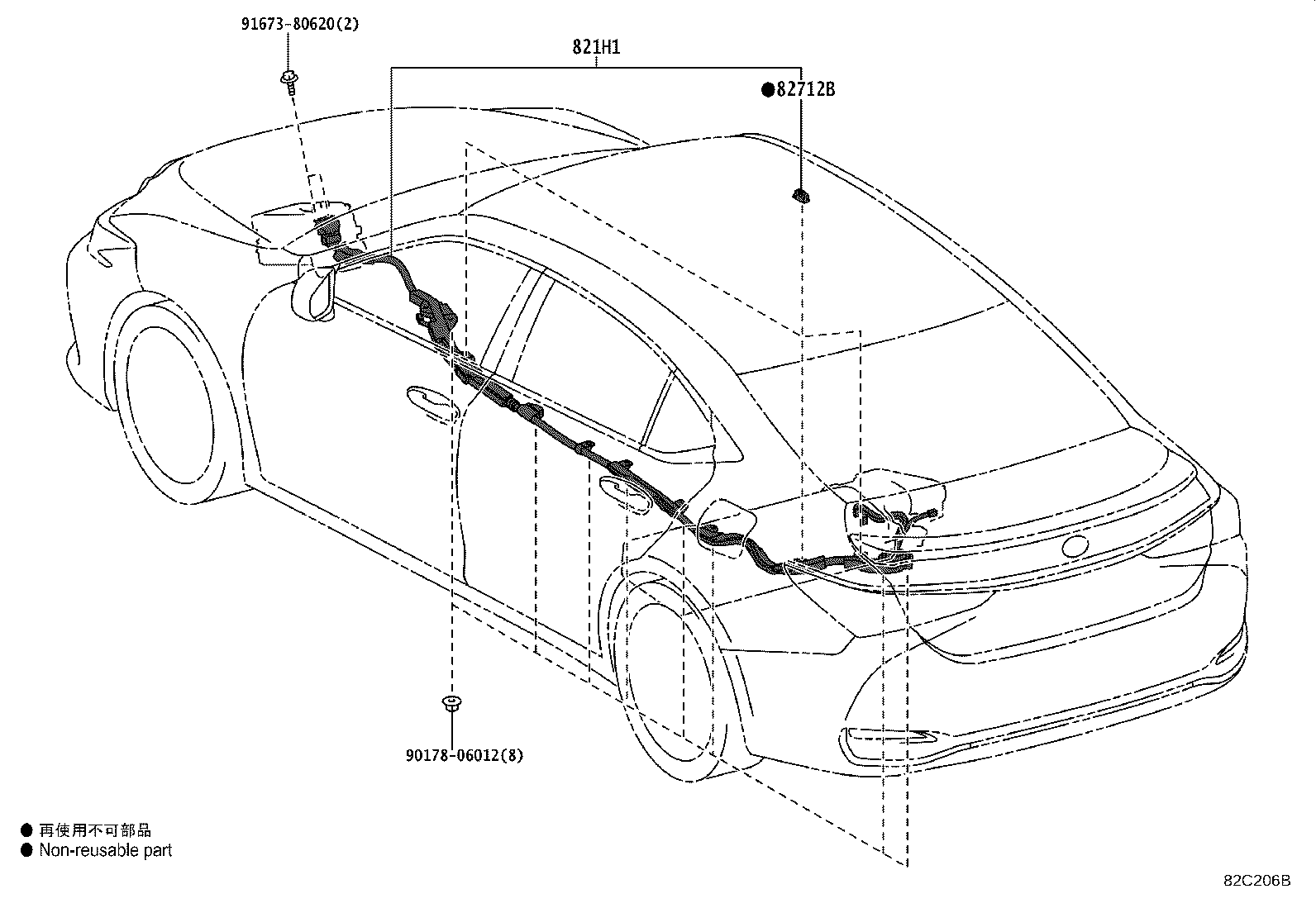

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 821H1 — Wire, Floor Under | ||||
| 821H1-33030 |
Wire, Floor Under
2018-07 → 2021-10
ended
|
AXZH10 | — | |
| 821H1-33030 |
Wire, Floor Under
2021-08 → —
|
AXZH10 | — | |
| 82712B — Support, Wiring Harness | ||||
| 82712-33170 |
Support, Wiring Harness
2018-07 → 2021-10
ended
|
AXZH10 | — | |
| 82712-33170 |
Support, Wiring Harness
2021-08 → —
|
AXZH10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
