Timing Gear Cover & Rear End Plate

25 part groups · 5 illustrations

Illustrations

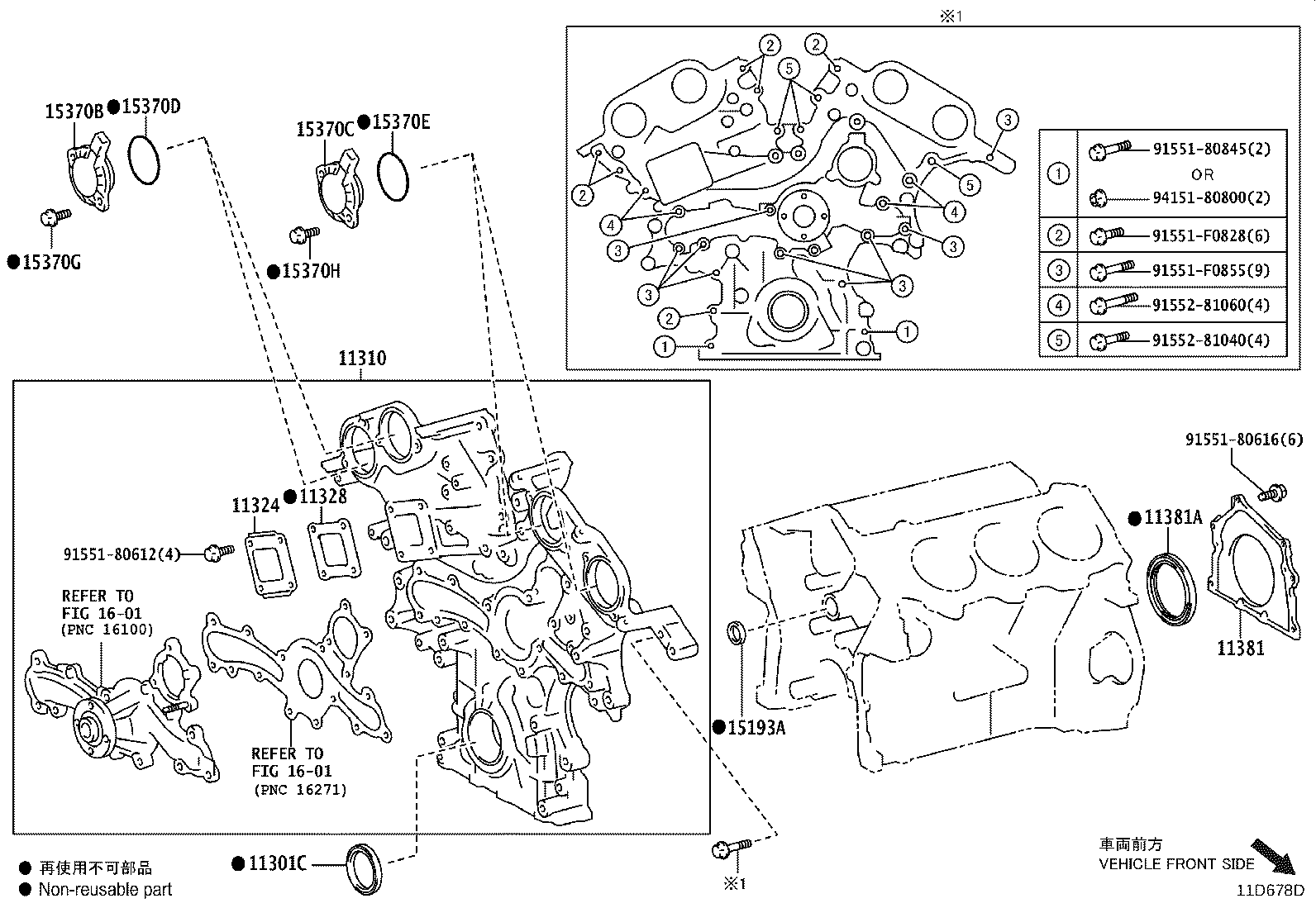

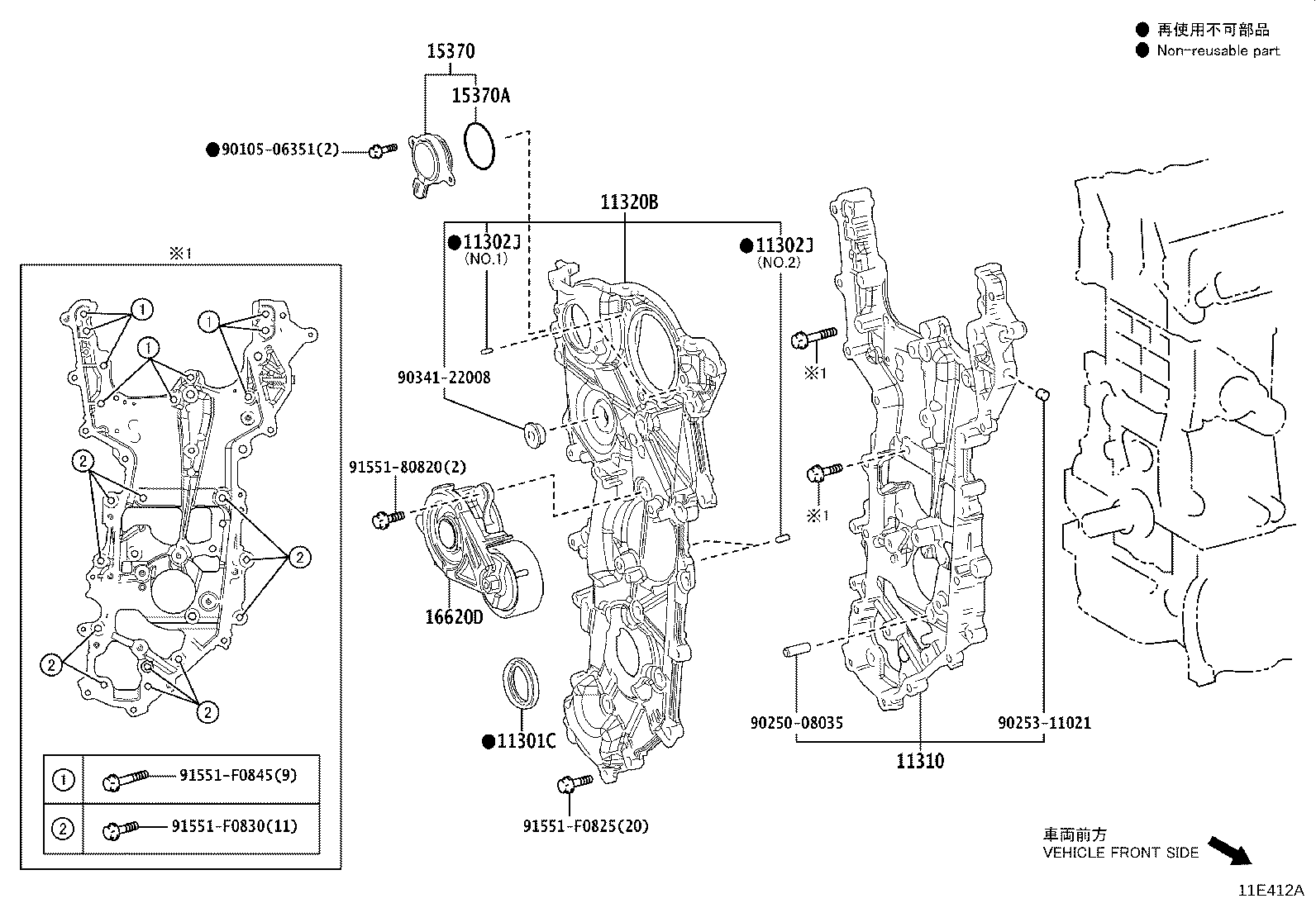

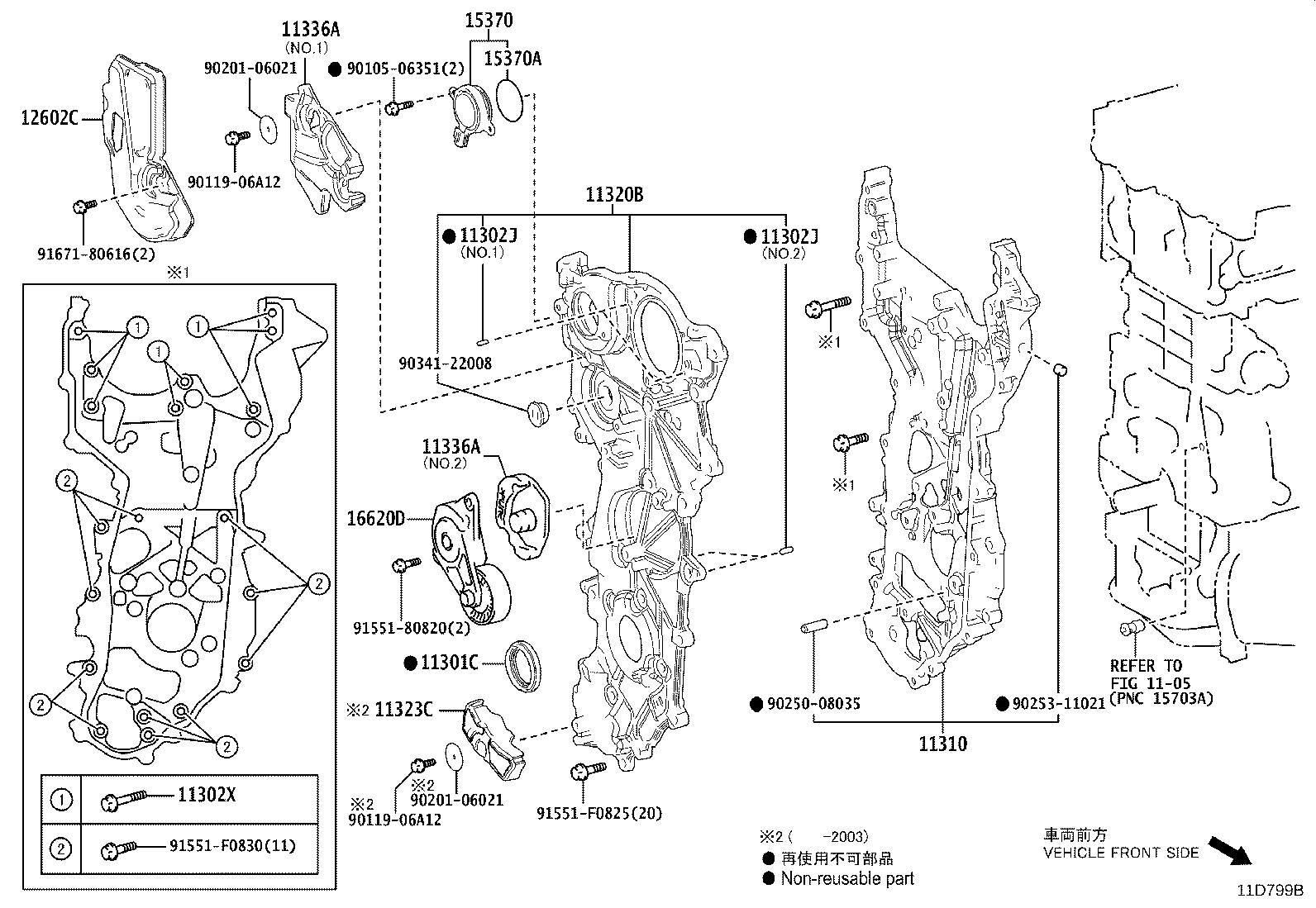

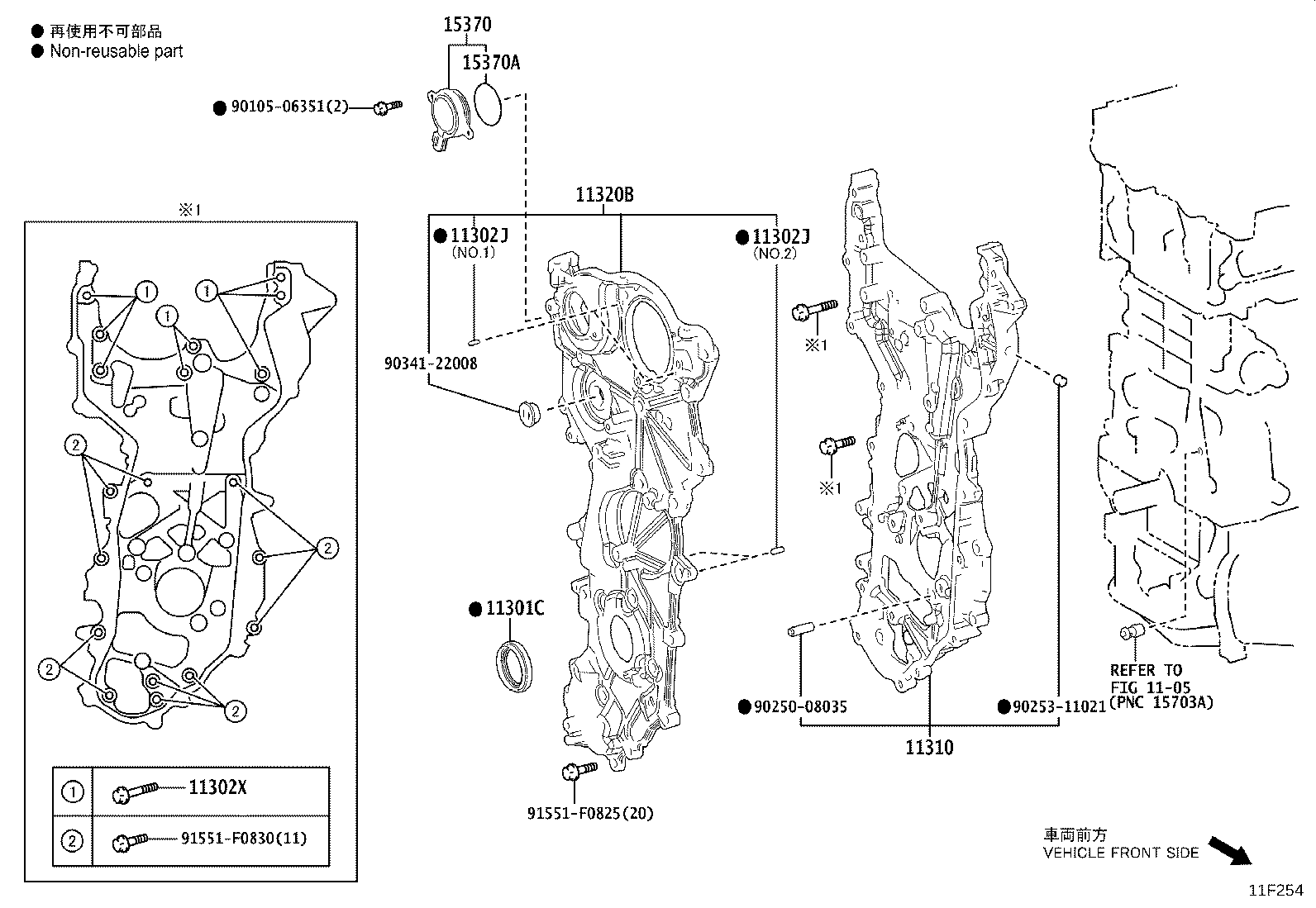

Figure 11D801B 11D801B 2018-06 → — Figure 11D799B 11D799B 2018-06 → — Figure 11F254 11F254 2018-06 → — Figure 11D678D 11D678D 2018-06 → — Figure 11E412A 11E412A 2019-07 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11301P O Ring, Crank Position Sensor
11302J Pin, Straight(FOR TIMING CHAIN COVER)
11302X Bolt, Flange
11310 Cover Assy, Timing Chain
11320B Cover Assy, Timing Chain, NO.2
11323C Cover, Timing Chain, NO.3
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11336A Insulator, Timing Gear Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11496A Gasket, Oil Hole Cover
12602C Cover, Engine, NO.2
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
15370B Solenoid Assy, Cam Timing Oil Control, RH
15370C Solenoid Assy, Cam Timing Oil Control, LH
15370D Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370E Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
15370G Bolt(FOR CAM TIMING OIL CONTROL SOLENOID RH)
15370H Bolt(FOR CAM TIMING OIL CONTROL SOLENOID LH)
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
