Factory parts data · Europe

Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

9 part groups · 4 illustrations

Illustrations

Figure 153009A

153009A 2018-06 → —

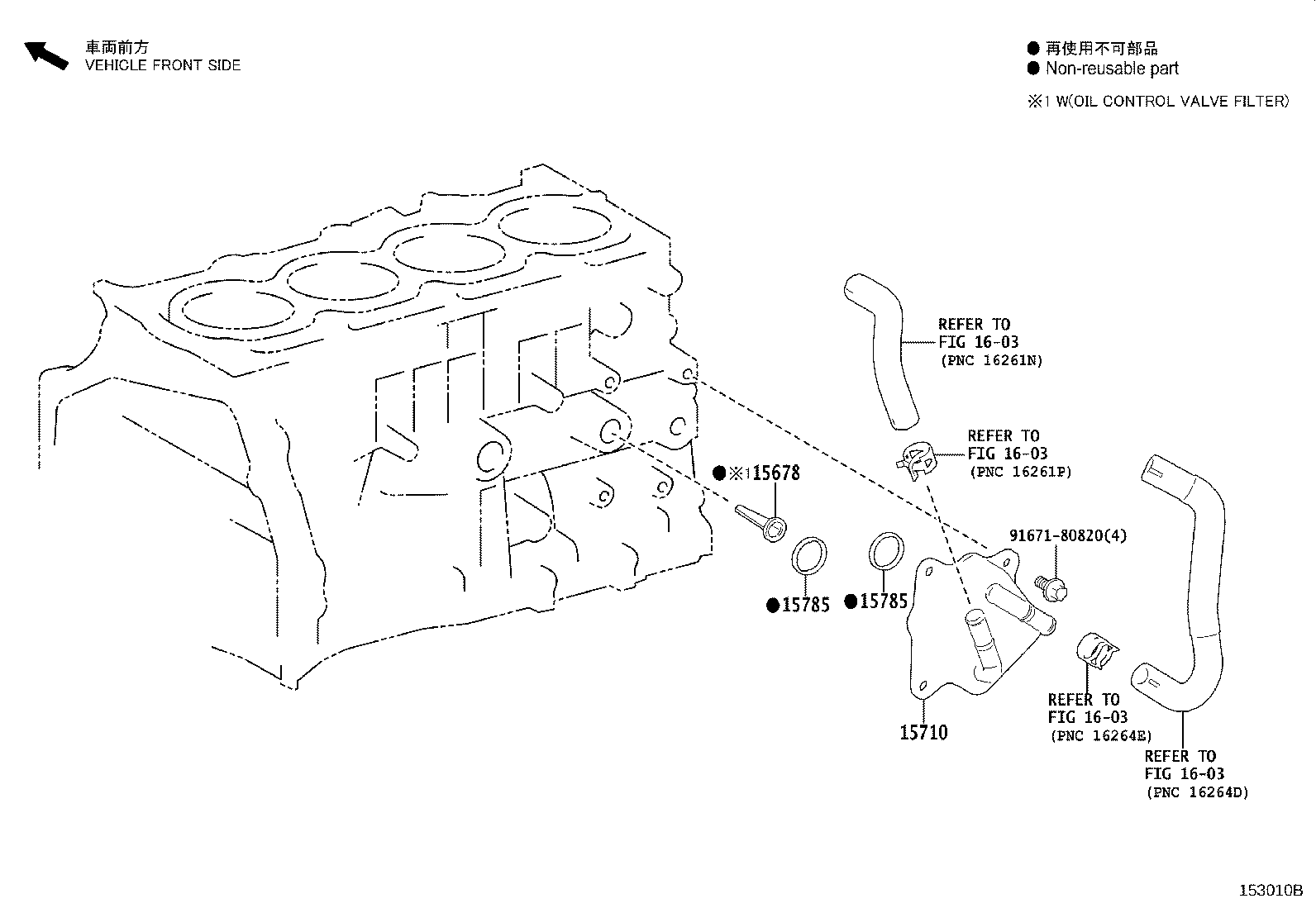

Figure 153010B

153010B 2018-06 → —

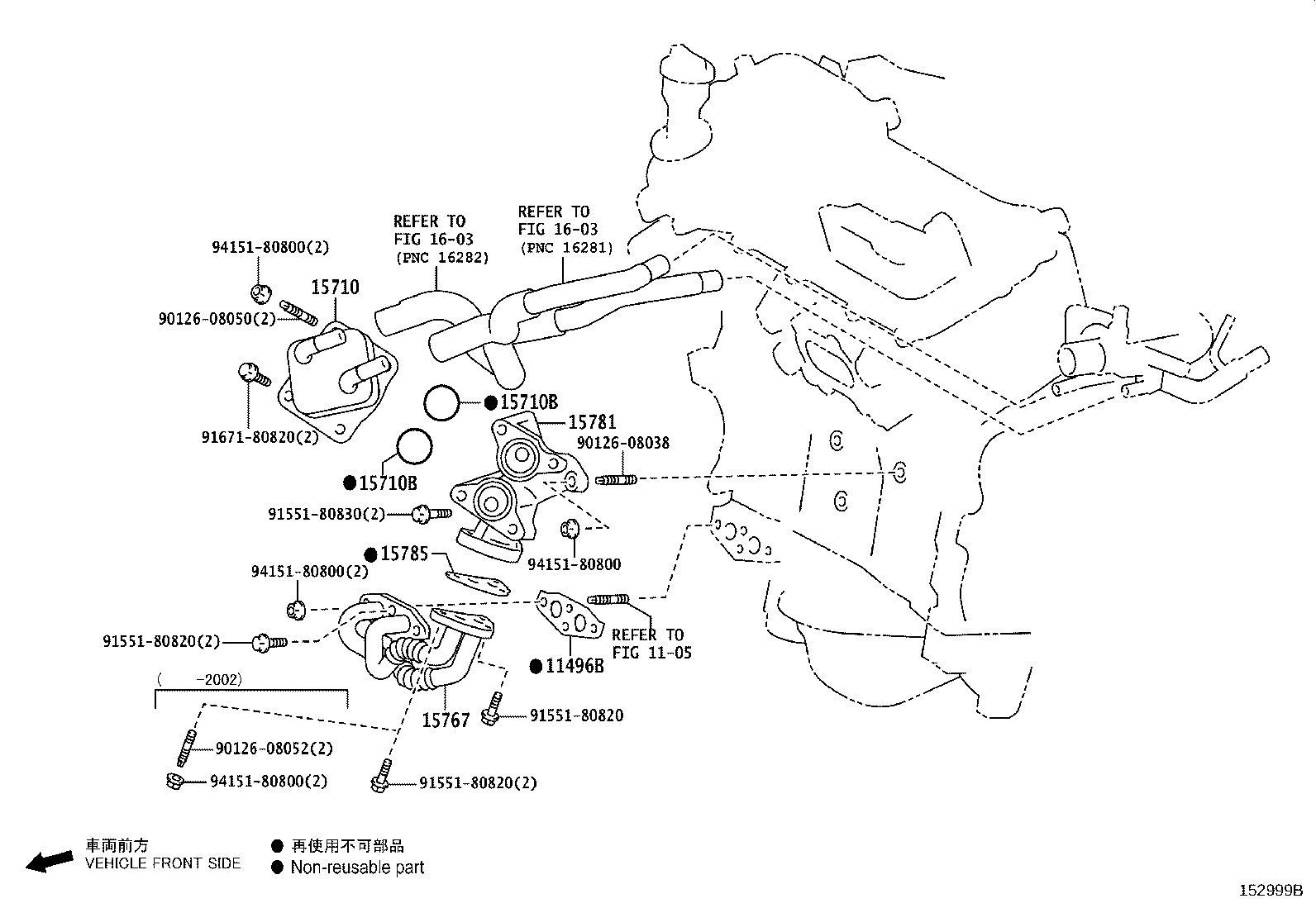

Figure 152999B

152999B 2018-06 → —

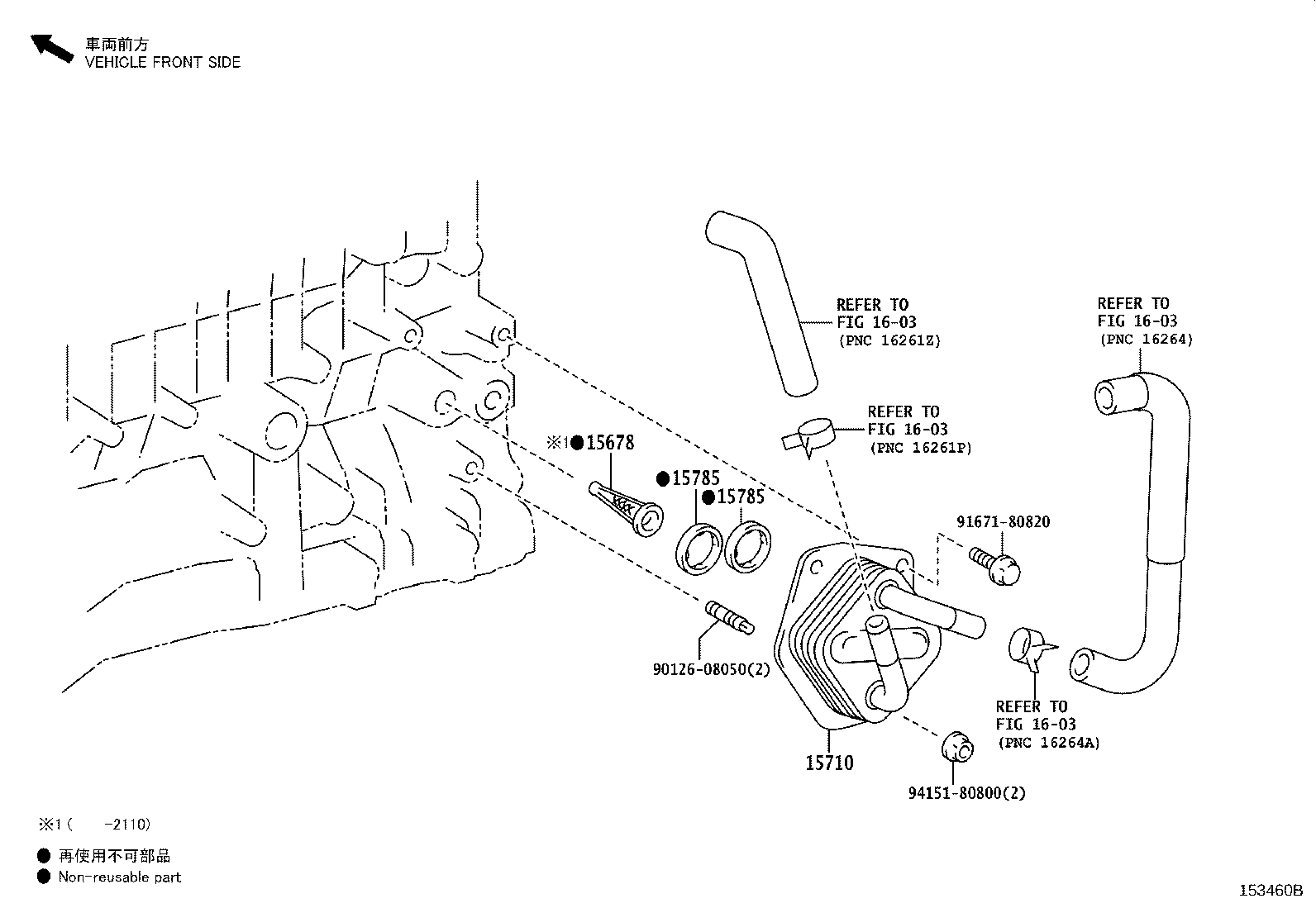

Figure 153460B

153460B 2021-08 → —

Part groups

PNC	Description
11496B	Gasket, Oil Hole Cover
15678	Filter, Oil Control Valve
15695	Bolt, Oil Cooler Union
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15725	Gasket, Oil Cooler Cover
15767	Pipe, Oil Cooler
15781	Bracket, Oil Cooler, NO.1
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
