Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

16 part groups · 5 illustrations

Illustrations

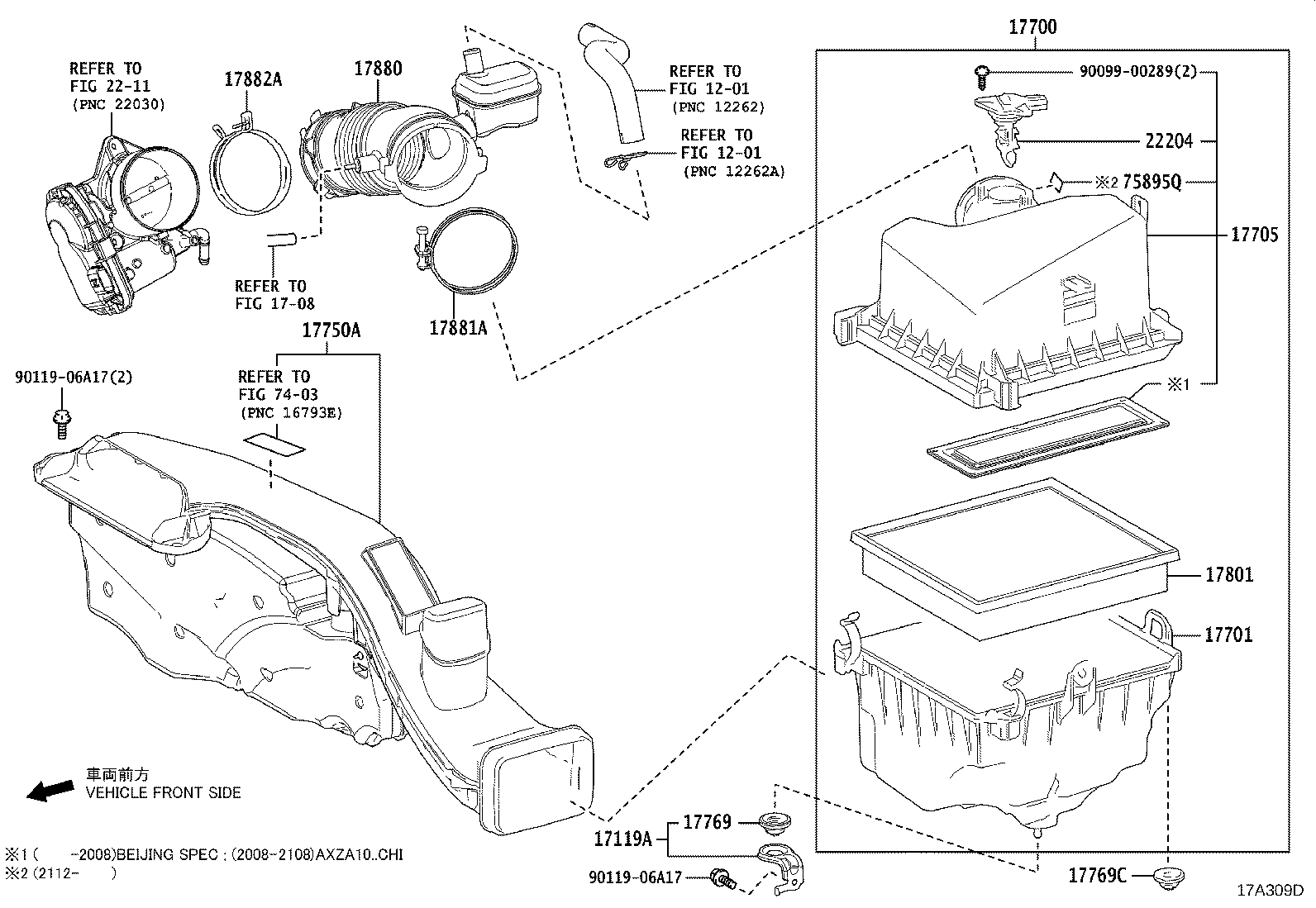

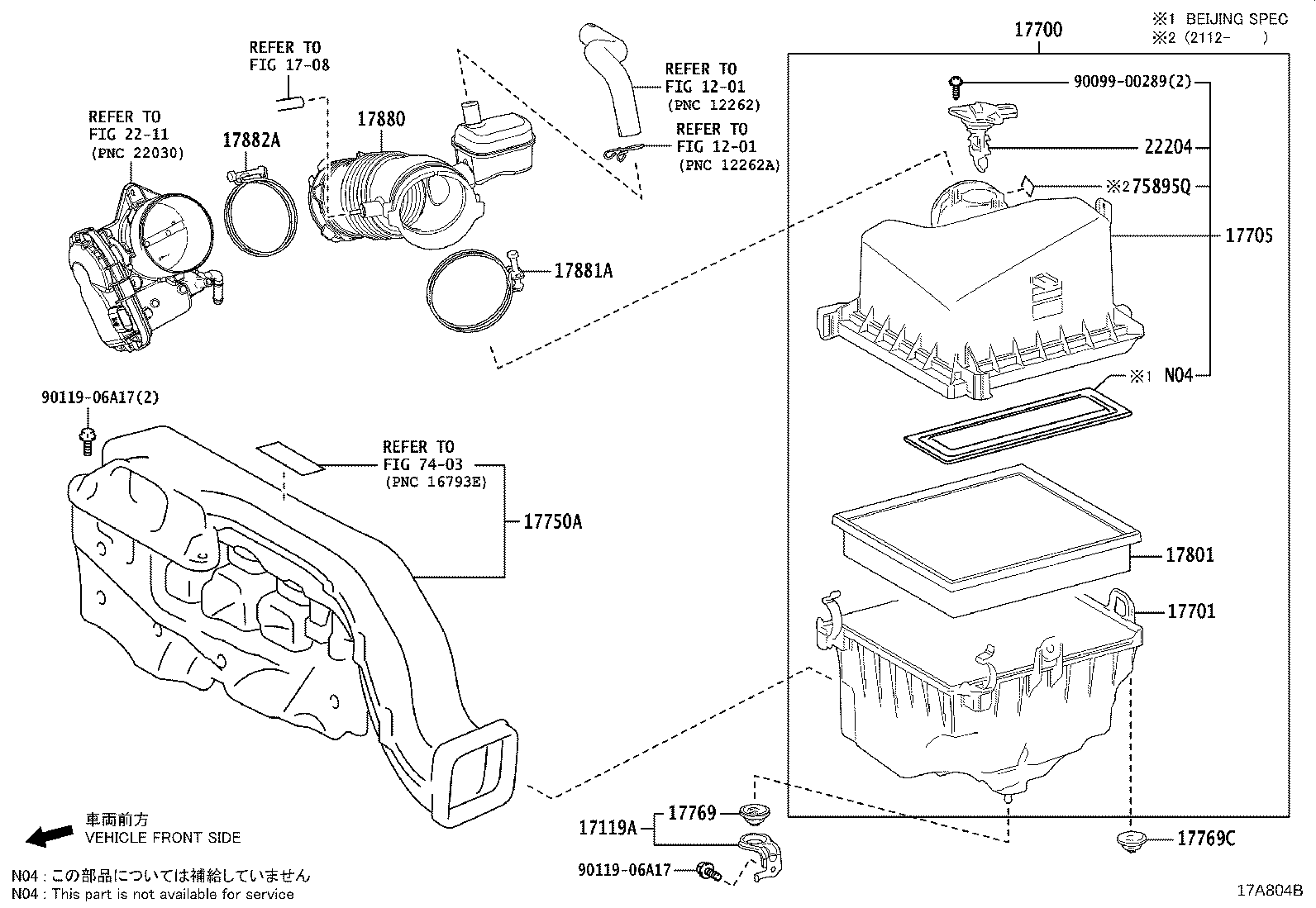

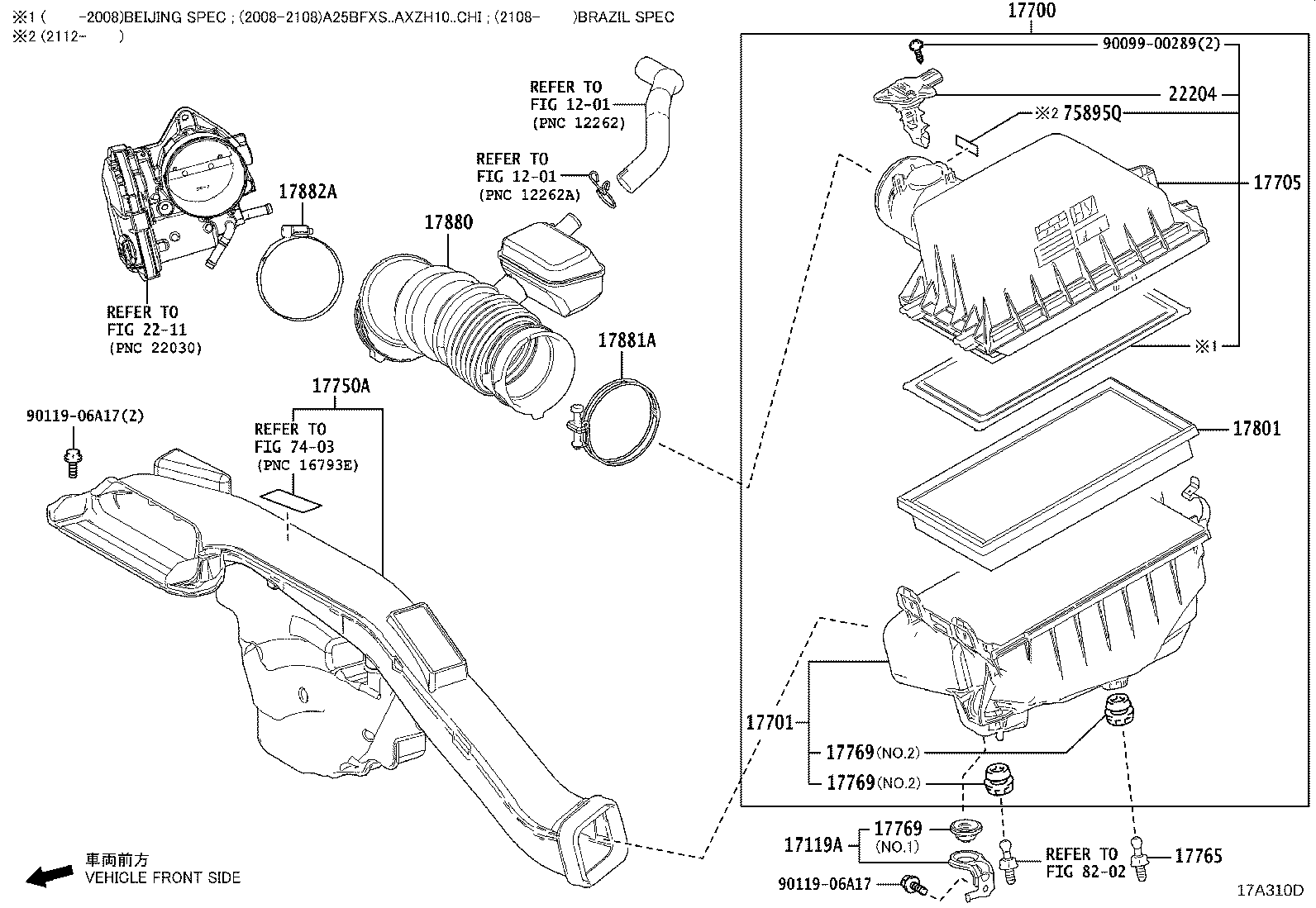

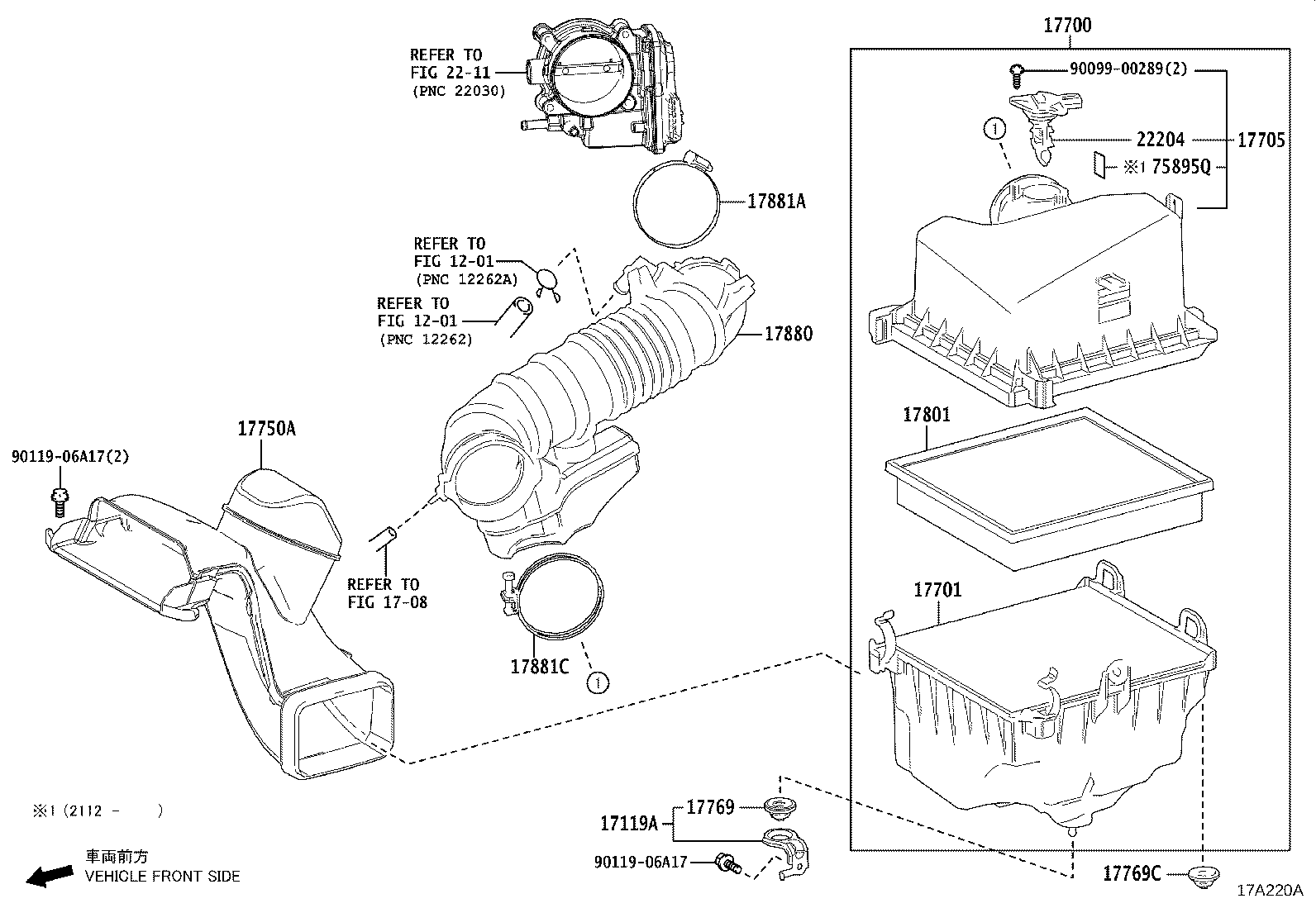

Figure 17A313 17A313 2018-06 → — Figure 17A309D 17A309D 2018-06 → — Figure 17A310D 17A310D 2018-07 → — Figure 17A220B 17A220B 2018-06 → — Figure 17A804B 17A804B 2019-07 → —

Part groups

PNCDescription
17119A Bracket, Air Cleaner
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17750A Inlet Assy, Air Cleaner
17765 Stay, Air Cleaner, NO.1
17769 Support, Air Cleaner
17769C Support, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
22204 Meter Sub-assy, Intake Air Flow
75895Q Tape, Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
