Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 5 illustrations

Illustrations

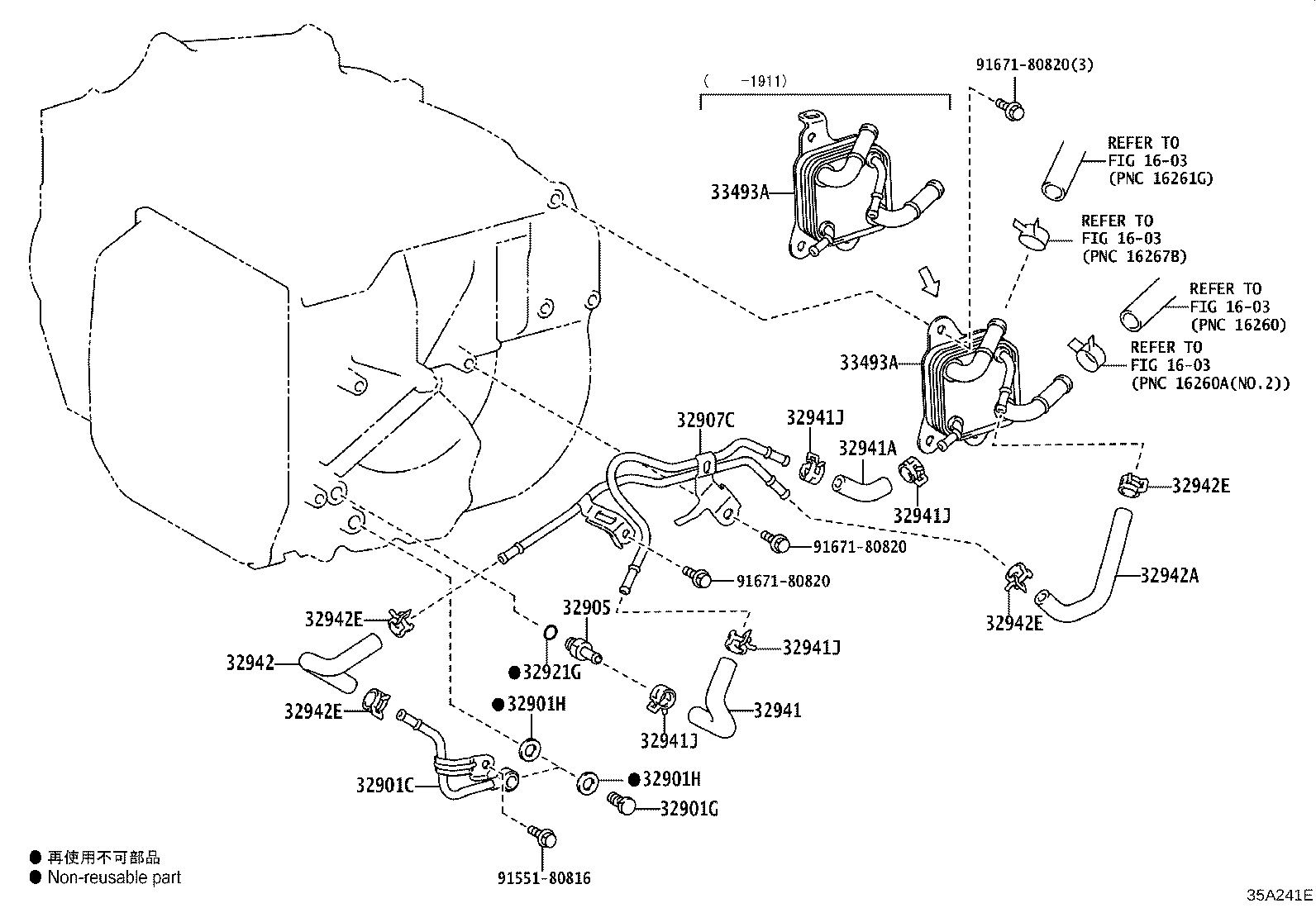

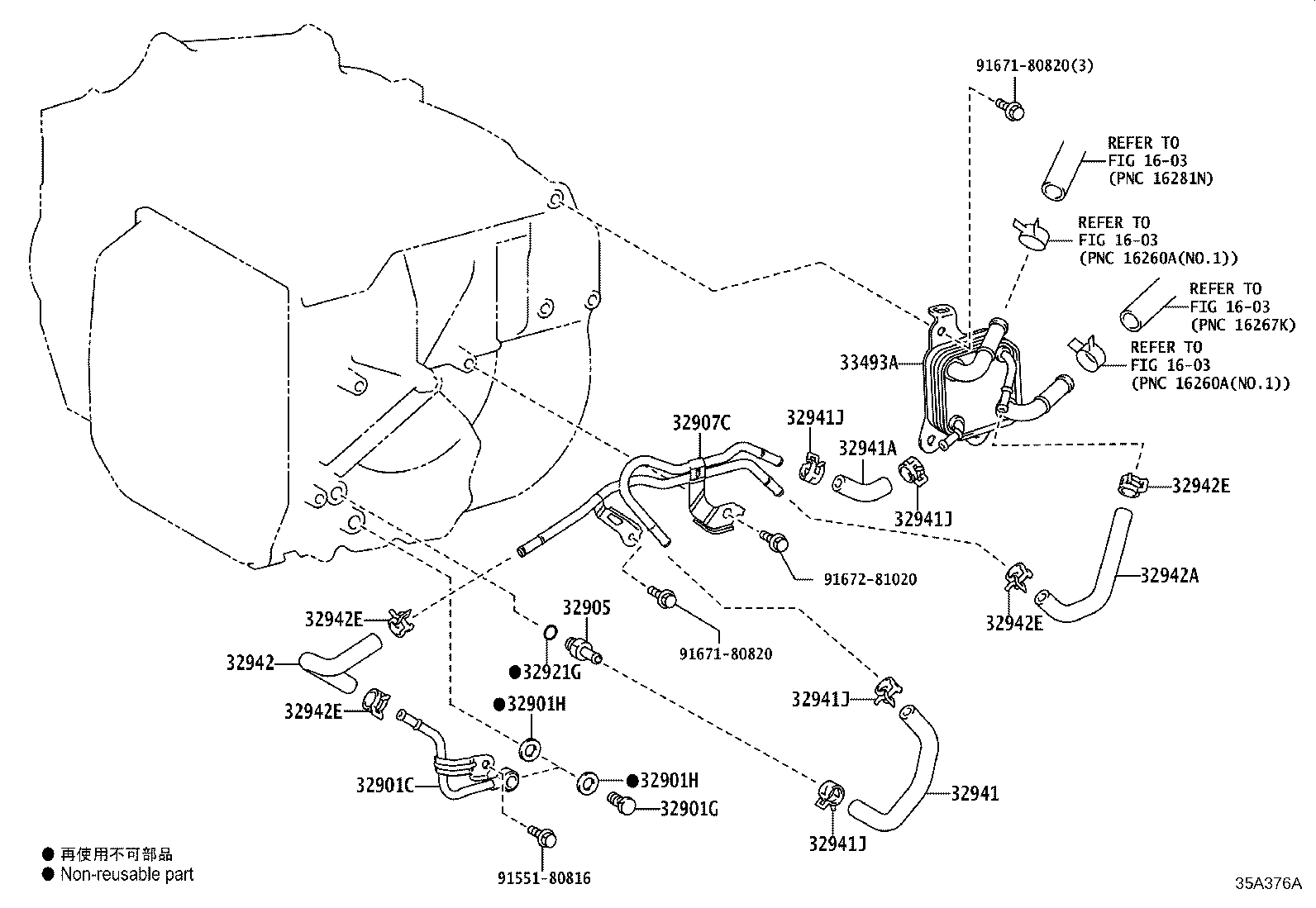

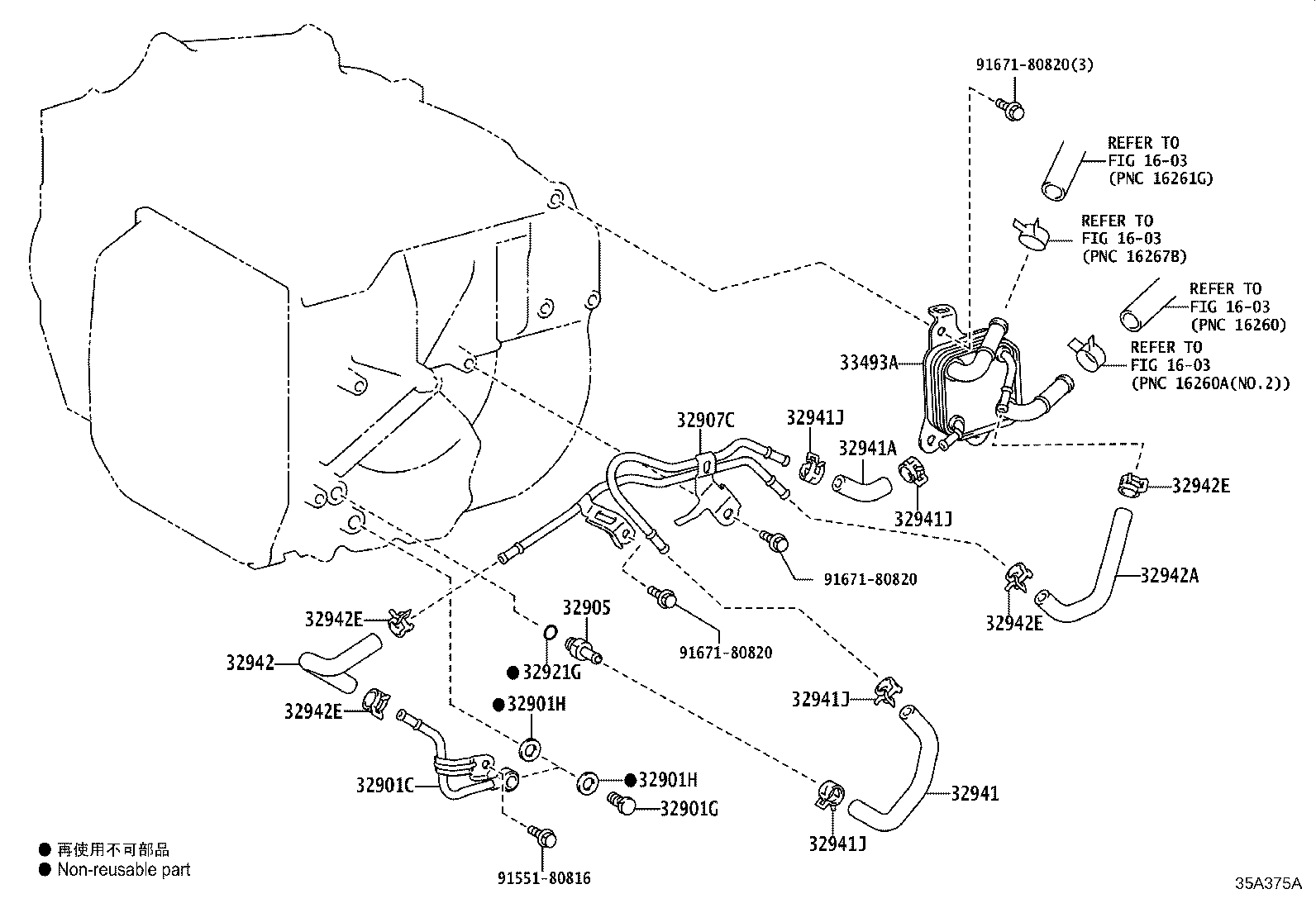

Figure 35A240B 35A240B 2018-06 → — Figure 35A375A 35A375A 2018-06 → 2019-01 Figure 35A241E 35A241E 2019-01 → — Figure 35A376A 35A376A 2018-06 → 2019-01 Figure 35A239E 35A239E 2019-01 → —

Part groups

PNCDescription
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32905 Tube Sub-assy, Oil Cooler Outlet, NO.1
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921X Union OR Elbow, Oil Cooler Inlet
32930E Hose Assy, Transmission Oil Cooler, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
