Toyota Lexus ES350/300H/2##

2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

17 part groups · 4 illustrations

Illustrations

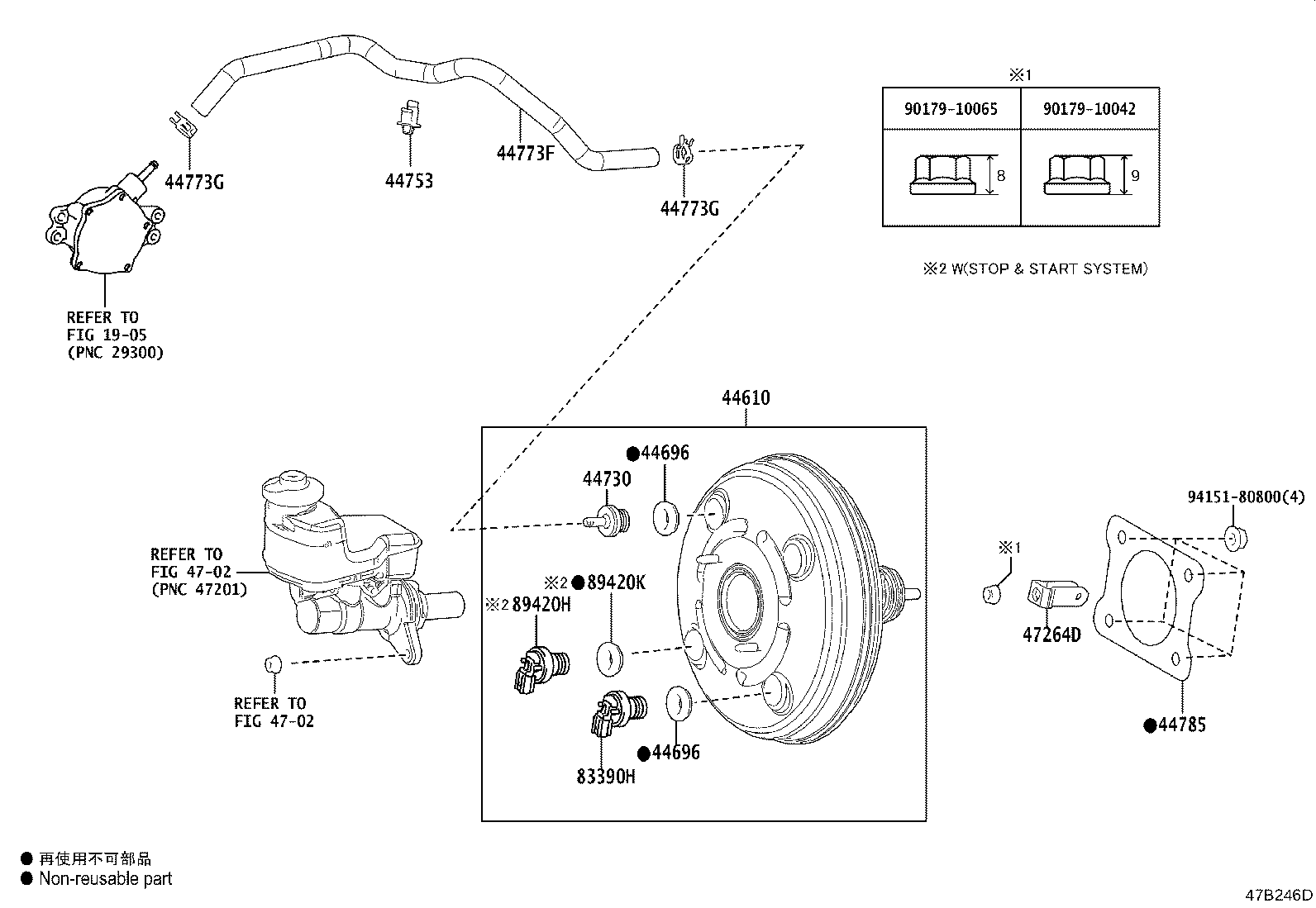

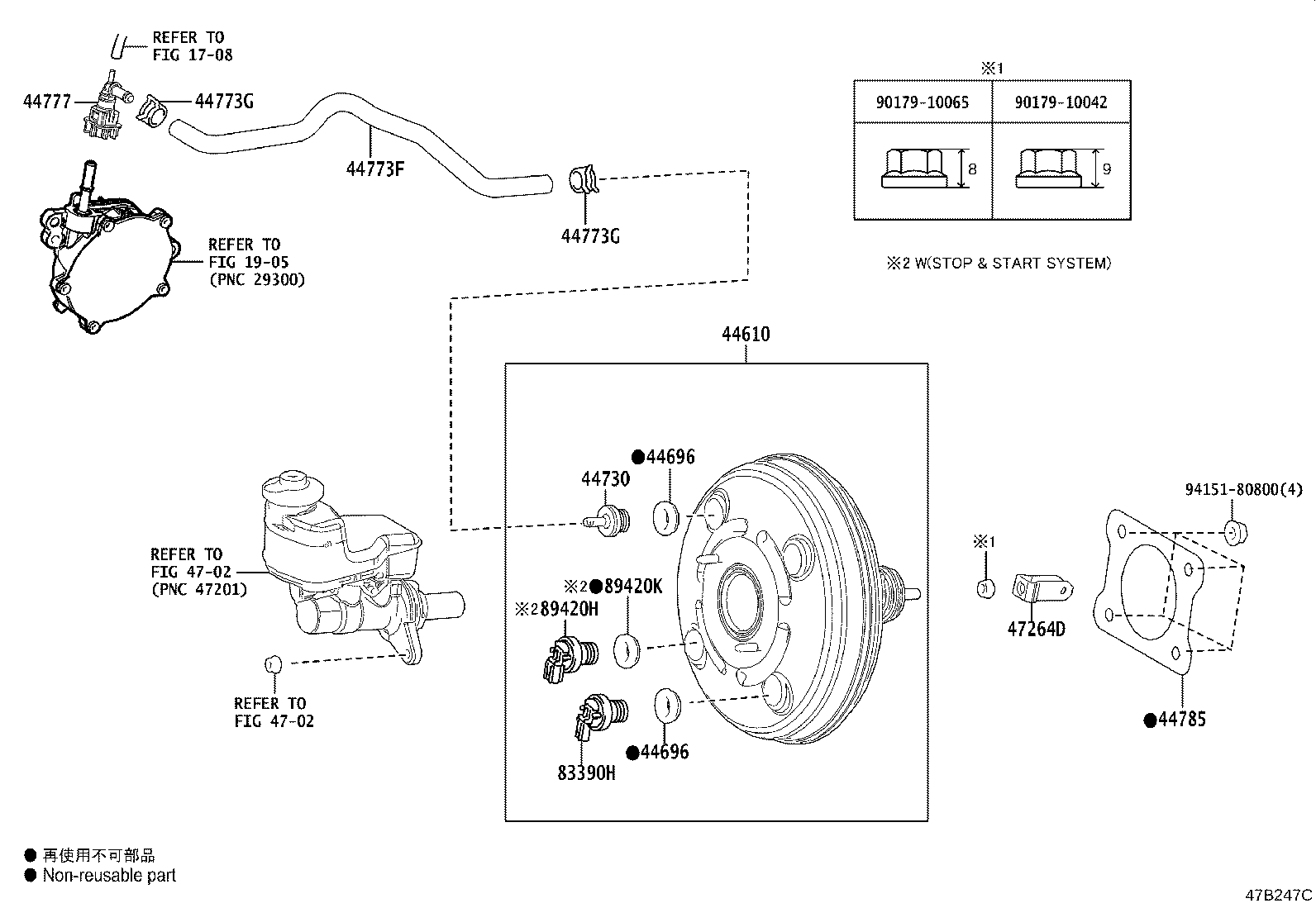

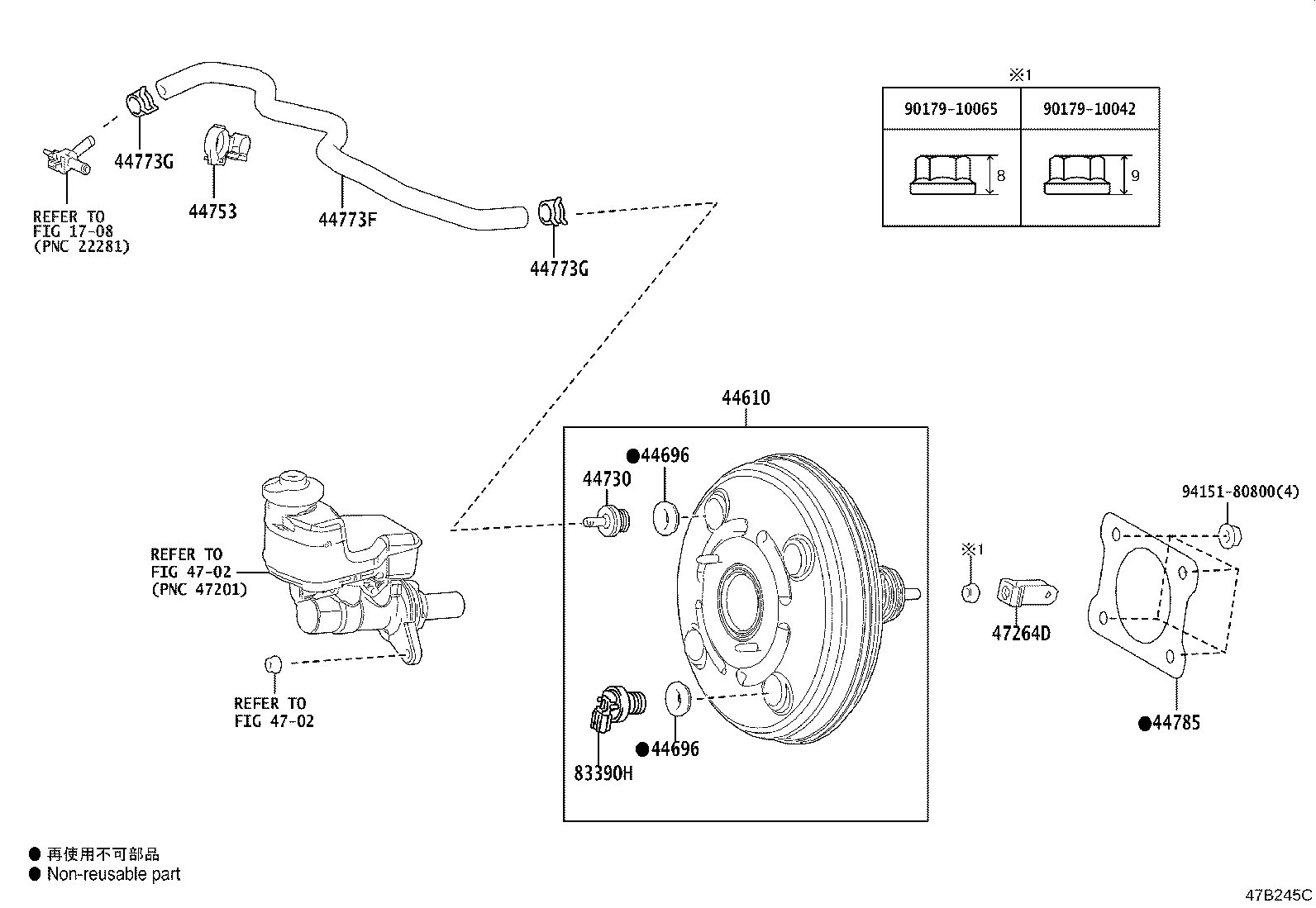

Figure 47B249C 47B249C 2018-06 → — Figure 47B247C 47B247C 2018-06 → — Figure 47B246D 47B246D 2018-06 → — Figure 47B245C 47B245C 2018-06 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44753 Clamp, Vacuum Reservoir, NO.2
44763A Tube, Hose TO Hose, NO.1
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44777 Connector, Vacuum Hose, NO.1
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
83390H Switch Assy, Vacuum Warning
89420H Sensor Assy, Vacuum
89420K Grommet, Vacuum Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
