Toyota Lexus ES350/300H/2##
2018-06 → present · chassis ASZ10,AXZA10,AXZH10,GSZ10,MXZA10 · catalogue 2822A0 · Europe
Supported model
Data version 2021-09

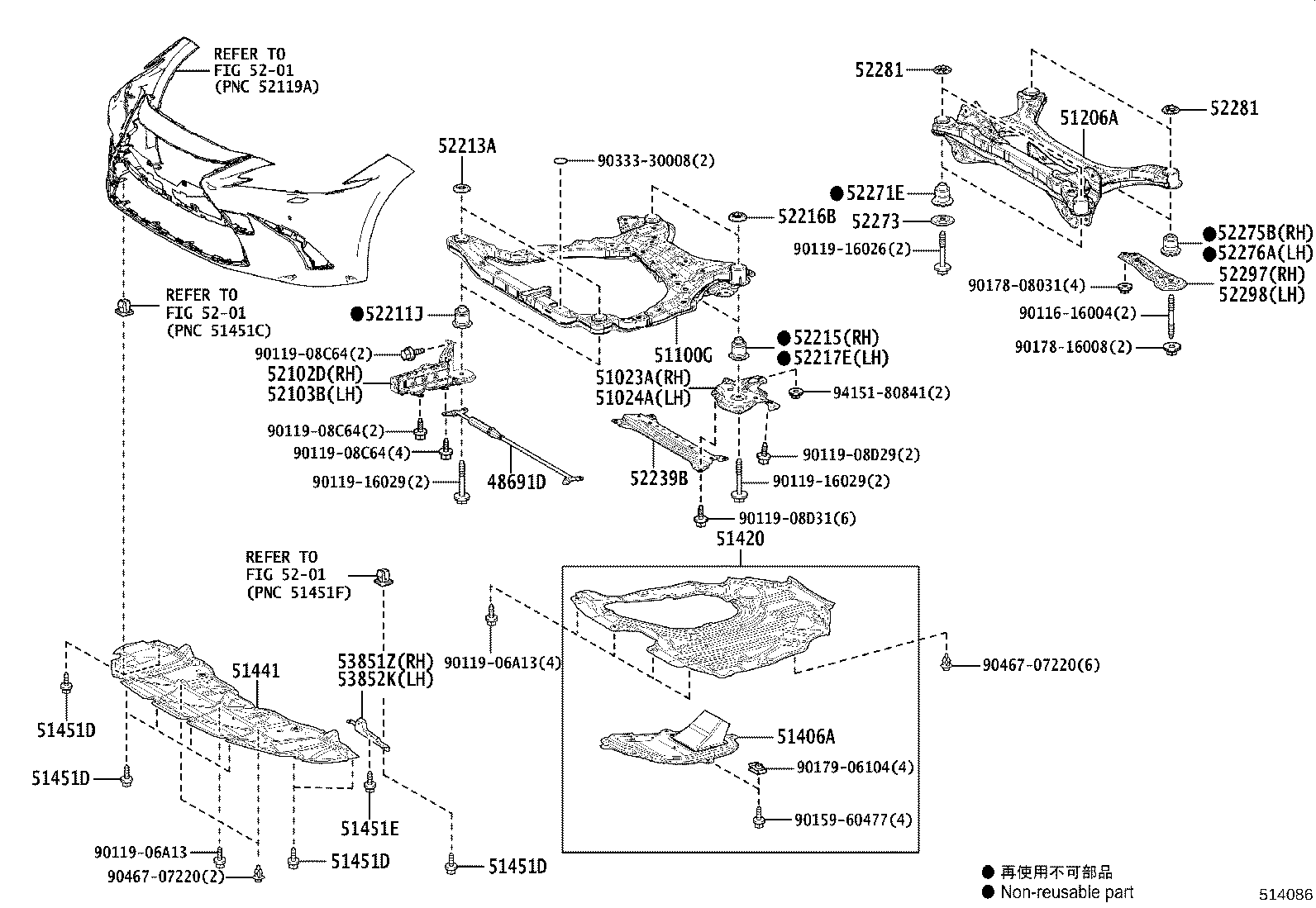

Suspension Crossmember & Under Cover
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48691D | Damper, Suspension Tower |
| 51023A | Bracket Sub-assy, Front Suspension Member, RH |
| 51024A | Bracket Sub-assy, Front Suspension Member, LH |
| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51227B | Damper, Front Suspension Member Dynamic |
| 51406A | Cover Sub-assy, Engine Under, NO.2 |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51442 | Cover, Engine Under, NO.2 |
| 51443B | Cover, Engine Under, NO.3 |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 52102D | Extension Sub-assy, Front Bumper, RH |
| 52103B | Extension Sub-assy, Front Bumper, LH |
| 52211J | Cushion, Front Suspension Member Body Mounting, Front |
| 52213A | Stopper, Front Suspension Member Body Mounting, Front |
| 52215 | Cushion, Front Suspension Member Body Mounting, Rear |
| 52216B | Stopper, Front Suspension Member Body Mounting, Rear |
| 52217E | Cushion, Front Suspension Member Body Mounting, Rear LH |
| 52239B | Plate, Body Mounting |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52281 | Cushion, Differential Support Member |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
| 52298 | Brace, Rear Suspension Member, Rear Lower LH |
| 53851Z | Pad, Front Wheel Opening Extension, RH |
| 53852K | Pad, Front Wheel Opening Extension, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
